A flux coating is a layer of a chemical which acts as a cleaning agent, a purifying agent or a flowing agent. The coating is used on electric welding rods and serves several functions. It protects the weld pool and solid metal from atmospheric contamination and helps in removing impurities from the weld pool.

Why electrodes are coated with flux?

The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.

Why is electrode coated in welding?

Electrode coatings should provide gas shielding for the arc, easy striking and arc stability, a protective slag, good weld shape, and most important of all a gas shield consuming the surrounding oxygen and protecting the molten weld metal.

What is the purpose of flux on a welding rod?

It is commonly used in metal joining and metallurgy. It is a material used to promote the fusion of metals and is employed in welding. The primary purpose of weld flux is to prevent oxidation of the base and filler materials during the welding process.

Why welding electrodes are coated with flux Mcq?

Explanation: The electrode is coated with a flux in shielded metal arc welding. Heat from electric current causes the combustion and decomposition of electrode. This creates a gaseous shield to protect the electrode, metal and molten pool from atmospheric contamination due to oxidation.

Why is flux coated on the electrode of manual metal arc MMA welding process?

MMA welding (flux-coated electrode) Under the intense heat of the arc temperature (2700–5500°C), a small area of the base metal is brought to the melting point. … A flux coating on the electrode provides a gaseous shielding against oxidation.

Why is electrode coated with flux in shielded metal arc welding?

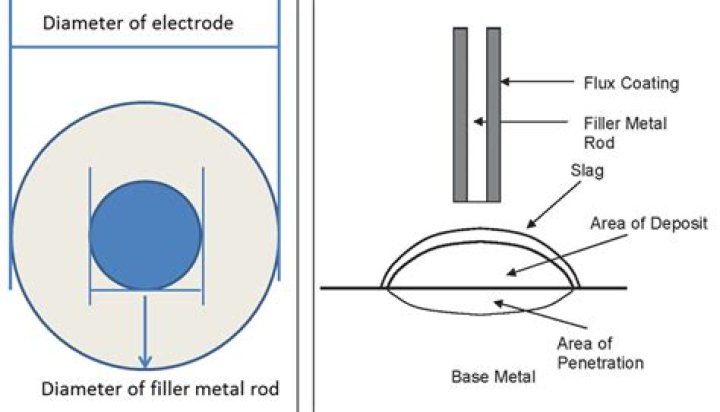

Shielded metal arc welding electrodes have a flux coating. This flux coating is used to protect the molten weld metal from the atmosphere and oxidation. This is necessary because no external shielding gas is used for this welding process. When the flux coating is deposited into the weld, it resurfaces as slag.

What are three purposes of flux?

In soldering of metals, flux serves a threefold purpose: it removes any oxidized metal from the surfaces to be soldered, seals out air thus preventing further oxidation, and by facilitating amalgamation improves wetting characteristics of the liquid solder.

What is the purpose of flux and why it is important?

The main purpose of the flux is to prepare the metal surfaces for soldering by cleaning and removing any oxides and impurities. Oxides are formed when metal is exposed to air and may prevent the formation of good solder joints.

What is flux and explain its purpose?

Flux is a chemical purifying agent, flowing agent or cleaning agent. Most commonly, it is used in metal joining and metallurgy. Some examples of flux include: Ammonium chloride. Zinc chloride.

Article first time published on

What are the function of coated electrodes?

Shielding of molten metal – Electrode coating produces shield gas such as carbon dioxide under heat, which can shield molten metal from atmospheric oxygen, nitrogen and hydrogen. This shielding is necessary to ensure no gas pockets in welding and then avoids contamination of the weld joint.

What is meant by electrode coating?

[′kōd·əd i′lek‚trōd] (metallurgy) A wire covered with metal oxides and silicates and used as a filler-metal electrode in arc welding. Also known as covered electrode.

Why coated electrode is normally recommended?

Heavy-coated electrodes are primarily used to reduce the gas shield around your welding arc. This prevents the contamination of your weld metal by atmospheric nitrogen and oxygen. The coating on shielded arc electrodes also reduces the attractive forces between the wire and molten metal.

What is the major function of the coating on an arc welding electrode Mcq?

A flux coating is a layer of a chemical which acts as a cleaning agent, a purifying agent or a flowing agent. The coating is used on electric welding rods and serves several functions. It protects the weld pool and solid metal from atmospheric contamination and helps in removing impurities from the weld pool.

What is the purpose of cellulosic electrode in arc welding process Mcq?

Cellulosic electrodes: produce a gas shield high in hydrogen raising the arc voltage. Deep penetration / fusion characteristics enables welding at high speed without risk of lack of fusion.

Why is welding shielded?

Why Are Shielding Gases Important for Welding? Shielding are mainly used to protect the molten metal from the contamination and oxidation caused by these harmful gases in the atmosphere: Oxygen. Carbon dioxide.

Which welding process uses coated electrode?

Shielded metal arc welding (SMAW), also known as manual metal arc (MMA) welding or informally as stick welding, is a manual arc welding process that uses a consumable electrode coated in flux to lay the weld.

What are the electrodes used in arc welding made of what is electrode coating and why are they provided?

The electrode coating provides: Arc shielding when the calcium carbonate (CACO3) in the coating decomposes to CAO and CO2 under arc heat. The primary source of the slag system, which supports the weld puddle and helps remove impurities from the molten metal weld deposit.

How does flux coating prevent oxidation in manual metal arc welding?

Welding flux is a combination of carbonate and silicate materials used in welding processes to shield the weld from atmospheric gases. When the heat of the weld zone reaches the flux, the flux melts and outgasses. The gases produced push the atmospheric gas back, preventing oxidation (and reactions with nitrogen).

What is the difference between MMA and arc welding?

Manual metal arc welding (MMA or MMAW), also known as shielded metal arc welding (SMAW), flux shielded arc welding or stick welding, is a process where the arc is struck between an electrode flux coated metal rod and the work piece. Both the rod and the surface of the work piece melt to create a weld.

What is the difference between MIG and MMA welding?

The basic feature of MIG/MAG welders is the shielding gas connection. … MMA welding machines do not require such a connection, because the shield against external factors is the gas released during the melting of the coated electrode used in this method. The second difference is the welding gun itself.

What is the importance of flux in oxy acetylene welding?

The purpose of the flux is to remove oxides from the base material and to prevent oxidation during the heating process, thus promoting the free flow of the brazing filler metal.

What makes a good flux?

A good flux spreads itself on the metal surface A flux that spreads itself on the surface properly will look flatter and cover more surface area. This is known as wetting to the surface. A flux that doesn’t wet to the surface will stay where you put it and not clean any other areas.

What are the types of flux coating?

• Rutile electrode. Rutile electrode coating is made from titanium oxide. …
• Basic flux. …
• Cellulose electrode coating. …
• Iron oxide coating.

What are the types of electrode coating?

As far as electrode coating, the three types are cellulose, rutile, and basic. However, there are more than three different types of electrodes. They are not all interchangeable. E6010, for example, is used for the root pass in pipe applications.

Is flux scalar or vector?

For transport phenomena, flux is a vector quantity, describing the magnitude and direction of the flow of a substance or property. In vector calculus flux is a scalar quantity, defined as the surface integral of the perpendicular component of a vector field over a surface.

How does flux adhere to a welding rod?

As the flux ingredients burn in the welding arc, they release shielding gas to protect the molten weld pool from atmospheric impurities. When the weld pool cools, the flux forms slag to protect the weld metal from oxidation and prevent porosity in the weld bead.

What is the purpose of flux Why is it not needed in gas tungsten arc welding?

Heat from the arc melts the edges of the two workpieces and the filler rod to create the molten pool, which after cooling forms the weld. Because of the protective shielding of the weld area by the inert gas, a flux is not required for this process.
