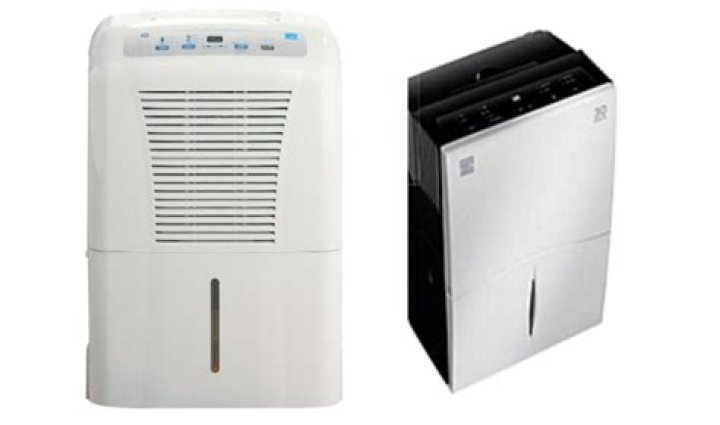

Who made Kenmore dehumidifiers?
Sarah Marsh Who made Kenmore dehumidifiers?
Sears dehumidifiers are not manufactured by Sears which contracts this work to major manufacturers, which have included Electrolux (Frigidaire), LG Electronics and Winix Inc., all well known brands in the market.
What does EC mean on a Kenmore dehumidifier?
Ambient temperature error
EC – Ambient temperature error. The environment where the unit is operating is either too cold or too warm. Make sure the ambient temperature is suitable for the unit (41°F – 95°F).
Can dehumidifier drain up?
Drainage for a built-in pump dehumidifier is quite easy. All you need to do is connect the dehumidifier with a hose and let the built-in pump drain out the water through the hose, automatically, out of the window, into a drain hole, or sink.
How do you fix the EC code on a dehumidifier?
My dehumidifier is displaying an EC code. What can I do?
- Check that the filter in the unit is clean.
- Check that the room temperature is above 41 degrees.
- Check that the humidity isn’t set too low, recommended humidity is 45~50%
- Make sure that the unit has plenty of space all around to allow for sufficient air circulation.
What does E3 mean on a dehumidifier?
humidity sensor Requires
Haier – Dehumidifier Displaying an Error Code
| Code | Description/Reason | Solution |
|---|---|---|
| E3 | Indicates a problem with the humidity sensor | Requires service |
Where are the screws on a Kenmore dehumidifier?
Remove the 2 screws at the bottom of the front grille that secure it to the frame. Lift the front grille carefully up and off of the front of the frame and set the front grille down in front of the dehumidifier. Disconnect the thermistor wire harness from the electronic control board.
How do you remove air filter from Kenmore dehumidifier?
Unplug the dehumidifier power cord from the wall outlet to disconnect electrical power. Pull the water collection bucket out of the front of the dehumidifier case. Pull the air filter out of the front grille. Remove the 2 screws at the bottom of the front grille that secure it to the frame.
What does the humidistat on a Kenmore dehumidifier do?
Humidistat. The dehumidifier humidistat is a sensor that detects the water vapor or percent of humidity in the room. The humidistat provides input to the dehumidifier’s electronic control board through a wire harness connection. Thermistor.
What is the Electronic Control Board on a Kenmore dehumidifier?
Electronic control board. The dehumidifier electronic control board controls the major electro-mechanical components in the dehumidifier. The electronic control board monitors input from the humidistat and activates the compressor to dehumidify the space when humidity exceeds the level the user sets.
