Looking at the receptacle itself, the hot side is the side of the outlet the thinner prong plugs into. The thin prong is the hot wire, and the thick prong is the neutral wire.

Which is the hot side of an outlet?

Looking at the receptacle itself, the hot side is the side of the outlet the thinner prong plugs into. The thin prong is the hot wire, and the thick prong is the neutral wire.

Does it matter which side of outlet is black wire?

White (neutral) goes on the side allocated for the larger prong. Black (Hot) goes on the smaller prong side or white to silver screws, black to gold screws. Ground (bare wire) to green. … 5) Install wires: Hook the loops around the screws and tighten.

Which side is positive and negative on outlet?

The negative wire is ribbed. The positive wire is smooth. With light fixtures, you have three wires. The black wire is positive, the white wire negative, and the green wire ground.

Which side of a 2 prong plug is positive?

Because we use A/C current, prongs don’t have have a positive and negative. Instead, the two prongs have a ‘hot’ and ‘neutral’ side. The wider prong connects to the neutral wire and the smaller prong smaller prong is the hot side of the circuit.

Which side is hot on a 3 prong plug?

The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.

Which is hot and neutral on outlet?

Here’s a rundown of electrical wires: The black wire is the “hot” wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel.

Does it matter if you wire an outlet backwards?

This makes things like lamps and many appliances more safe to operate. But here’s the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work but the polarity will be backward. … The white (neutral) wire should be connected to the silver-colored terminal.

Which pin is positive on a plug?

If you are talking about an AC line plug, AC has neither a positive or a negative prong. In the US, the smaller prong is the hot or live one. The larger is return or neutral. The round is earth ground and it’s not always present.

What would happen if you wire an outlet backwards?

A device plugged into a receptacle with reversed polarity can remain energized even when turned off, which can short-circuit the device. Devices plugged into an outlet with reversed polarity may appear to work as usual but are unsafe and can shock you.

Article first time published on

Does it matter top or bottom outlet?

It is common practice to use either the lower or the upper screws. If you have multiple power leads coming in, the wires from one cable would normally be connected on the bottom (or top) screws, and the wires from the other cable on the other screws. It makes it easier if there is ever a problem.

Which prong on a plug is neutral?

The left slot is slightly larger than the right. The left slot is called “neutral,” the right slot is called “hot” and the hole below them is called “ground.” The prongs on a plug fit into these slots in the outlet. If you have read How Batteries Work, you know that electricity must flow in a circuit.

What happens if you mix up hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it’s usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.

Why are neutral and ground tied together?

If you touch the casing, and some real ground (like a water pipe) at the same time, you will close the circuit and carry all of the current. So, connecting the ground to neutral totally defeats the purpose of having a ground, and actually makes it more dangerous than not having the ground at all.

Which side of an electric plug is hot the large or small prong?

In the U.S., the small prong is hot, the larger prong is Neutral and the round prong is Ground.

Is White neutral or live?

The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.

Which direction should electrical outlets be installed?

The electrical code allows outlets to be installed with the ground plug hole facing up, down or sideways. It’s up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.

How can I tell if my outlet is wired backwards?

Your electrician will be able to get into the wall and easily identify the situation. If the white wire is connected to where the hot wire should be, its wired backwards.

Can wiring an outlet wrong cause a fire?

Most electrical fires are caused by faulty electrical outlets (Receptacles) or worn out sockets that are not properly grounded. As outlets and switches get older, the wiring behind them wears as well, and wires are strung about that loosen overtime and could potentially break and cause a fire.

Why is there a hot and neutral wire?

The power wire that is grounded is called the “neutral” wire because it is not dangerous with respect to exposed metal parts or plumbing. The “hot” wire gets its name because it is dangerous. The grounding of the neutral wire is not related to the operation of electrical equipment but is required for reasons of safety.

What happens if you wire a switch wrong?

You could put the switch on the neutral wire and everything would work, but it would leave voltage potential to ground in the light when it is switched off. That makes it a bit hazardous for changing light bulbs. If you became an electrical path to ground through a wet floor or something you could get a shock.

What happens if you mix live and neutral?

If you swap live and neutral which are connected to a lamp, yes it will work fine. However, the switch on the lamp is connected on the Live side. So even though you have switched the lamp off, you have only broken the neutral return path and the light itself is still live.

Should the ground be up or down on an outlet?

The outlet should be oriented with the ground pin up because this pin is longer and the plastic around the plug is meatier, so it will help to keep the plug inserted in the outlet.

What side of a 110 plug is hot?

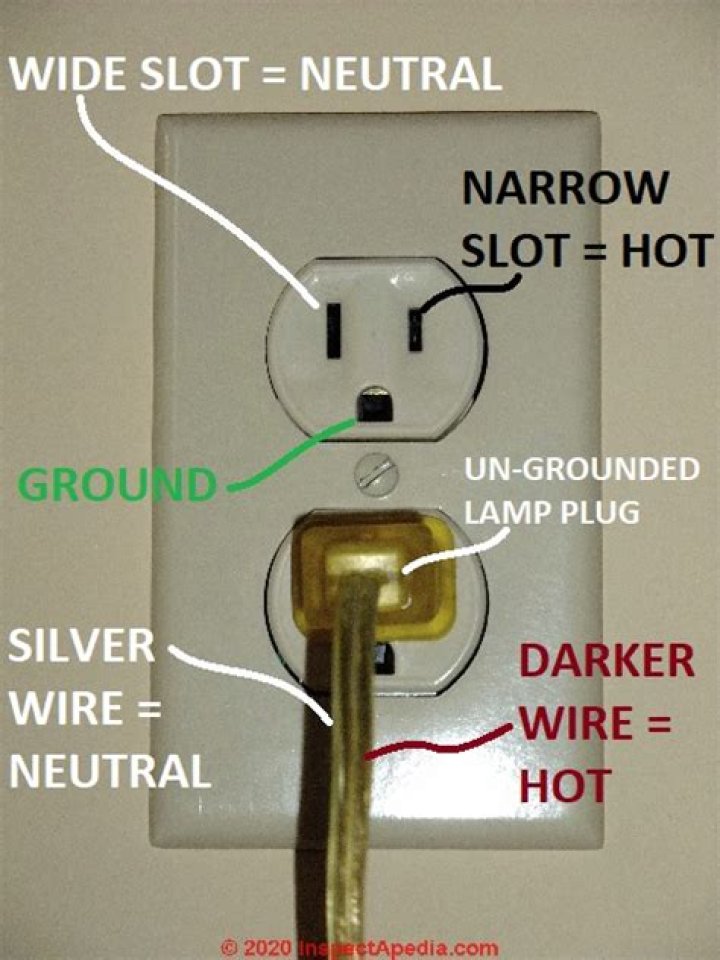

The wide flat slot on the upper left is neutral; the narrower flat slot on the upper right is hot (typically 110–125 V AC); the arch-shaped hole at the lower center is ground. If wired properly, neutral and ground should be at the same voltage— zero.

Why are there 2 screws on each side of an outlet?

One side of the receptacle has (2) brass screws and the other side has (2) silver screws. The hot side of the circuit (black wire) should be wired to the brass screws while the neutral side of the circuit (white wire) should be wired to the silver screws.

Why is there 3 prongs on a plug?

The standard 3-prong receptacle is called a grounding receptacle because it allows a grounding wire to be connected from the electrical circuit to the appliance. The grounding wire is connected to the third prong of the plug.

Which wire goes to which prong?

The black wire, which is hot and carries the electricity, goes to the golden brass screw. The white wire is neutral and hooks around the silver screw. The green wire goes to the ground screw.

How can you tell which wire is hot without a multimeter?

For example, get a socket and light bulb and attach a couple of wires to it, then touch one to the ground or neutral and another one wire to the test. If the lamp lights then it is live else then test the lamp on live wire like wall socket to make sure that it actually lights.

What happens if live and neutral are reversed in a light?

If the switch is put in the neutral line (like in your house) the switch and fuse comes in neutral line. In the switch OFF position the entire appliance will have 220V, touching any part will give you deadly shock. As per the rules, if live and neutral are reversed, Electricity board will not give power to your house.

How can you tell if a wire is white or black?

Identify the black positive wire on a ceiling light fixture. Recognize that the black wire is the positive one, the white wire is the negative one, and the green wire is the ground. You may see a copper wire instead of a green wire for the ground.
