They can be installed in a utility closet or utility room in the home, in an unvented attic, or in an insulated and air-sealed basement or crawlspace. If a system must be located in the garage, an insulated and air-sealed closet should be constructed to completely isolate the HVAC equipment from the garage.

Where should air handler be installed?

They can be installed in a utility closet or utility room in the home, in an unvented attic, or in an insulated and air-sealed basement or crawlspace. If a system must be located in the garage, an insulated and air-sealed closet should be constructed to completely isolate the HVAC equipment from the garage.

Can I relocate my air handler?

Relocation Must be Done by a Professional Even if you can handle many tasks around the home, never attempt to tackle HVAC relocation yourself. Only a licensed, qualified technician should ever relocate the equipment.

Does an air handler go inside or outside?

The air handler is always the inside component. It holds the fan that moves air around, and the evaporator coil that works in conjunction with the outside condenser to do the actual cooling.

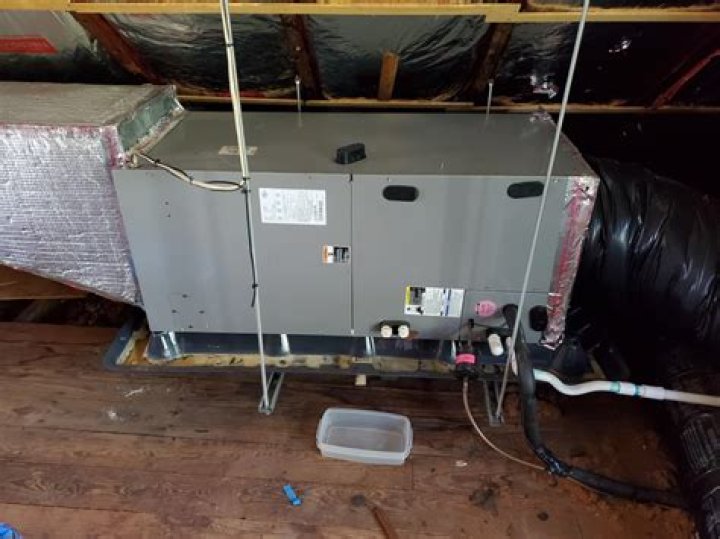

Should I put my air handler in the attic?

Reduced Energy Bills An additional benefit of having your AC handler in the attic is that it can lead to a reduction in your utility bills. Since it can cool the home more evenly, it won’t have to work as hard. This will lead to a reduction in energy bills.

Where should I put my split AC unit outside?

Correct location of outdoor unit For proper cooling, mount the indoor and outdoor units of split AC at location away from direct sunlight and water. Install the outdoor unit of split AC in open space so that there is no hindrance to the heat dissipated from the condenser.

Where are most HVAC units located?

The most common type of HVAC system is central air conditioning and heating. Here’s where the components are usually located: Ductwork. Ductwork is usually located in the attic, the basement, or in a dropped ceiling chase.

Is air handler same as furnace?

The difference between an air handler and a furnace is that a furnace creates and moves heat. An air handler moves air heated (or cooled) by another source. Air handlers and furnaces are heating and cooling appliances that look very much alike. Their function is similar too.

What is a residential air handler?

An air handler, or air handling unit, is the indoor part of an air-conditioning or heat pump system. Air handlers work much like furnaces in that they efficiently move air throughout the home. The main difference is that the air handlers only circulate heat when paired with a heat pump.

How much is an air handler unit?

New Air Handler$700 – $1,500Installation$1,200 – $1,800Remove/Dispose of Old Unit$300 – $500Total$2,200 – $3,800

Article first time published on

Do air handlers make noise?

Unusually noisy motors inside air handlers and furnaces make squealing, screeching, rattling, and/or banging noises when the equipment malfunctions. In most cases, these are inexpensive repairs—adding lubricant, tightening parts, and replacing belts.

Why is my air handler sweating in the attic?

If an air handler is in a garage, attic, crawlspace, or closet, it might experience less air flow and humid air. … Hot, humid air mixes with the cold internal air of the air handler by the cold metal of the unit causing condensation.

Can you put central air in a house with no ductwork?

While any form of installing central air in a house without ducts will require some cutting and modifications, using a high-velocity or mini-split system can provide a much less intrusive, more economical solution in many cases.

Can you put a mini split in the attic?

Putting your ductless mini split condenser in your attic is not recommended. … The mini split indoor units could still connect to the condenser, but the problem is where all that air will go. You see, heat rises. Thus, your home’s attic is likely the hottest space in the house, or at least one of them.

What is the disadvantage in having ducts in the ceiling?

Cons of ceiling vents Exposes HVAC system to unconditioned spaces – Attics tend to be dusty and prone to extreme temperatures, which can add wear-and-tear on the equipment and increase heat transfer loss.

What size air conditioner do I need for a 2400 square foot home?

The answer to the question, “what size AC unit for 2400 square feet?”, would be, is 60,000 BTUs or 5 Tons. It’s possible to fall between unit sizes, so if that’s the case with you, then you should choose the next higher size. That way, you can be sure that the AC unit can still cool a given area sufficiently.

What size AC unit do I need for a 2000 square foot home?

Home Sq FootageAir Conditioner Size (tons)600 – 1,000 square feet1.5 tons1,000 – 1,500 square feet2 tons1,500 – 2,000 square feet3 tons2,000 – 2,500 square feet4 tons

Should air conditioners be placed high or low?

In a 10 feet high room, a split type AC should be installed at 7 -8 feet for the best cooling performance. For a window type AC, the best height is 3-4 feet from the floor. If you are fixing the AC very close to the wall or in an airtight room it will trip due to high head pressure, as heat dissipation can’t happen.

How far can condenser be from air handler?

So, every condenser and air handler, whether it’s multi-zone or single zone, is going to have a limit. For the 27K, the total line set length can’t be more than 197 feet, which is really far. So, you should be good. However, you can’t have a single line set more than 75 feet between each air handler and the condenser.

What size air handler do I need?

Size your air handler. Size your air handler unit based on the size of your air condenser unit. If your air condenser unit needs to be four tons so must your air handler. You can put a larger air handler by one ton more, but for optimal performance they should match.

How many air handlers do I need?

Rule of thumb #1: One air handler per room Like we mentioned earlier, you’ll need a separate air handler for every room you need cooled. Note: A separate ductless air handler is not needed for small, half bathrooms or hallways. Usually, those rooms will get plenty of cool airflow via larger, nearby rooms.

How long should an air handler last?

Air conditioning units generally last around 15 years or so. If you want your air conditioning unit to live as long as possible, you want to get it maintained twice a year.

Do air handlers use gas?

An air handler does not contain a burner to heat air like a furnace does nor can it use natural gas or propane as a source to function. An air handler is also all electric and does not require venting any exhaust outside.

Does my house need an air handler?

An air handler most commonly works with a heat pump to circulate air throughout your home. If you’re searching for a traditional air conditioner or furnace, you won’t need an air handler as those systems have the internal parts needed to circulate air.

Does a gas furnace need an air handler?

Furnace. … If you have a furnace you probably don’t need to worry about an air handler. Air handlers tend to be used with heat pumps and help manage air flow throughout the building. Some units also provide backup heating and cooling elements to help out the heat pump.

What is the difference between an air conditioner and an air handler?

Air handlers are designed to move air around. That’s all that they do. They don’t heat up or cool down, they move air. Air conditioners, on the other hand, exist only to cool air by removing heat from the outdoor air.

What SEER rating should I buy?

There’s no magic SEER number. Anything over 13 is great. Because if you have an old 8 SEER system and replace it with a 16 SEER unit, you could significantly reduce the cost of cooling your home. Don’t forget to look at tax credits and manufacturer’s rebates that can bring the down the cost of a high SEER system.

Does an air handler have a fan?

Just like a furnace, air handlers contain a blower (fan), controls, and an evaporator coil that conditions and recirculates the air in your home. The air handler works with the outdoor unit (a condenser or heat pump) in a typical split-system by using refrigerant lines that connect the two systems.

Are air vents supposed to face up or down?

Aim it upwards. In homes with central AC, vents are typically on the floor pointing upward for the reason you mentioned. You want to displace the hot air up top and hopefully get a current flowing. Blowing to the floor will not give much incentive for upper air to flow.

Why is my air handler loud?

If a sudden loud rattle occurs, it could mean a small piece of debris got stuck in the outdoor air conditioner’s compressor fan. … The outdoor unit’s compressor has gone bad due to age or malfunction. The indoor unit’s blower motor is old or has malfunctioned. The indoor unit’s belt is worn or misaligned.

Why do I hear water dripping in my window air conditioner?

If you hear the sound of dripping water coming from your indoor unit, it likely means condensation is not draining properly. Moisture naturally builds up in your HVAC system and should drain out if it’s working correctly. A blocked drainage tube could be preventing condensation from properly draining.
