It is installed on the main water line. This is most commonly in the front flower bed, but it could also be behind an access panel in an inside wall. When the PRV goes bad, it can cause pressure and water flow issues, weird noises, or just start to leak.

Where should a pressure relief valve be installed?

Relief valves should be installed as close to the tank as possible and installed on the cold water line. Relief valves don’t have a lot of applications, but where they are used they serve an important purpose.

Can you install a PRV upside down?

It’s best to mount pressure relief valves (PRVs) in a vertical position, which means it should be upright and the spindle should be vertical. While you can mount it facing upside down, this is not recommended.

Where is the safety relief valve usually located?

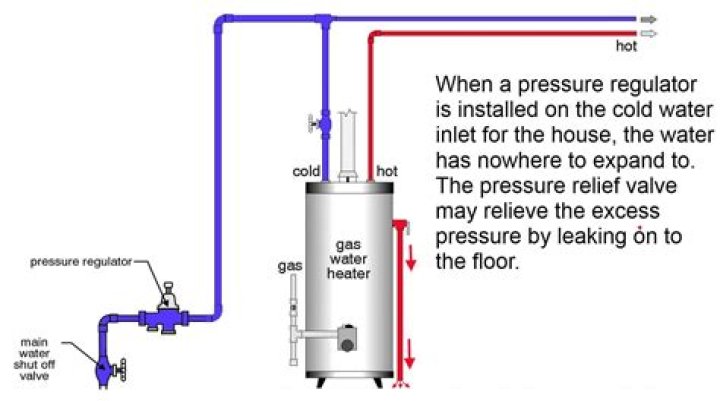

Where is the Water Heater Pressure Relief Valve? The T&P valve is usually located high on the side or on top of the tank. It’s connected to a pipe that runs down the length of the water heater and stops a few inches above the floor.

What is the difference between a safety valve and a relief valve?

Relief Valves are designed to control pressure in a system, most often in fluid or compressed air systems. These valves open in proportion to the increase in system pressure. … Unlike relief valves, safety valves open immediately and completely to avoid a disaster, rather than to control the pressure of a system.

How do I fix a leaking pressure relief valve?

Use a pipe wrench to unscrew the old pressure relief valve. Wrap Teflon tape around the threads of the new valve, and screw it in until tight, orienting the overflow pipe opening away from the tank. Reattach the relief valve drain pipe using Teflon tape on the threads.

Where is the water pressure reducing valve located in a hot water hydronic system?

the pressure relief valve should always be installed closest to the heating boiler so that it can respond to an overpressure in the heating system.

What does a water pressure reducing valve look like?

A pressure reducing valve usually resembles a bell or dome. As mentioned earlier, you’ll usually see it alongside a gauge. It may be built right into your water meter. In most cases, however, you’ll find the valve in the form of a separate device that lies after the meter within your home’s water supply chain.

Where is the water pressure regulator located in a home?

The pressure regulator is generally located at the point where the local supply line connects to your home, just after your home’s main shutoff point. This way, whenever you want to repair or replace the regulator, you’ll simply turn off the main valve.

How often do pressure relief valves need to be replaced?

Make sure you replace your PRV every 4-5 years to avoid problems due to age.

Article first time published on

How do I know if my pressure relief valve is bad?

1. Low or Fluctuating Water Pressure. …
2. No Water Pressure. …
3. Hammering or Vibrating Noises. …
4. A Leak in your Flower Bed. …
5. High Water Pressure.

How long does it take to replace pressure relief valve?

When a TPRV at a water heater leaks, it’s usually a simple fix; just replace the valve. These valves cost less than $15 and replacing the valve is a basic job. There are plenty of videos on YouTube showing how to do this, and the whole project probably won’t take more than fifteen minutes.

Does a pressure reducing valve have to be installed vertically?

Horizontal installation is recommended. However, valve can be installed in a vertical position. … When reducing valve is used, it makes a closed system; therefore, pressure relief protection must be provided on the downstream side of the reducing valve to protect equipment.

Are pressure relief valves directional?

Adjustable, direct-acting relief valve blocks flow through the valve until force of system pressure on the poppet overcomes the adjustable spring force and downstream pressure. Relief valves are also made to relieve flow in either direction.

How does a pressure relief valve work?

How do pressure relief valves work? Relief valves are designed to protect compressed air systems from over-pressurisation by releasing excess pressure. Pressure acts against the valve seat and the force generated opens the valve against a spring tension.

Is a check valve a pressure relief valve?

Check valves fitted with a Pressure Relief (-PR) valve allow a few drops to back flow in case of a pressure increase (pressure range: 16-25 bar). This immediately relieves the pressure and prevents damage to the faucet. Below 16 bar, the PR check valve operates as regular check valve in compliance with EN 13959.

What is the purpose of the pressure relief valve?

The purpose of a pressure relief valve is to control or limit surges of pressure within pipelines, acting as protection for the system, and defending against instrument or equipment failure. They are usually present in clean water industries.

How do I adjust the pressure relief valve on my boiler?

The lock nut can be loosened if you remove the fast fill lever cap. Slowly turn the adjusting screw clockwise until the system gauge shows the pressure required. The adjusting screw has to be turned counterclockwise to lower the pressure.

Where should air vent be located in a hot water heating system?

Where should air vents be located in a hot water heating system? Air vents need to be placed at high points of the system and on terminal units.

How do I adjust the pressure reducing valve on my boiler?

To reset the regulator valve: Remove the fast fill lever cap, and loosen the lock nut. To raise the reduced pressure – slowly turn the adjusting screw clockwise until the system gauge indicates the pressure required. To lower the reduced pressure – turn the adjusting screw counterclockwise.

Why is water dripping from my overflow pipe?

When an overflow pipe is dripping or running with water, one of the most common causes is a problem with a float valve. Float valves are found in toilet cisterns, cold water tanks and central heating feed and expansion tanks. … This movement turns the cold-water feed on so the tank refills.

Why is my pressure relief valve leaking on boiler?

If the system pressure is 30 psig and the relief valve, rated for 40 psig, is leaking, the relief valve is most likely defective. … The most common causes are leaking gauge glass fittings above the water line of the tank, excessive system pressure, undersized tank, or the tank has a leak above the water line.

Why is my pressure release valve leaking?

When you see water coming out from the water heater release valve, there are two most likely causes. The relief valve is working the way it’s intended, and water drained to reduce the pressure inside the tank. There’s a problem with the valve, such as a faulty seal, and the water is unintentionally leaking.

How much does a plumber charge to install a pressure reducing valve?

How Much Does a Pressure Reducing Valve Cost? Pressure reducing valves start at around $50. Having a new pressure reducing valve installed by a professional plumber will probably set you back around $350.

What is the normal water pressure for a house?

Normal psi for a home pipe system is between 30 and 80 psi. While you don’t want the psi to be too low, it violates code to be above 80. Instead, you should aim for a psi that’s between 60 and 70.

How do you adjust a residential water pressure regulator?

The screw is your adjuster and it can be maneuvered only by loosening the locknut. As you tighten the screw, the water pressure will become greater and as you loosen it, the water pressure will lessen, so turn the screw clockwise to increase the pressure, or turn it counterclockwise to decrease the pressure.

How do I increase water pressure in my whole house?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

Will closing valve reduce water pressure?

The mains shut off valve controls the overall flow of water into your home. However, if the shut-off valve is even partially closed, it can cause a reduction in the mains water pressure to your home. Simply inspecting the mains shut off valve, and ensuring it is fully open can help to restore normal water pressure.

How much does it cost to replace a pressure relief valve on a boiler?

Pressure Relief Valve Price A replacement valve costs around $20 and calling in a professional could bring your cost up to $200. This isn’t a steep cost to ensure proper diagnosis and installation. The pressure relief valve is there as a safety measure in case the pressure inside the tank gets too high.

How do I know if I need to replace my valves?

1. It makes strange noises. If your valve sounds like an internet modem from 2002, that’s a sign repairs are in order. …
2. Material is leaking out. …
3. Material is jamming. …
4. The airlock stopped rotating.

Can water heater relief valve drain into pan?

(6) The terminal end of the pipe shall not be threaded. (7) Discharge from a relief valve into a water heater pan shall be prohibited.
