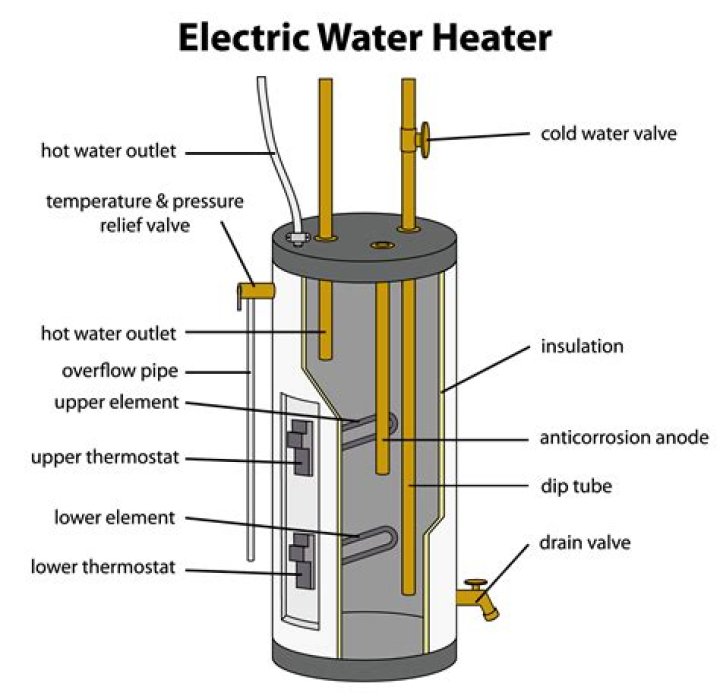

Where is the heating element on a water heater?

Most residential electric water heaters have two heating elements: one near the top of the tank and one near the bottom. Power enters the top and runs to the high-temperature cutoff switch, and then to the thermostats and elements. The top and bottom elements are controlled by separate thermostats.

Will water heater work with only bottom element?

Yes, a water heater can still run if the bottom element quits. In most water heaters, the top heating element controls the thermostat and will still work even if the bottom element fails. So provided the top heating element is working, it can still produce some hot water even if the bottom heating element fails.

Where is the heating element on an electric water heater?

Each of the heating elements are controlled by a separate thermostat. In an electric water heater, the bottom heating element is the workhorse, since it is at the bottom of the tank that cold water is delivered into.

What are the different types of electric water heaters?

Most of the electric water heaters two heating elements, upper and lower, where the screw-in type is the most common type, as it is easy to install, remove and service. Models with the smaller capacity, including point-of-use models, have only one heating element. Water heater element with the flange (bolt-in type) is another type but is used less.

Where can I find list of water heater replacement parts?

In an ongoing effort to keep our replacement parts partners up-to-date with additions and deletions to the program, You may download the Excel spreadsheet here or in .PDF format here. The prices shown are list price. NOTE: This notification pertains to water heater replacement parts only and does not apply to water heaters.

What is the upper thermostat on an electric water heater?

The upper thermostat is the main one as it controls the heat generated by both elements. It comes with the High Limit Switch reset button, and it shuts down the heater if the temperature becomes too high. When selecting the best electric water heater for your home, you will have an option to buy a unit with low or high-watt density elements.

Where are the heating elements in a water heater?

The heating element, which is the heat source inside an electric water heater, extends directly into the tank, where it heats the water around it. Most electric water heaters have two heating elements, one at the bottom of the tank and one at the top.

Where can I Buy Home Depot water heater elements?

Get free shipping on qualified Water Heater Elements or Buy Online Pick Up in Store today in the Plumbing Department. #1 Home Improvement Retailer Store Finder Truck & Tool Rental For the Pro Gift Cards Credit Services Track Order Track Order Help The Home Depot Logo To See Inventory Choose A Store Delivering to Cancel My Account

How do you test an electric water heater heating element?

Testing a Heating Element. To test an electric water heater heating element, use a multimeter or multi-tester. Turn off power to the electric water heater at the main power panel by turning off the circuit breaker or fuse powering the heater. Wait for the water heater to cool.

How long does an electric water heater heating element last?

Heating elements typically last around ten years or less depending on the water condition, operating temperature and frequency of use. This video shows detailed step-by-step procedure for how to replace an electrical heating element on an electric hot water heater.
