The sensor is at either the front or the back of the crankshaft, so it’s usually located either on the transmission bellhousing or behind the crankshaft pulley. There should be a small air gap, usually about a millimeter or two, between the sensor and the reluctor.

Where can I find crankshaft sensor?

The crankshaft sensor is usually located near the bottom of the block, toward the front of the engine. In most cases, you’ll find it behind the harmonic balancer. In some vehicles, you might find the crankshaft sensor behind the timing cover, near the bottom of the block, though this is rare.

How much does it cost to get a crankshaft sensor replace?

The sensor will cost somewhere between $50 and $100 depending on the manufacturer. However, installation can really vary depending upon the car, and in some cases runs upwards of $600 to $700 or more.

Will a car start if the crank sensor is bad?

The most common symptom associated with a bad or failing crankshaft position sensor is difficulty starting the vehicle. … If the crankshaft position sensor is having a problem, the vehicle may have intermittent starting issues or not start at all.

What happens if you drive with a bad crankshaft position sensor?

Vehicle stalls while driving When the crankshaft position sensor is failing, it can cause intermittent stalling. The vehicle may stall at all speeds. The ECU will not receive any reliable signal from the crankshaft position sensor, therefore, interfering with the timing system.

How long does it take to replace a crankshaft sensor?

The labor to replace the sensor is just under 1.5 hours according to my labor guide and the part is approx $50.

What sensors can cause a car not to start?

A bad Crankshaft Position sensor is a common cause of no starts. The signal from this sensor goes to the PCM or ignition module that switches the ignition coil(s) on and off. If you have an RPM signal, a bad ignition module or PCM may not be switching the coil(s) on and off.

Can you repair a crankshaft position sensor?

Once they have verified that it is the crankshaft position sensor causing the problem, then you can proceed to have the sensor replaced. The replacement cost of the crankshaft position sensor is anywhere from $120 to $300. The cost of the part itself will be around $75 to $120.

Does crank sensor control fuel pump?

Technically the crank sensor does indirectly control the fuel pump on a lot of vehicles, when the ignition is switched on the pump runs for a couple of seconds to pressurise the system, it then stops and will only start to run again when the engine starts to rotate, this rotation is sensed by the crank angle sensor …

How many crankshaft position sensors are in a car?

Generally, there are four types of crankshaft or camshaft position sensors: magnetic pick-up coils, Hall-effect sensors, magneto-resistive element (MRE) sensors, and optical sensors.

Article first time published on

Will a crank sensor throw a code?

From what I understand so far, they almost always throw a code when they go out.

What causes crank but no start?

When your engine cranks but won’t start or run, it could mean your engine is having trouble producing a spark, getting fuel, or creating compression. The most common causes are problems in the ignition (for example, a bad ignition coil) or fuel system (for example, a clogged fuel filter).

What does it mean if your car won't start but the lights come on?

Broken or Damaged Ignition If your headlights can turn on, but your car won’t crank, that means that your battery is charged, but either the starter or ignition is the problem. If the starter or ignition is the problem, a starter engine can be jumped by using a charged battery.

What does it mean when your car turns on but wont start?

If your vehicle won’t start, it’s usually caused by a dying or dead battery, loose or corroded connection cables, a bad alternator or an issue with the starter. It can be hard to determine if you’re dealing with a battery or an alternator problem. Here’s how to know which one is the culprit.

What are the symptoms of a bad camshaft?

• Active check engine light.
• Loud ticking or tapping sounds.
• Metal debris in the engine oil.
• Cylinder misfire.
• Increased emissions as a result of misfiring.
• Visible signs of damage.

Can a car run without a camshaft position sensor?

The car doesn’t run. The engine will either start or stall if it doesn’t turn over. The engine will run poorly if the same sensor is unplugged and no signal is sent.

What causes a camshaft sensor to go bad?

A camshaft position sensor can fail due to an accident. In the event of a failure, it may be necessary to replace the engine control module and associated wiring. Circumstances like an oil leak due to a bad head gasket or defective or loose oil cap can interrupt the sensor’s signal from the wires.

What does a crank sensor does?

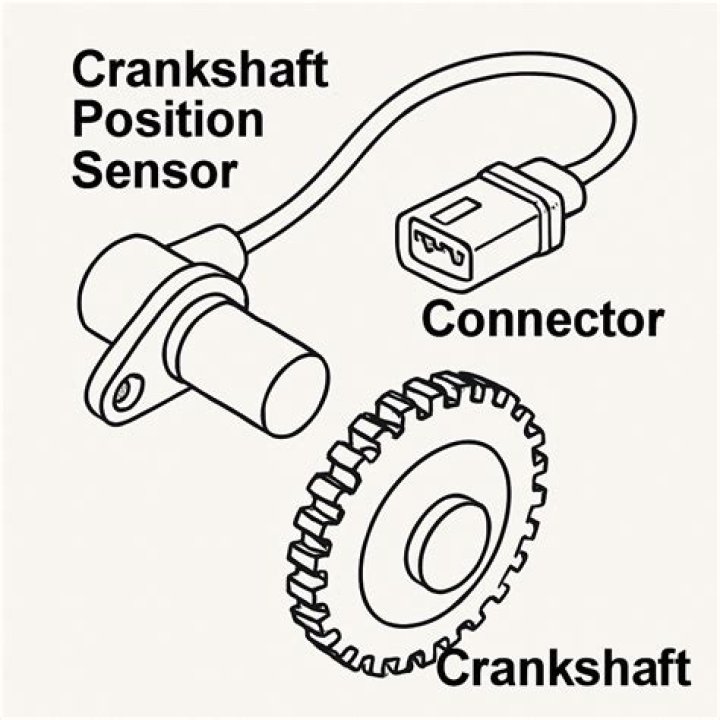

The Crankshaft Position Sensor is attached to the engine block facing the timing rotor on the engine crankshaft. The sensor detects signals used by the engine ECU to calculate the crankshaft position, and the engine rotational speed.

How do you clean a crankshaft sensor?

Spray a small amount of solvent on the sensor. Wipe it dry with another rag. Replace the camshaft sensor, and tighten the screws. Attach the three wires back into their original positions, and connect the negative battery cable.

Is cam sensor and crankshaft sensor the same?

The crankshaft position sensor monitors as a multifunctional sensor used to set ignition timing, detect engine RPM and relative engine speed. … The camshaft position sensor is used to determine which cylinder is firing to synchronize the fuel injector and coil firing sequence.

Will disconnecting battery reset crankshaft sensor?

To reset the check engine light you can disconnect the battery via the negative battery terminal and let the vehicle sit for an hour before reconnecting the battery. … A failed crankshaft position sensor will generally cause the vehicle to stalls when it’s running or cause the vehicle to not start at all.

Can you bypass a crank position sensor?

No. You just cannot bypass the crankshaft sensor, the car will crank but will not start. The DME needs to see this signal in correlation with the cam sensor for start up and fuel injection sequence.

Can a crankshaft sensor be intermittent?

Another common sign of a malfunctioning crank sensor is vehicle stalling. … Furthermore, if your vehicle’s engine struggles to start, the crank sensor’s position might be the issue. Even intermittent starting is a clue of a bad crank sensor.
