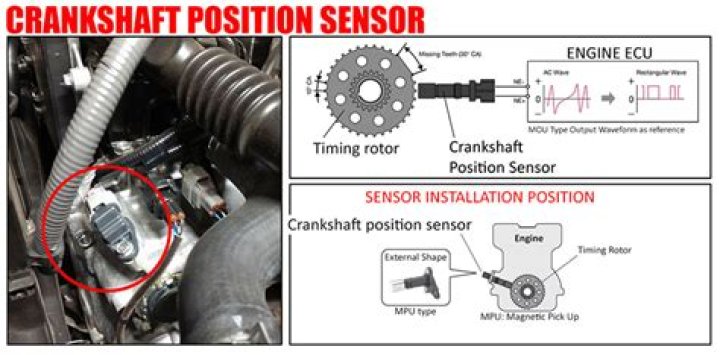

The Camshaft Position sensor is typically located in the cylinder head of the engine and has a cylindrical portion that inserts into the head. The Crankshaft Position sensor is normally located in the timing cover or on the side of the block with a cylindrical portion that inserts into the block.

Where is the crank position sensor located?

The sensor is at either the front or the back of the crankshaft, so it’s usually located either on the transmission bellhousing or behind the crankshaft pulley. There should be a small air gap, usually about a millimeter or two, between the sensor and the reluctor.

What happens when a camshaft sensor goes bad?

Poor Drivability A failing camshaft position sensor begins losing its ability to quickly transfer data. Mismatched fuel delivery and ignition timing, even if off by a few milliseconds, will cause your vehicle to sputter, accelerate poorly, lack power, stall or even shut off.

Is cam sensor and crank sensor the same?

yes,same part number.. The Cam Sensor is the New part design, sensor with round metal body replaces plastic sensor with flats sides. Must turn plug 180° to connect. The Crank Sensor is the same exact part.so if you need both just buy 2 of the same part number.

What are the symptoms of a bad crank sensor?

• Your Check Engine Light is Blinking.
• It’s Difficult to Get Your Vehicle to Start.
• Your Vehicle is Stalling and/or Backfiring.
• The Engine is Making Your Vehicle Vibrate.

Will a car start if the crank sensor is bad?

The beginnings of issues with the sensor that times the crank can start with stalling out or with your check engine light coming on. Once the problem becomes severe, significant damage can happen to the engine if you continue to drive it.

Will disconnecting battery reset crankshaft sensor?

To reset the check engine light you can disconnect the battery via the negative battery terminal and let the vehicle sit for an hour before reconnecting the battery. … A failed crankshaft position sensor will generally cause the vehicle to stalls when it’s running or cause the vehicle to not start at all.

Will a bad camshaft sensor cause rough idle?

Engine Idles Roughly: A rough idling engine could be caused by a failing camshaft position sensor. This issue is more evident when the engine is idling. Hesitation: Hesitation during acceleration is a common issue that you may experience with a bad camshaft sensor.

Should you replace both camshaft sensors?

Two on each head and one for each camshaft. … I wouldn’t recommend replacing camshaft sensors without a thorough diagnosis. The 1200 camshaft code is a cam timing problem. It could be a mechanical problem with the chain or a problem with the system that adjusts the variable valve timing.

Is a camshaft sensor hard to replace?

It may be easiest to remove and replace the camshaft sensor from under your vehicle, but it can also be done from the top by removing the air filter housing. … Oil and corrosion could affect the signal from the sensor to the engine control module.

Article first time published on

What is the 7 symptoms of a bad camshaft position sensor?

If your vehicle idles roughly, stalls frequently, has a drop in engine power, stumbles frequently, has reduced gas mileage, or accelerates slowly, these are all signs your camshaft position sensor could be failing.

Can a car run without cam sensor?

The car doesn’t run. … The engine will either start or stall if it doesn’t turn over. The engine will run poorly if the same sensor is unplugged and no signal is sent.

What happens when a crank sensor goes out?

The most common symptom of a bad crankshaft position sensor is a check engine light on your dashboard. You will often also experience a stalling engine or bad engine performance. In rare cases, you will also notice engine vibrations or misfires.

Does crank sensor control fuel pump?

Technically the crank sensor does indirectly control the fuel pump on a lot of vehicles, when the ignition is switched on the pump runs for a couple of seconds to pressurise the system, it then stops and will only start to run again when the engine starts to rotate, this rotation is sensed by the crank angle sensor …

Can you replace a crankshaft without removing the engine?

In addition, at the back of the crankshaft lies an oil seal. … In either event, the only way to repair the problem is to remove the crankshaft. Although crankshafts are traditionally removed after the engine has been pulled from the engine bay, it is possible to remove the crankshaft without pulling the engine.

Will a bad crank sensor cause no power to fuel pump?

Can faulty crankshaft position sensor cause there to be no fuel pressure? The answer is no. If the pressure reading at the fuel injection manifold/rail is zero, your fuel pump is not working.

How do you reset a crank sensor without a scanner?

1. Turn off all of the accessories. …
2. Accelerate the vehicle to 55 mph at part throttle. …
3. Cruise at 55 mph for another 5-6 minutes.
4. Decelerate to 45 mph without using the brakes, and maintain 45 mph for 1 minute.
5. Perform 4 deceleration cycles, without using the brakes, of 25 seconds each where no specific speed is necessary.

Will disconnecting the battery clear fault codes?

Leaving the battery disconnected for about 15 minutes will ensure the vehicle systems will completely reset when you reconnect the battery. Secure the negative cable back to the terminal and cover it with the cap (if applicable). Disconnecting the battery will clear the error codes and reset the check engine light.

What does a cam sensor do?

The camshaft sensor enables the engine control to determine the exact position of the crankshaft drive. This information is required to calculate the ignition point and injection point, among other things.

How much does a camshaft sensor cost?

To replace a camshaft position sensor, you can expect to pay anywhere from $95 to $200. Parts alone will run about $25 to $100. Labor costs will be in the range of $70 to $100 for professional replacement. Expect to pay more if you have a luxury vehicle or are having your local car dealership perform the replacement.

How long does it take to replace a crankshaft sensor?

The labor to replace the sensor is just under 1.5 hours according to my labor guide and the part is approx $50.

What does a bad camshaft sound like?

If you’re wondering what a bad camshaft sounds like, it usually makes loud ticking or tapping noises. As it starts to fail, you may notice odd sounds coming from your vehicle’s valvetrain. Ticking noises are often linked to worn cam lobes.

How much does it cost to replace a crank sensor?

The average cost for a Crankshaft Position Sensor Replacement is between $172 and $219 but can vary from car to car.

How much does it cost to get a crankshaft sensor replace?

The sensor will cost somewhere between $50 and $100 depending on the manufacturer. However, installation can really vary depending upon the car, and in some cases runs upwards of $600 to $700 or more.

Will a cam sensor cause no spark?

If the camshaft position sensor is malfunctioning, the computer may not be able to determine the correct time to fire the ignition coils, and there may end up being no spark.

Does a crankshaft sensor control spark?

The crank position sensor (CKP) is perhaps the most important sensor in the modern engine. … If you have crankshaft sensor issues, the ECM can’t synchronize fuel injection, spark ignition (for gasoline engines) or control variable valve timing. Crankshaft sensor issues can cause a range of problems.
