First, scout out an ideal location for your grounding point that is within 18” of the amplifier itself (the shorter the length or distance the better). For the most solid connection, it is highly recommended to attach the ground wire with screws or metal nuts directly to the metal chassis of your vehicle.

How do you ground an audio amplifier?

The best way to ground your car stereo components is to run a 10 or 12-gauge wire from the amp, and 12-gauge from all other components, such as head unit and active crossovers, to a central location. Then run a single ground to the best source of ground, the negative terminal on your car’s battery.

Where is the best place to put a ground wire?

A 10 or 12-gauge wire from the amplifier is the best way to ground your car stereo components. The negative terminal on the car’s battery is the best source of ground.

Will an amp work without a ground?

a bad ground (or no ground) would prevent an amplifier from turning on. not connecting a 12v+ remote turn on wire, would too, prevent an amplifier from turning on. a blown fuse from a spark will prevent an amplifier from turning on. just a personal note: take off the ground (from the battery) first before installation.

How do you ground an amp at home?

1. Choose an adequate ground. The household metal that attaches directly into the ground is typically a cold water pipe. …
2. Cut ground wire to adequate length. …
3. Strip both ends of the wire. …
4. Attach wire to receiver. …
5. Attach wire to best grounding source. …
6. Test the system.

How do you find a ground loop?

1. Set your volt meter to the most sensitive AC setting.
2. Disconnect the camera you want to test.
3. Place one contact on any exposed metal of the chassis. …
4. Place the other contact on the outside of the connector on the coax from the camera.
5. Any value above 0 indicates a ground loop.

What happens if AMP is not grounded properly?

Bad grounds can make your amp cut out, and create excessive heat, which can lead to vehicular fires. … Without a good ground, your system cannot create this current, which creates clipping issues with the amplifier. Properly grounded systems help stabilize voltage levels.

Can I ground my amp to seat bolt?

If you are grounding an amplifier, which is a perfect example, you can back out the seat belt bolt and get the wire underneath there and crank it back down, you are going to have pretty much have a perfect ground. … If you use that same ground, you’re good to go.

Can you use the negative battery terminal as a ground?

The negative terminal is never called ground. It is connected to the ground in order to maintain the positive terminal potential at the rated voltage.

Is it better to ground to battery or chassis?

As the corrosion or failure of the main battery ground cables gets worse (it will), an increasing amount of the alternator and starter current will travel through the user’s wire. … All ground wires should always go to chassis ground, near the device, and not directly to the battery.

Article first time published on

Can I attach ground wire to mounting screw?

Hook the screw loop around the green ground screw on your mounting bracket or light fixture and tighten the screw to hold it in place. If your light fixture has its own green ground wire you will need to connect the two ground wires using a wire nut.

How do you ground an electrical box?

If a metal box is being used, best practice is to insert a green grounding screw into the threaded hole in the back of the box or enclosure. The equipment-grounding wires then connect to the screw, making the metal box part of the grounding system.

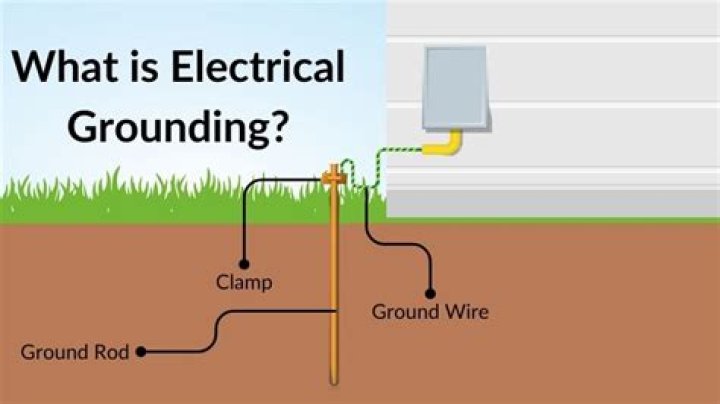

What is a grounding wire?

A “grounding” wire on the other hand is a safety wire that has intentionally been connected to earth. The grounding wire does not carry electricity under normal circuit operations. It’s purpose is to carry electrical current only under short circuit or other conditions that would be potentially dangerous.

How do I know if my car has a bad ground wire?

1. #1 – Flickering Lights. …
2. #2 – Low Voltage. …
3. #3 – Dead Battery. …
4. #4 – Car Won’t Start. …
5. #5 – Visible Ground Strap Damage. …
6. Identify the negative battery cable (ground strap) …
7. Disconnect the negative cable. …
8. Disconnect the positive cable (optional)

What causes a ground wire to burn up?

A melted Ground Wire is caused by a Ground Fault having occurred, causing current to flow in that wire that should never have current flow in it except during a Ground Fault. That wire is keeping some piece of metal from rising in voltage despite a high voltage wire having come in contact with it somewhere.

How long should my ground wire be for my car amp?

The recommended way to ground your amplifiers is to keep your ground cable less than 18″ long, the same exact size/gauge as the power cable, bolted directly to a solid, thick steel part of the chassis which is scraped and polished clean of any paint or primer for best possible grounding.

What does ground lift do on an amp?

The ground lift switch breaks the ground loop by disconnecting the shield of the direct output from the amp. It leaves the AC safety ground connected from the chassis to the wall outlet. This is the opposite of using a 3-to-2-prong AC adapter, which leaves the shield connected and opens the safety ground to the wall.

How do you remove ground noise from an amp?

Rob Schultz One way to create a ground loop is to power inter-connected equipment from different AC outlets: The ground travels through the shielding of the signal cables. Anything that breaks the loop will remove the noise, and the easiest way to do it is to power everything through a single AC socket.

How do you isolate a ground loop?

1. Remove one of the ground paths, thus converting the system to a single point ground.
2. Isolate one of the ground paths with an isolation transformer, common mode choke, optical coupler, balanced circuitry, or frequency selective grounding.

Is a ground wire the same as a negative wire?

There is no difference between ground and a negative terminal, if you have defined them to be the same connection. Ground can be the negative terminal of a battery, the positive terminal, or it might be the middle connection between two series batteries. Ground is whatever you want it to be.

Why do you connect negative to ground?

The reason for connecting the negative cable to ground rather than to the negative terminal of the dead battery is to minimize the chances of a spark near the battery, where there may be potentially explosive gasses. … Disconnect the cables and attempt to start the car with the bad battery.

Can you ground to car seat?

You can’t ground yourself to the Earth while driving a vehicle. However, you can put an Auto Seat Mat on the car seat and connect the cord with an alligator clip to the metal chassis under the seat. The sweat from your body will create a channel of moisture and conductivity through your clothes to the mat.

How do you ground two amps in a car?

The best way to wire multiple amps to a single power cable is to use a power distribution block. That allows you to use a single cable for most of the run, including the crucial portion that passes through the firewall and then to use shorter individual cables to actually connect to each amplifier.

Where do you ground black wire?

The positive (red) cable should be attached to the positive terminals on each battery. The negative (black) cable should have one end attached to the negative terminal of the dead battery, and one end grounded.

How do you know if an amp is bad ground?

1. Overheating. …
2. Clipped Sound Signal. …
3. Unable to turn on. …
4. Restarting all the time. …
5. Whining noise. …
6. Fire/Burning.

Do ground wires need to be capped?

Tip. Bare copper ground wires do not need to be capped. Similarly, BX cable’s metal armor sheathing, which conducts to ground without the need for an additional ground wire, may be left alone.

Do metal boxes need to be grounded?

yes, the box should be grounded. It should not be grounded through the devices, but by means of a machine screw, clip, or through metal conduit.
