A dashed line means that the relationship is strong, whereas a solid line means that the relationship is weak. On the following diagram how do we decide that the relationship between the Room and Class entities is strong.

What does the dotted line in the diagram represent?

A Temporary State. The dashed line often represents something that is in a temporary or transitional state. In this context, it is used as a placeholder, indicating there is more to come.

How attributes are represented in an ERD?

Attributes are represented by ellipses. Ellipses are name with attribute name and connected with rectangle (entity).

What symbols are used in drawing an ERD?

• Entities, which are represented by rectangles. …
• Actions, which are represented by diamond shapes, show how two entities share information in the database. …
• Attributes, which are represented by ovals.

Which is symbolized with a dotted line in UML?

A dependency is a weak relationship between two classes and is represented by a dotted line.

What is UML notation for ERD?

Two widely used ERD styles are the “Crow’s Foot” notation and Unified Modeling Language (UML) notation. In Crow’s foot notation, a single line represents a cardinality of “One” and a “crow’s foot” indicates “Many”.

What is primary key in ERD?

The primary key is a candidate key that is selected by the database designer to be used as an identifying mechanism for the whole entity set. It must uniquely identify tuples in a table and not be null. The primary key is indicated in the ER model by underlining the attribute.

How do you read an ERD relationship?

You read the diagrams first from left to right and then from right to left. In the case of the name-address relationship in following figure, you read the relationships as follows: names can be associated with zero or exactly one address; addresses can be associated with zero, one, or many names.

What are entities in ERD?

An ERD entity is a definable thing or concept within a system, such as a person/role (e.g. Student), object (e.g. Invoice), concept (e.g. Profile) or event (e.g. Transaction) (note: In ERD, the term “entity” is often used instead of “table”, but they are the same). When determining entities, think of them as nouns.

Which key attribute in an ER diagram is underlined with dashed dotted line?

The key attribute of the weak entity is represented by dashed underline. Relationship: A diamond shape is used to show the relationship between the entities.

Article first time published on

How do you identify relationships between entities?

1. Weak Entity. Weak Entity is dependent on Strong Entity and does not have a primary key. …
2. Strong Entity. Other entities are dependent on Strong Entity and it has a key attribute i.e. a primary key and represented as a single rectangle.
3. Identifying Relationships.

What does dashed arrow mean in UML?

The dashed arrow (from client to ConcreteCommand) means that there is an (unidirectional) association between instances of these classes. An instance of client is using an instance of ConcreteCommand but lifecycle of ConcreteCommand (creation and destruction) are not depending of Client instance.

What is dotted line in use case?

The dotted line is labeled <<include>>. An extend relationship indicates that one use case is a variation of another. Extend notation is a dotted line, labeled <<extend>>, and with an arrow toward the base case.

What is dotted arrow in UML?

UML notation: Interfaces are tagged with a “stereotype” indicator «interface» A dotted arrow with a triangular tip denotes the “is-a” relationship between a class and an interface. A dotted line with an open v-shaped arrow tip denotes the “uses” relationship or dependency.

What is primary and foreign key in ERD?

Primary keys enforce entity integrity by uniquely identifying entity instances. Foreign keys enforce referential integrity by completing an association between two entities. The next step in building the basic data model to: Identify and define the primary key attributes for each entity.

What is composite key in ERD?

In database design, a composite key is a candidate key that consists of two or more attributes (table columns) that together uniquely identify an entity occurrence (table row). A compound key is a composite key for which each attribute that makes up the key is a foreign key in its own right.

What are foreign keys in ERD?

Foreign key: term used in relational databases (but not in the E-R model) for an attribute that is the primary key of another table and is used to establish a relationship with that table where it appears as an attribute also. So a foreign key value occurs in the table and again in the other table.

What is crow foot notation in a database?

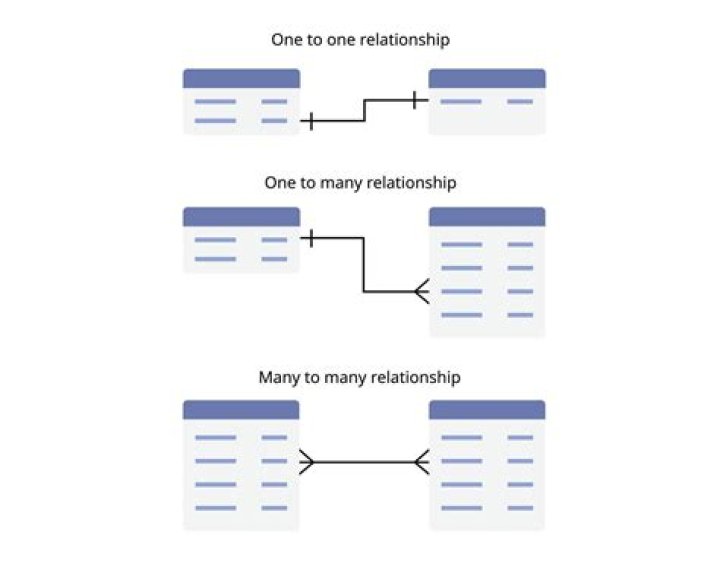

A crow’s foot represents “many” or “infinite” These symbols are used in pairs to represent the four types of cardinality that an entity may have in a relationship. The inner element of the notation represents the minimum, and the outer element (closest to the entity) represents the maximum.

Is a relationship in ERD?

Relationship Type and Relationship Set: A relationship type represents the association between entity types. For example,’Enrolled in’ is a relationship type that exists between entity type Student and Course. In ER diagram, relationship type is represented by a diamond and connecting the entities with lines.

How is a class represented in a standard UML notation?

Class Notation UML class is represented by the following figure. … The top section is used to name the class. The second one is used to show the attributes of the class. The third section is used to describe the operations performed by the class.

What is the concept of ERD?

An entity relationship diagram (ERD), also known as an entity relationship model, is a graphical representation that depicts relationships among people, objects, places, concepts or events within an information technology (IT) system.

How do you draw an ERD diagram?

1. Determine the Entities in Your ERD. Start by identifying the “what”s in your system or architecture. …
2. Add Attributes to Each Entity. …
3. Define the Relationships Between Entities. …
4. Add Cardinality to Every Relationship. …
5. Finish and Save Your ERD.

What is ERD diagram explain with an example?

ER Diagram stands for Entity Relationship Diagram, also known as ERD is a diagram that displays the relationship of entity sets stored in a database. … ER Diagrams contain different symbols that use rectangles to represent entities, ovals to define attributes and diamond shapes to represent relationships.

Which type of class relationship can be described as kind of or is a?

Dependency: also called a using relationship, which means, one class is dependent on another class. Generalization: also called an “is-a-kind-of” relationship.

Which attribute in an ER diagram is underlined with dashed dotted Mcq?

Clarification: A discriminator of a weak entity set can be specified by underlining it with a dashed line. Clarification: An entity set that has a primary key is called as a strong entity set. An entity set that does not have a primary key is called a weak entity set.

Which symbol represents weak entity in ERD?

Weak entity is represented by double rectangle. The relation between one strong and one weak entity is represented by double diamond.

Which attributes are depicted by dashed ellipse?

Derived attributes are depicted by dashed ellipse.

Which of the following concept allows us to represent relationship as entities?

Explanation: Diamond represents a relationship set and rectangle represents a entity set. … The identifying entity set is said to own the weak entity set that it identifies. It is also called as owner entity set.

How does UML class diagrams represent inheritance?

Inheritance is shown in a class diagram by using a solid line with a closed, hollow arrow. Bidirectional association: The default relationship between two classes. Both classes are aware of each other and their relationship with the other. This association is represented by a straight line between two classes.

What is diamond in UML?

It signifies aggregation. From wikipedia: In UML, it is graphically represented as a hollow diamond shape on the containing class end of the tree with a single line that connects the contained class to the containing class.

How does UML show dependency?

Dependency in UML The most general relationship between two packages, classes, or objects is dependency, which is shown by a dashed arrow: Strictly speaking, A depends on B is changes to B might necessitate changes to A.
