When pressure relief valve opens?

A relief valve opens when static upstream pressure is higher than the opening pressure, and it opens in proportion to the pressure increase. This type of valve is more often used with incompressible fluids.

What causes a relief valve to open?

When water is heated up inside of a water heater, thermal expansion causes the pressure inside of the tank to build up. If the temperature’s or pressure in your tank exceeds a certain level (often times 210 degrees and 150 psi), the relief valve opens up and allows some water to drain out of the tank.

Who invented the pressure relief valve?

Denis Papin
I was reading a magazine that is more than 100 years old the other day and came across this little story, which I found delightful. Listen: “The first safety valve was invented in 1681 by Denis Papin, a Frenchman, who was born at Blois, France in 1647.

Where on a system would a relief valve be found?

The system relief valve is normally located near the pump outlet on a typical hydraulic unit.

What causes a pressure relief valve to go bad?

Contaminants, like dirt, lint, rust, sludge, or even the misalignment of the valve can cause the pressure relief valve to stick. At this point, you might see that your system is above pressure, or you’ll notice other pressure relief valves in the system releasing to make up for this valve’s malfunction.

How do I choose a PRV valve?

Here are six factors that must be considered when selecting and sizing safety or pressure relief valves.

1. Connection size and type. The valve size must correspond to the size of the inlet and discharge piping.
2. Set pressure (PSIG)
3. Temperature.
4. Back pressure.
5. Service.
6. Required capacity.

How do you set a pump relief valve?

Now, lock the system relief valve at the position that remains the 200 PSI above required pressure. Last, set the pump pressure compensator setting to the actual system pressure that is required.

What is the purpose of a relief valve?

A relief valve or pressure relief valve (PRV) is a type of safety valve used to control or limit the pressure in a system; pressure might otherwise build up and create a process upset, instrument or equipment failure, or fire.

Can a pressure relief valve be used on a boiler?

Other appliances ‒ like boilers, for example ‒ also use pressure relief valves. While these valves operate in the same way as the one on your water heater, they’re set to go off at a much lower psi. Boiler pressure valves typically release water and steam at 30 psi, not the 150 psi typical of water heater valves.

What’s the maximum pressure a pressure relief valve can open?

When the pressure relief valve to be used has a set pressure below 30 psig, the ASME Code specifies a maximum allowable overpressure of 3 psi. Pressure relief valves must start to open at or below the maximum allowable working pressure of the equipment.

When do you open a pressure relief valve?

Pressure relief valves must start to open at or below the maximum allowable working pressure of the equipment. When multiple pressure relief valves are used in parallel, one valve should be set at or below the MAWP and the remaining valve(s) may be set up to 5% over the MAWP.

How are relief valves used in fluid systems?

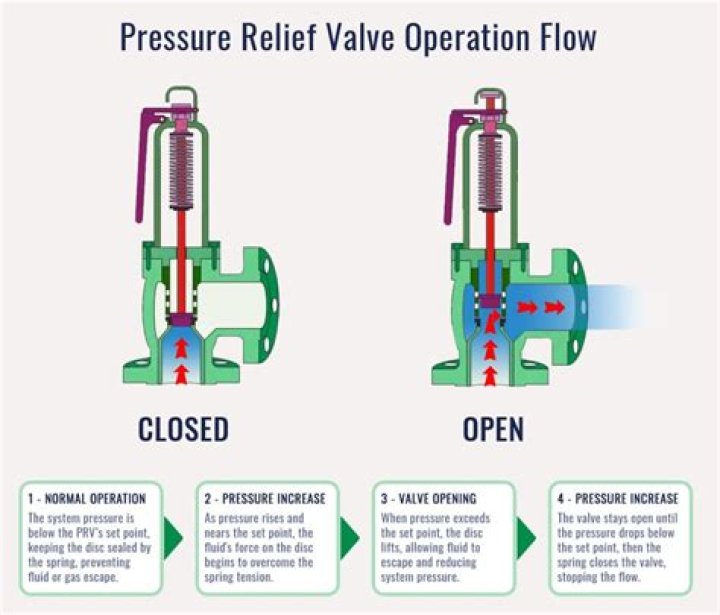

Relief Valves are designed to control pressure in a system, most often in fluid or compressed air systems. These valves open in proportion to the increase in system pressure. This means they don’t fly all the way open when the system is slightly overpressure. Instead, they open gradually, allowing the system to return to the preset pressure level.

How does a pilot operated relief valve work?

The pilot-operated valve is combined with and controlled by an auxiliary pressure pilot. The resistance force on the piston in the main valve is assisted by the process pressure through an orifice. The net seating force on the piston actually increases as the process pressure nears the set point.
