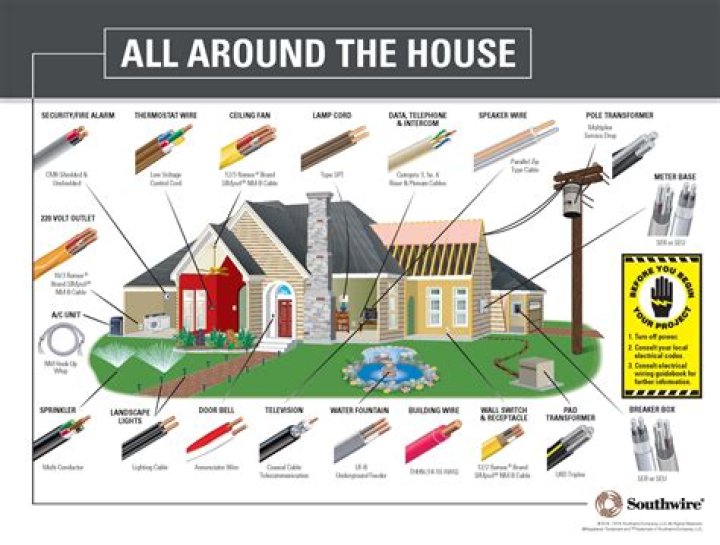

Plastic or thermoplastic nonmetallic cable such as that shown below, still referred to by many electricians as “Romex” cable, has been in use since the 1960’s and in the U.S. became very widely used in new residential construction by 1970, completely replacing fabric-based wire insulation products.

What year did Romex wire come out?

In 1922, the Rome Wire Company in Rome, NY invented cable that was not sheathed in metal. This nonmetallic-sheathed (or NM) cable was marketed under the trademark “Romex.” Much like “BX” cable, “Romex” is still used as a broad if imprecise term for all NM cable.

What kind of wiring was used in 1970?

In North American residential construction, aluminum wire was used for wiring entire houses for a short time from the 1960s to the mid-1970s during a period of high copper prices.

How do I identify the wires in an old house?

Set your multimeter to 200V AC (or something just above line voltage where you are). Touch the negative probe to the neutral (wide in the US) slot of your cord, and the positive probe to each of the wires in your light box. Only the hot should show voltage near line-level.

What kind of wiring was used in 1940?

Knob-and-Tube Wiring. Knob and Tube wiring was an early standardized method of electrical wiring in buildings, in common use in North America from about 1880 to the 1940s.

When was knob and tube wiring phased out?

“Knob and tube” was the most cost-effective way to wire a home from about 1880 to the 1930s. It began gradually being phased out through the 1940s, displaced by electrical cables that bundled hot and neutral, and eventually ground, wires in a single flexible sleeve.

What type of wiring was used in 1980?

Aluminum wire is still used on dedicated circuits of 30 AMP’s or more such as dryers, ranges, or AC condensers. The standard capacity for an electric panel installed in the 1980’s is 100 AMP’s which is adequate for most homes. It will accommodate multiple computers, TV’s, ceiling fans, and many other modern items.

Does Romex have a ground wire?

NM Cable (Romex®) NM cable contains two or more insulated wires and a bare ground wire. … A 2-wire NM contains one black wire (usually line) and one white wire (usually neutral) and a bare ground wire. When used in switch wiring, the white wire is sometimes used as a line wire.

Is cloth Romex safe?

Cloth wiring is considered dangerous because the cloth insulation around these wires can become brittle and deteriorate overtime. As the insulation around these wires deteriorates, there is a higher risk of a fire developing. Most issues occur with the early forms of this wiring.

What does a red wire mean?

What are Red Wires? Red wires are usually used as secondary hot wires. Red wires are also hot and should be clearly marked to avoid the dangers of electrocution. Red wires are commonly used when installing ceiling fans, where the light switch maybe.

Article first time published on

What kind of wiring was used in 1960?

In the mid-1960s, when copper prices were quite high, aluminum came into vogue as a material for electrical wiring. Residential installations between 1965 and 1974 sometimes used wires that were solid aluminum, or aluminum covered with a thin layer of copper.

What type of wiring was used in 1963?

Aluminum wiring was popular in homes built from about 1963 to 1974, but is about 55 times more likely to develop a faulty, dangerous connection than copper wire, according to the U.S. Consumer Product Safety Commission.

What type of wiring was used in 1964?

Aluminum wiring was most common in homes built between 1964 and 1976—and of course some electricians used up their stock after 1976.

When did they start color coding Romex?

1 Answer. Type NM-B cable first began to be manufactured with color-coded jackets in 2001 to aid in identification of the conductor size.

What type of wiring was used in 1959?

Knob-and-tube wiring was the wiring method of choice for homes until, and in many areas, through the 1950s. Knob and tube wiring was a two-wire system that was quick and easy to install.

When did they stop building houses with aluminum wiring?

In 1972, the formula for aluminum wiring changed, making it a much safer product. Aluminum wiring was used in single family homes for a few years after that, but was completely phased out by the mid-’70s.

Is it OK to leave knob and tube wiring?

If the knob and tube wiring system remains unaltered, has been carefully maintained, and all repairs have been made by a knowledgeable electrician, knob and tube wiring would still be safe to use today. … Homeowners unknowingly create a dangerous situation when household insulation is installed over the tube wiring.

Was knob and tube wiring used in the 60s?

Knob and Tube Wiring Explained Homes that were built up until the mid-1960s commonly have knob and tube wiring. It uses a combination of knobs and tubes as insulators, as the name would imply. Some of the most noticeable features include: Two wires (hot and neutral) and no ground wire.

Can you put insulation over knob and tube wiring?

The existing knob and tube wires could be covered with a box large enough to maintain three inches of air space around each conductor, and then insulation could be spread over that. … This type of wiring system can be buried in insulation, and it does carry a grounding conductor for shock protection.

What is the cost of rewiring a house?

The cost to rewire a house runs from $1,500 to $3,000 for a small house, $3,500 to $8,000 for a medium-sized house, and $8,000 to $20,000 for a larger home; or $7 per linear foot of wall space plus the cost of the electrical panel at $1,200 to $2,500. Get free estimates from electricians near you.

How long does Romex wire last?

How long does Romex wiring last? Non-metallic (Romex) wiring can last 70 years or longer. The outer protective sheathing resists breakdown due to age. Commonly, damage to Romex wiring is caused by animals or overheating, which requires a partial wiring replacement.

Does all cloth wire contain asbestos?

All current cloth wiring is made from non-toxic materials. … If you have concerns about older cloth insulation in your home, please contact us regarding replacing it. Kilowatt Heating, Air Conditioning and Electrical offers high quality electrical wiring services in Los Angeles, CA and the surrounding areas.

Can Romex be buried underground?

Romex is a brand name for non-metallic paper bonded cable (NM-B, as printed on the jacket) with a PVC jacket. This is why type UF is suitable for burying and wet locations (or dry) where NM-B cable is suitable only for very specific dry locations.

What is the red wire in Romex?

In a three-conductor cable, the extra wire is red, and it’s almost always used as a hot wire. When you see a red wire in a 120-volt duplex outlet box, it’s usually because one of the outlets is operated by a wall switch, while the other is always on. The red wire is for the light switch.

What happens if Romex gets wet?

In most homes, ROMEX® wire is used for electricity, where the copper ground wire is wrapped in paper and then, in turn, wrapped in the live and neutral wires. If this wiring is exposed either through a break in the plastic coating or even at the socket, the moisture can be soaked up by the paper, creating rust.

What is a black wire?

Black: Black wires are neutral wires and the wire is connected to a neutral bus bar inside the electrical panel. The bus bar is a conductive piece of metal used for the purpose of distribution. The black wire can be connected to another black wire, and as it is neutral, it does carry a charge.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means.

What color is the common wire on a light switch?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

Is Romex color-coded?

Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White – 14 AWG, Yellow – 12 AWG, Orange – 10 AWG, and Black – 8 AWG and 6 AWG.

Does the color of Romex matter?

The heavier, yellow ROMEX® is rated at 20 amps. Common applications for this 12-gauge wire are receptacles and three-way circuits. Larger appliances, such as a microwave or welder, require the additional power this wire delivers.

What is the difference between white and yellow Romex?

For example, white sheathing means that the inner wires are 14-gauge and yellow sheathing indicates that they are 12-gauge. … The National Electrical Code (NEC) says that white or gray must be used for neutral conductors and that bare copper or green wires must be used as ground wires.
