Either a 15-amp circuit (wired with 14-gauge wire) or a 20-amp circuit (wired with 12-gauge cable) is acceptable for powering hardwired smoke detectors. Wiring the smoke detectors is fairly straightforward for an experienced DIYer or a professional electrician.

Do you need 14 3 wire for smoke detectors?

Run a 14/3 romex from the first detector to the next detector and so on to each of the other detectors. This circuit needs to be daisy chained, do not splice the cable and take a single cable to a detector. You should have 2 14/3 cables at each detector with the exception of the first one in the circuit.

What is FPL wire?

FPL (Fire Power Limited) Fire Alarm Cable is non-plenum rated for use in general purpose fire alarm installation. FPLP (Fire Power Limited Plenum) Plenum Fire Alarm Cable is used in horizontal overhead installations such as, duct work or other space that is used for the flow of environmental air.

What is the most suitable cable for a fire alarm?

1) FPL which is a power-limited fire alarm riser cable is usually the least expensive because it is the most basic type of fire alarm cable and is also recognized by the NEC (National Electric Code). FPLR cables are suitable for use in a vertical run through a shaft or from floor to floor within a building.

What is TF wire?

Thermoplastic Fixture PVC Insulated Wire (TF Wire) is suitable used for types of services where its conductor temperature does not exceed 60°C in both dry and wet locations. The copper conductors are available in both solid and stranded. … TF Wires are also heat, moisture, oil, and gasoline resistant.

Do smoke detectors have to be wired in series?

Smoke detectors need to be wired together to create a complete system. With hard-wired detectors, a single smoke detector going off will set off the others — ensuring that everyone in your home is alerted to hazards. Hard-wired detectors are also able to run off both power and batteries, making them extra secure.

What gauge is fire alarm wire?

You will find that normally 18-16 AWG cables. Notification devices and associated cables send power to the devices. You will find that normally 16-12 AWG cables are utilized.

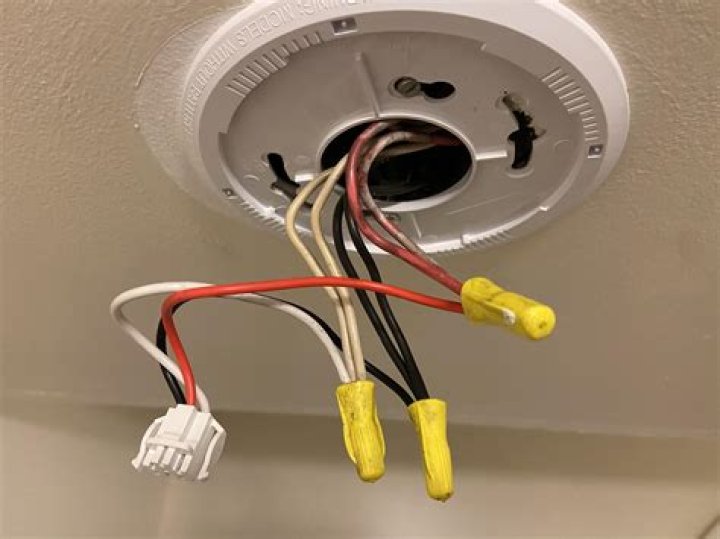

How do you wire a hardwired smoke detector?

Connect the white wire on the power connector to the neutral wire in the junction box. Connect the black wire on the power connector to the hot wire in the junction box. Connect the orange wire on the power connector to the interconnect wire in the junction box. Repeat for each unit you are interconnecting.

What is a 2 wire smoke detector?

2-wire smoke detectors are hardwired smoke detectors that detect the early signs of smoke or fire using the zone wiring of the home or business fire alarm system. These devices are usually restricted to a hardwired zone and uses a single pair of wires to combine detection and power loops.

What is the difference between 2wire and 4 wire smoke detectors?

Differences. The key differences between two and four-wire systems are the numbers of wires and how the wiring is connected to the control panel to trigger the alarm. A four-wire system has separate wires, while a two-wire system uses the same wires to power the unit and to trigger the alarm.

Article first time published on

How do 4 wire smoke detectors work?

A 4 wire smoke detector uses two wires or terminals for the fire alarm zone, two wires or terminals to receive its operating power. Being a conventional device, it has to be regularly tested manually to make sure it works.

Are all hardwired smoke detectors compatible?

Yes. You can replace a smoke detector with a combination smoke/CO unit. All modern First Alert and BRK alarms use the same wire harness and connector. … For example, if you have 5 smoke detectors interconnected with one combo unit, only the combo smoke/CO unit will sound the CO alarm.

What is TW and UF wire?

Type UF is covered by heavy plastic sheathing. The cable is designed for placement in the ground without being encased in protective metal conduit. Type TW wire has a thin thermoplastic insulation. that provides the wire with some measure of. moisture resistance.

What is TW wire?

TW or THW means thermoplastic high heat-resistant and water-resistant. Typical uses of TW/THW electrical wire tracer are in control panels, air conditioning equipment, refrigeration equipment, control wiring of machine tools, and automatic washers.

What does Thhn stand for?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations.

Can you use cat5 for alarm wire?

Cat 5 and 6 cable has more wire strands than what all security components (with the exception of the main control panel) require. … We strongly recommend you to install appropriate security wire for each component of your home security system and use Cat5e or Cat6 cables only where they are really needed.

Can Thhn wire be used for fire alarm?

THHN and TFN are high-temperature wiring that are approved for fire systems, smoke detectors, and alarms. A contractor, depending on local code, may be able to run groups of single conductors equivalent to the premanufactured FPL type cables.

Are hard wired smoke detectors in series or parallel?

In addition, if you have a home with more than one floor, it’s important for the smoke alarms to be wired in parallel so if one goes off in the basement, every alarm will sound throughout the home.

How does a 2 wire fire alarm system work?

Two-wire fire alarm systems work by allowing detectors, call points and alarm devices for each zone to all be wired into the same set of two-core wire. This means it only needs a single circuit per zone and does not require a separate sounder circuit.

What is the primary advantage of a twin wire system as opposed to a four wire system?

Two-wire devices are easier because there are less connections to make, but voltage drop must be taken into account. Four-wire devices are easier to connect because of the built in isolation, but external power requirements must be taken into account.

How do I know if my smoke detector is photoelectric?

If you are unaware which type of smoke detector you have in your home, now is the time to check. You can do so by taking the smoke alarm down and look at the back for either “Photoelectric” or “Ionization,” or a symbol with the letter “P” or “I” on the back.

Why are some smoke detectors hard-wired?

Hardwired smoke alarms are more dependable as they are connected on a power supply. Once the alarm sounds, they will not stop until turned off. In case of power interruptions, they have battery backups for continuous operation.

Do smoke alarms need a dedicated circuit?

Residential smoke alarms should be wired on a dedicated circuit. It’s a good idea to have at least one light or receptacle-on the same circuit, to alert the homeowners in case the circuit breaker ever trips. Interconnected alarms are usually wired in a daisy chain, using 14-3 or 12-3 cable.

What is yellow wire in smoke alarm?

That leaves one free wire inside the detector, a red (or sometimes yellow) wire which purpose is to send a signal to all the other detectors or receive a signal from any of the other detectors connected to it.

How many wires does a smoke detector need?

If you buy an AC-powered smoke detector today, it will have three wires — black, white and red. Black accepts 120 volts AC, white is neutral, and red is the intercommunication wire.

What is the purpose of the rj31x Jack?

An RJ-31X jack is designed to facilitate wiring of an alarm panel and premise telephone on the same phone line while assuring that the processing of alarm signals has priority (line seizure) over a voice call.

How many hours of backup battery time is required for a fire alarm system in a non alarm mode?

7.2 states that fire alarm systems are required to have adequate secondary power capacity to power the systems in quiescent (non-alarm condition) for a minimum of 24 hours.

Are all smoke detectors universal?

Unfortunately, not all smoke alarms are created equal. This is because two different types of sensors exist for detecting fire and smoke. Those two sensors are called “photoelectric” and “ionization” sensors, and they both sense vastly different types of smoke and fire.

Can you mix wired and wireless smoke detectors?

Place one mains powered Smart RF enabled alarm on each hardwire interconnected network, to wirelessly link the networks together. YOU SHOULD NEVER: Exceed 250m of connecting wire per circuit. Connect FireAngel alarms to any other models produced by another manufacturer.
