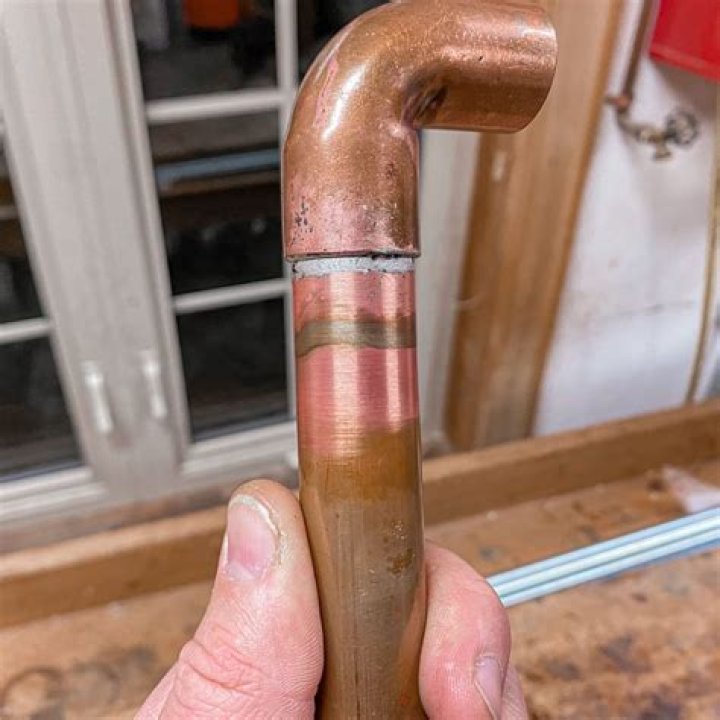

What type of copper pipe is used for baseboard heat?

For radiant panel and hydronic heating and for snow melting systems, use Type L soft temper where coils are formed in place or prefabricated, Type M where straight lengths are used. For water heating and low-pressure steam, use Type M for all sizes. For condensate return lines, Type L is successfully used.

How high off the floor should baseboard heaters be installed?

Your heaters should sit at least two centimetres (three-quarters of an inch) above the floor or carpet to allow the cooler air on the floor to flow under and through the electrical element.

How do you cut baseboard covers?

Cut the cover at the squared line with tin snips or sheet metal scissors. Use the main portion of the blades to make the cut in stages, instead of the tip of the blades that can crimp the edges of the cut.

How tall is a Decoro double panel radiator?

WATER CONTENT HEIGHT (GALS./Linear Ft.) 12” .35 16” .41 20” .47 24” .54 36” .73 TAPPING IDENTIFICATION AIR VENT DRAIN THERMOSTATIC VALVE DRAIN SUPPLY AND RETURN As indicated in the Data Table, Decoro Design steel panel radiators are double panel and available in five different heights; 12”, 16”, 20”, 24” and 36”.

What are the installation requirements for steel panel radiators?

INSTALLATION REQUIREMENTS Decoro Design steel panel radiators are designed to be installed in closed hydronic heating systems, with a maximum operating temperature of 250° F. If the heating system contains antifreeze, the proper Ph must be maintained. High acidity will damage the radiator and void the manufacturer’s warranty.

What kind of connection does a radiator have?

Each radiator is manufactured with six ½” BSP threaded connections, as shown in the illustration above, one of which has a factory installed integral thermostatic valve/adjustable flow-setter, another, a manual air vent, two with drain plugs and a bottom supply and return connection.

What do you need to know about radiator installation?

Installation Requirements 8. Sizing / Flow Rate 9. Radiator Pressure Drop 11. Radiator Valve Pressure Drop 12. Total Pressure Drop 13. Radiator Rough-In 14. Bracket and Radiator Mounting 15. Tubing and Pipe Adaptors 16. Copper Pipe Adaptor Assembly 17. Isolation and By-Pass Valves 18. Flow Setter and Thermostatic Operator 19. Water Flow 8/2015 R3

Where is the heating element located in a baseboard radiator?

In baseboard radiators, the heating element located inside and is separated from the room with a cover and an air gap, which reduces radiant heating effect to a minimum.

What kind of tubing should I use for my radiator?

The piping of choice should be oxygen barrier PEX tubing or PEX-AL-PEX tubing (Everhot, Sioux Chief, Viega, Watts, Uponor or similar) due to it’s flexibility and cost advantage over copper pipe.

Which is the best piping method for a radiator?

Dedicated (Home-Run) Piping Method: Home-run piping method involves running dedicated supply and return lines from the radiator to the multi-loop (multi-zone) distribution manifold, such as SSM or BSM series available at PexUniverse or similar. It offers multiple advantages:

Why are panel radiators more energy efficient than baseboards?

Unlike standard baseboards (copper pipe with aluminum fins), which rely almost exclusively on hot air convection, panel radiators are designed to utilize another additional method of heat transfer – radiant heat, which is more energy efficient and creates a noticeably more comfortable environment with better heat distribution.
