Coaxial cable, sometimes known as coax cable, is an electrical cable which transmits radio frequency (RF) signals from one point to another.

Is coaxial cable a physical cable?

Coaxial cable received its name because it includes one physical channel that carries the signal surrounded — after a layer of insulation — by another concentric physical channel, both running along the same axis.

What is the difference between coaxial cable and normal cable?

The only difference are the few other insulator of Coax… but they are both copper wire. What makes Coax good use for Audio/Video and not the regular electric wire?

What are the two types of coaxial cables?

Coaxial cable types There are two main types of coaxial cables – ones with an impedance of 75 Ohm (Ω) and ones with an impedance of 50 Ohm. Cables with 75 Ohm are mostly used for video signals, while 50 Ohm cables tend to be used for data and wireless communications.

What type of coax cable is used for Internet?

Summary. RG6 cable is heavier gauge and has insulation and shielding tuned for high-bandwidth, high-frequency applications such as Internet, Cable TV, and Satellite TV signals. If you aren’t sure which cable to get, then RG6 cable is your best bet.

Which category of coaxial cable is used for thick Ethernet?

RG-8 – It is used in thick Ethernet. RG-9 – It is also used in thick Ethernet. RG-11 – It is used in thick Ethernet. RG-58 – It is used in thin Ethernet.

What is STP cable?

Shielded Twisted Pair (STP) STP cables are similar to UTP cables, where the wires are twisted together and then wrapped with a shielding or screening material which consits of foil wrapping or a copper braid jacket.

Can I use normal wire instead of coaxial cable?

As a wire it will work just fine but there are issues! In normal use, coax is used with the outer shield at ground potential and all the “signal” on the inner wire.

How do I know what type of coax cable I have?

Coaxial cables generally use the label “RG,” which stands for “Radio Guide” and is accompanied by numbers to create a code that distinguishes the cable model. Once you find the designation code, you will quickly identify the type of coaxial cable!

Is coax the same as copper?

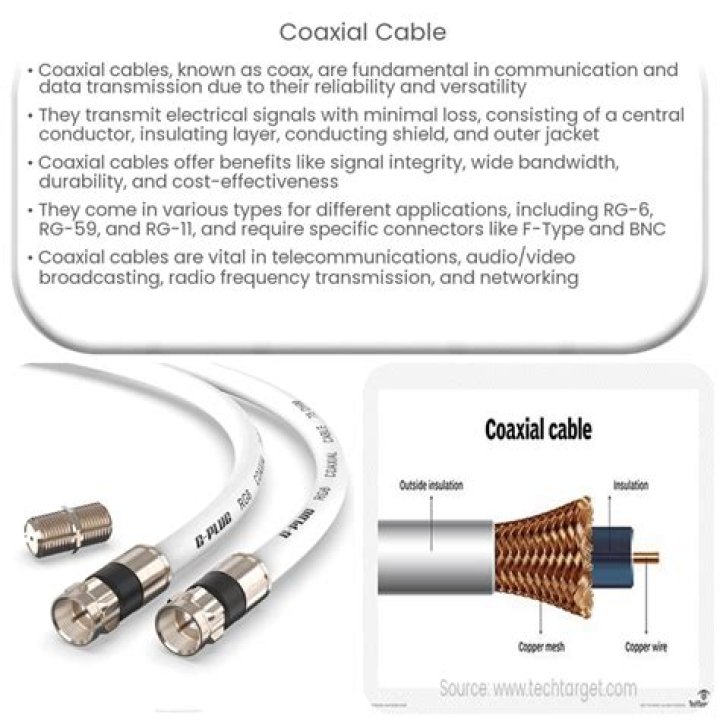

Coaxial cable conducts electrical signal using an inner conductor (usually a solid copper, stranded copper or copper plated steel wire) surrounded by an insulating layer and all enclosed by a shield, typically one to four layers of woven metallic braid and metallic tape.

Article first time published on

What is RG6 cable used for?

The RG-6 is primarily used for cable and satellite signal transmission for residential or commercial installations. This coax cable is thin and easy to bend for wall or ceiling installations and remains the preferred choice to relay cable television signals.

What coaxial cable does NBN use?

An nbn™ Hybrid Fibre Coaxial (HFC) connection is used in circumstances where the existing ‘pay TV’ or cable network can be used to make the final part of the nbn™ network connection. In this circumstance an HFC line will be run from the nearest available fibre node, to your premises.

What is RG11 cable used for?

RG11 Coaxial Cables are utilized for Wide Broadband with considerable signal transmission distance, generally used as the main cable line in transmitting observing camera data, Cable Television, etc.

What is better RG6 or RG59?

RG6 cables can carry signals at a longer distance and keep better signal quality than RG59 cables. Therefore, RG6 cables are usually used for high-frequency applications like TV connection, while RG59 cables is more suitable for low-frequency and short-distance transmission.

What is FTP cable?

The term FTP stands for foil twisted pairs. FTP networking cables often support Ethernet LAN. Twisting the cores together and covering with the foil shield helps to reduce cross–talk and electromagnetic interference. …

What is FTP and STP?

FTP/STP: STP, Shielded Twisted Pair shielding network line; FTP, Foiled Twisted Pair, aluminum foil shielding network wire; … SFTP: double shielded network wire. The structure of this wire is based on the aluminum foil of FTP/STP, plus a layer of tin-plated copper braided mesh, the outside of which is PVC.

What is CAT6 STP cable?

The extra covering in shielded twisted pair wiring protects the transmission line from electromagnetic interference leaking into or out of the cable making it ideal for mobile applications and fast data rate Ethernets. …

Which coaxial cable is used in thin Ethernet?

Thinnet is the thin coaxial cabling used for 10Base2 installations of Ethernet networking. Thinnet cabling is RG-58 coaxial cabling that is 3/16 inch in diameter and has an impedance of 50 ohms.

Which coaxial cable is thick?

10BASE5 (also known as thick Ethernet or thicknet) was the first commercially available variant of Ethernet. The technology was standardized in 1982 as IEEE 802.3. 10BASE5 uses a thick and stiff coaxial cable up to 500 meters (1,600 ft) in length.

Which cable is also called as RGB cable?

What’s an RGB cable? RGB stands for “Red, Green, Blue” and is an analog component video standard for transferring video data. … RGB offers better resolution and can carry more information than traditional RCA cables, but they can only carry video signals, so you’ll need a separate cable for audio.

Is my cable rg59 or RG6?

RG-59 has a small center conductor, a smaller foam dielectric and single shield. RG-6 has a larger center conductor, a larger foam dielectric and double or quad shield. The result is that RG-6 has less signal loss than RG-59 and is less prone to signal ingress and egress.

What can I use instead of coaxial cable?

An alternative solution is Ethernet over Coax (EoC). Also called Multimedia over Coax or MoCA. As the name implies, MoCA technology delivers Ethernet signals over the coaxial cables in the home. If your home has been wired for Cable TV service, then you have coax in the walls.

Does cable wire have copper in it?

Coaxial Cable – coaxial cable is the wire that connects to the back of your tv and cable box commonly known as cable tv wire. The Rock does not buy this type of wire the copper content is very low and there is also steel in it. … This wire is around 70 – 77% copper.

Is RG6 the same as coaxial?

RG6 Quad Shielded cables (RG6Q) and RG6 Dual Shielded cables (RG6) are both coaxial cables. Both cables can be used to set up home theaters, CATV-MATV systems, or for computer & data processing transmissions to name just a few applications. But RG6Q and RG6 cables are not interchangeable.

What is the difference between Cat6 and RG6?

Use RG6 cable to connect your TV service to your HDTV. … The Cat6 cable connects your HDTV to your home network if it is Internet-ready, and the RG6 cable transfers the signals from your TV service to your HDTV.

What is the difference between RG6 and RG6Q?

RG6 vs. The main thing that distinguishes the RG6 and the RG6Q is the kind of inner shielding used to insulate the delicate wires. The superior “quad” shielding of the RG6Q minimizes outside disturbance and thus maintains a higher integrity of signal.

Is Telstra cable HFC?

Telstra’s HFC cable network is being gradually merged into the NBN, where it offers download speeds of up to 100 Mbps and upload speeds of up to 40 Mbps.

Is NBN cable or ADSL?

Put simply, the biggest difference between NBN and ADSL connections is speed. NBN plans are available with download speeds of up to 100Mbps, while ADSL2+ has a maximum potential download speed of 24Mbps. Most ADSL2+ connections are much slower: the average Australian ADSL speed is just 8Mbps.

What is a HFC NBN connection type?

Hybrid Fibre Coaxial (HFC) is a type of nbn™ technology. This type of nbn™ connection uses the existing ‘pay TV’ or cable network to make the final part of the nbn network connection. In this circumstance, an HFC line will be run from the nearest available fibre node to your home.

What is RG in coaxial cable?

When referring to different types of coaxial cables, RG stands for “Radio Guide,” a designation derived from World War II military specifications. Each type of coaxial cable has a different RG rating to help distinguish the cables’ distinct characteristics and specifications.

Are there different grades of coaxial cable?

There are two main types of coaxial cables – ones with an impedance of 75 Ohm (Ω) and ones with an impedance of 50 Ohm. Cables with 75 Ohm are mostly used for video signals, while 50 Ohm cables tend to be used for data and wireless communications.
