How do you fix a muffler flange?

Can you use JB Weld on exhaust flange?

JB Weld ExtremeHeat is perfect for making repairs on all manner of high-heat parts, including exhaust manifolds, mufflers, catalytic converters, exhaust pipes, engine blocks, fireplaces, smokers/fireboxes, and many more crack-prone items.

How do you seal a muffler leak?

Note: Exhaust system Must Be Cool Use wire brush to remove rust and dirt and clean repair area. Wet surfaces to be sealed with water. Remove cap and puncture seal. Fit pipe and/or muffler together. Allow to dry for 30 minutes, then run engine for 10 minutes. Clean up excess sealer with water before it dries.

How do you fix a rusty exhaust flange?

How do you fix an exhaust leak without welding?

Let’s dive right in. Apply an Epoxy Bond. If the hole is small enough, you can use epoxy to seal the leak. Wrap it with Exhaust Tape. An exhaust tape is an ideal solution if you are dealing with a larger hole. Use an Exhaust Clamp. Cover the Hole with an Aluminum Patch.

Is J-B Weld good for a muffler?

HIGH HEAT RESISTANCE: Once fully cured, J-B Weld ExhaustWeld Exhaust System Repair Wrap has a temperature resistance of 1100°F, allowing it to be used on every part of the exhaust system! APPLICATIONS: Manifolds, Catalytic Converters, Mufflers, Tailpipes and more!.

How long does J-B Weld take to set?

At room temperature, J-B Weld™ sets in 4-6 hours to a dark grey color. A full cure is reached in 15-24 hours. J-B Weld™ has a tensile strength of 5020 PSI and sets to a hard bond overnight. It can withstand temperatures up to 550ºF when fully cured.

Can you use silicone on exhaust?

Hi temp silicone will be fine.

Does muffler tape really work?

Does muffler tape really work? The truth is that the jury is still out on the effectiveness of muffler tape, but most mechanics agree that it’s a temporary fix at best. Even a small hole cannot be welded because the metal on a muffler is too thin,” Hrovat says. “If it is already corroded or rusted, it can’t be welded.”Oct 2, 2019.

How thick should exhaust flanges be?

The most popular flange thicknesses available are 3/8 in. and 5/16 in. These flanges will last on most street vehicles. Thicker flanges are available for heavy duty and race applications.

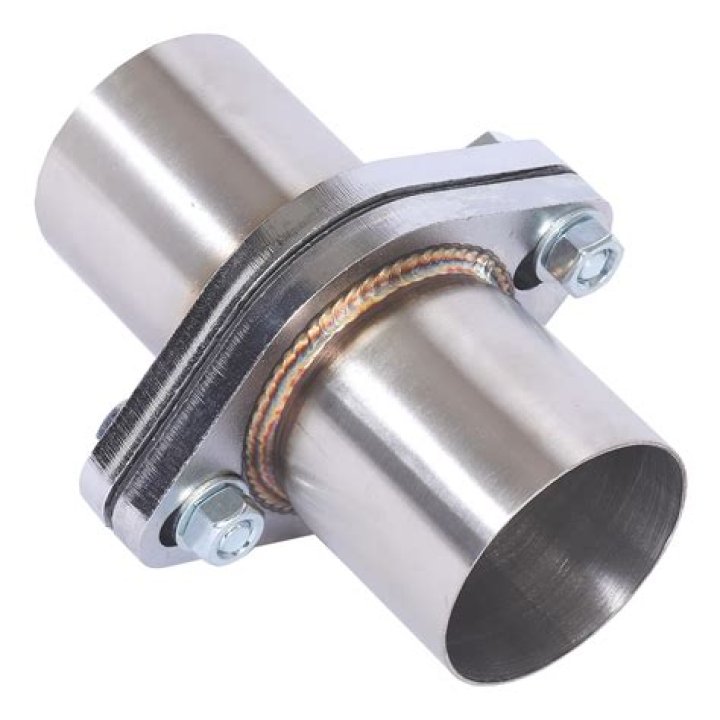

What is a muffler flange?

An exhaust flange is a piece of metal that bolts directly to the engine of your vehicle and allows for custom headers to be fabricated. They still require an exhaust gasket between the header flange and the engine/head.

How tight should exhaust flange bolts be?

Registered. Using a long 1/2 inch swivel socket, tighten the top nut of the front cylinder head exhaust flange to 9-18 in-lbs (1-2 Nm). Tighten the bottom nut to 100-120 in-lbs (11.3-13.6 Nm). Final tighten the top nut to 100-120 in-lbs (11.3-13.6 Nm).

What material is used for exhaust gasket?

Exhaust manifold gaskets may be made of embossed steel, sometimes in multiple layers. These gaskets may also be made of high-temperature fibre material, graphite, and ceramic composites, among others. Some gaskets use a combination of different materials.

How do you seal a muffler joint?

DIRECTIONS: Surface should be free of dirt, grease, oil and rust for best results. Wet surfaces to be sealed with water. Remove cap and puncture seal. Apply sealer Zv” thick around outside of pipe. Fit pipe and/or muffler together. Use sealer on all connections to insure leak proof joints.

Does JB Weld work on catalytic converters?

Will J-B Weld work on an automotive exhaust? Because of the extreme temperatures of exhaust systems, we do not recommend J-B Weld for use on exhaust manifolds and catalytic converters. Nor do we recommend the product for repairs within the combustion chamber.

Can you use high temp silicone on exhaust?

The most advanced, high temp RTV silicone gasket available. The most advanced, high temp RTV silicone gasket available. Three times more oil resistant than conventional silicones; eight times more flexible than cut gaskets. The best silicone for exhaust pipes, exhaust manifolds, and other areas subject to high heat.

How long does muffler cement take to dry?

Full cure will be affected after 24 hours of drying and driving at the maximum operating temperature. The fully cured product retains effective properties when in contact with water.

Will JB Weld adhere to itself?

Will JB Weld adhere to itself? When fully cured, J-B Weld is completely resistant to water, gasoline, and about every other petroleum product or automotive chemical.

What color is JB Weld when it dries?

Mixed at a ratio of 1:1, it forms a permanent bond with tensile strength of 5020 PSI after curing. At room temperature, J-B Weld sets in 4-6 hours to a dark grey color and fully cures in 15-24 hours.

How strong is JB quick Weld?

KwikWeld has a 1:1 mixing ratio, sets in 6 minutes and is fully cured in 4-6 hours. KwikWeld cures to a dark grey color, is rated at a tensile strength of 3127 PSI and will withstand temperatures up to 300F.

How strong is muffler cement?

800 PSI at Room Temp.

Do I need to use exhaust paste?

As said, if it’s not blowing, it’ll be fine without. If you do need to use anything though, make sure it’s the silicone style sealant.

Do you use sealant on exhaust gasket?

It’s not necessary to use sealant on the gaskets. Fel-Pro’s do with the silver looking stuff, but most exhaust manifolds come with their own sealant, or they are metal and don’t require it.

How long does muffler putty take to dry?

Permatex® Muffler & Tailpipe Putty cures by the evaporation of water and further cures with heat. Full cure will be affected after 24 hours of drying and driving at the maximum operation temperature. The fully cured product retains effective properties when in contact with water.

Can you tape a muffler together?

After you’ve owned a car for a few years, the muffler may be in need of minor repair. A small hole in the muffler can be repaired using muffler tape. This tape is designed to bond to the metal muffler using heat from the exhaust.
