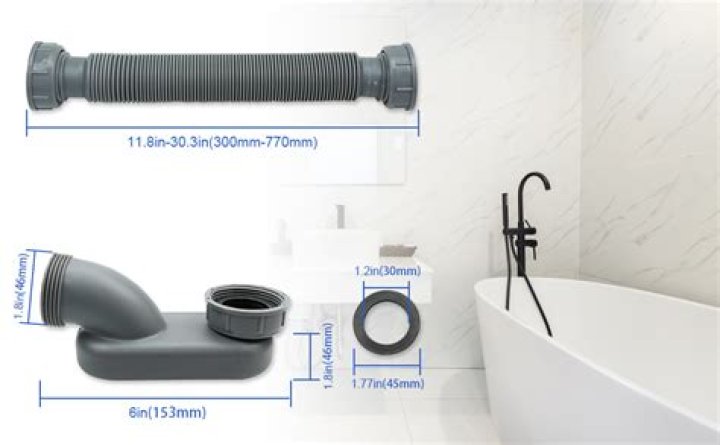

What size should bathroom tub p-trap be?

1 1/2 inches
Use a P-Trap The proper size for both a bathtub drain and trap is 1 1/2 inches in diameter, regardless of the bathtub size. The type of trap used on a tub drain is a p-trap. Because they are the same size, the trap will glue directly onto the PVC drain pipe without the use of adaptors or fittings.

What is the standard diameter of a bathroom sink drain?

1.25 inches
While a bathroom sink’s design and overall size may vary from one model to the next, the drain holes are fairly standard, 1.25 inches being a general standard, with widths of 1.5 inches and 1.625 inches also common. The size of the hole helps determine which size drain is needed for that particular sink.

Are all P traps same size?

The most common sizes of the p-traps that are used in homes are 1.5″ and 2″ traps. Most states require the washing machine, or the washing machine p-trap to be at least 2″ inches in size for proper draining.

What is the drain size for a shower?

2-inch
Keep in mind that shower drain assemblies are generally made to fit a 2-inch drainpipe, not the 1 1/2-inch pipe usually found on tubs. A 2-inch pipe is the recommended size because showers have a low threshold for flooding, and a 2-inch pipe helps the water drain faster than does a 1 1/2-inch pipe.

How do you measure sink drain diameter?

Measure the Outside Diameter (OD) of your pipe or pipe fitting:

1. Wrap a string around the pipe.
2. Mark the point where the string touches together.
3. Use a ruler or measuring tape to find the length between the tip of the string and the mark you made (circumference)
4. Divide the circumference by 3.14159.

How big is a P trap under a kitchen sink?

For example, the bathroom sink p-trap is usually 1 ¼ inch, while the kitchen sink p-trap is 1 ½ inch. Modern plumbing experts advise consumers to always have p-traps under their kitchen or bathroom sinks.

How big of a pipe do you need for a waste water trap?

Most modern waste plumbing (apart from W.C.s) use either 32mm (1.25 inch) (for hand basins) or 40mm (1.5 inch) (for sinks, baths, showers, dishwashers, washing machines) plastic pipe and fittings (including traps); pipe runs over 2m (6 feet) may use 50mm (2 inch) diameter pipe to avoid syphon effect when the waste is used.

How big of a P trap do I Need?

The 16 inch p-trap is only recommended when you don’t have enough room under the sink or if the cabinet has a shelf. The adaptor can be optional for the full Flex p-trap, but for the S-trap and SP-trap it’s absolutely necessary. The adaptor can be used over 16 inches length of p-trap.

Can A P-trap be connected to a larger drain?

Most Plumbing Codes place restrictions on how a p-trap is used and manufactured. Here are some of those limitations, restrictions, and clarifications. No trap that must depend on moving parts to retain its seal can be used. No trap outlet can be larger than the fixture drain to which it is connected. The sizes of the trap outlet matter.

What are the dimensions of a P trap?

The PVC P-Trap comes in many sizes and a few different styles. The most common sizes of the p-traps that are used in homes are 1.5″ and 2″ traps. Most states require the washing machine, or the washing machine p-trap to be at least 2″ inches in size for proper draining.

What is the standard bathroom sink drain diameter?

A bathroom sink drain hole is typically 1.25 inches in diameter. While a bathroom sink’s design and overall size may vary from one model to the next, the drain holes are fairly standard, 1.25 inches being a general standard, with widths of 1.5 inches and 1.625 inches also common.

Are all bathroom sink drains the same size?

Are all bathroom sink drains the same size? No . The size of the bathroom sink drain goes from 1 1/4 inches (32mm) to 1 1/2 inches (40mm). 1 1/4 inches is the general standard and 1 1/2 inches and 1 3/5 inches are commonly used. What is the standard weight of a bathroom sink? Weight depends on the material and its overall size.

How high is bathroom sink drain pipe at wall?

The water supply line runs out of the wall into a hole in the back of the vanity, typically placed at a height of 22 to 24 inches from the finish floor. The sink drain is then situated just 4 inches inward from the water supply line.
