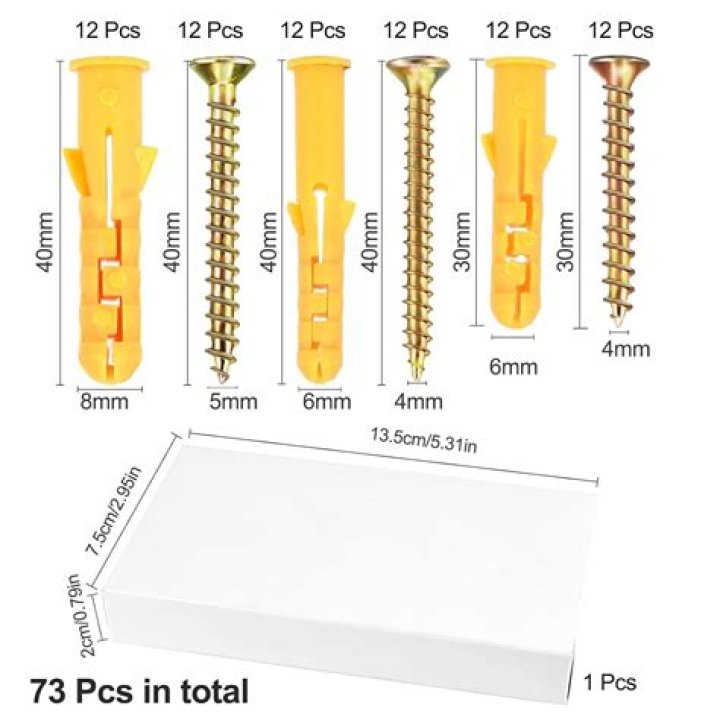

As a general rule: Yellow plugs fit into 5.0 mm holes and work best with screw sizes 3 and 4, but can be used for screw sizes 3 through 8. Red plugs fit into 6.0 mm holes and work best with screw sizes 6 and 8, but can be used for screw sizes 6 through 10.

What screws for 6mm Rawlplug?

GaugeMetric equiv.Masonry plug size43.0mmYellow (5mm hole)63.5mmRed (6mm hole)84.0mmRed (6mm hole) or Brown (7mm hole)105.0mmBrown (7mm hole)

What size plugs for 8mm screws?

Plug Diameter (mm)7mmPlug Length (mm)35mmScrew Diameter (mm)5mm (No.10) / 6mm (No.12) / 8mm (No.14)Drill Diameter7mm / 8mmApplications

What screws to use with wall plugs?

The yellow plugs shown in this example take 4mm gauge screws, the red ones take 5mm and the brown ones take 5.5mm – although wall plugs do come in lots of colours. Opt for wall plugs specifically designed for use in plasterboard if you are drilling into a stud (rather than masonry) wall.

Should a screw be longer than the wall plug?

A wallplug holds the screw securely into the wall. The screw, and hole, should be longer than the plug! The screw should go all the way through the wallplug and split it open to force the tightest possible fit with the wall. For most DIY jobs a bog standard plastic Wallplug will suffice.

What size is a number 6 screw?

THREAD DIAMETERSizeNearest FractionMillimeter#69/643.3#85/324.2#103/164.8

What is a 6mm screw?

M6 threads are 6mm metric screws. The standard metric rack screw is called M6 x 1. … Metric threads are used outside of the USA, and commonly in products by HP and other global entities. You can identify an M6 screw by measuring the diameter with a ruler. It’ll be 6 mm, or slightly more than 7/32 inches (0.228″).

How do I know what screws to use?

1. I highly recommend using premium or multi-purpose screws, such as Spax, GRK or Hillman.
2. Get flat headed screws, the ones with the tapered heads for countersinking.
3. If you can, use square or star drives.

How do I know which screw to use?

The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4. The other factor is the screw’s diameter, or gauge. Screws come in gauges 2 through 16. Most of the time you’ll want to go with a #8 screw.

How do I know what drill bit to use for a wall plug?

For a concrete wall and a plastic plug, choose a bit that is slightly smaller than the plug. This should allow to be driven in with a light tap of a hammer and is called an interference fit. If it is a concrete wall and a steel anchor, then you have to drill the wall almost exactly.

Article first time published on

What is a number 8 screw?

SizeMajor Thread Diameter*DecimalNearest Fractional Measurement#8.164″5/32″#9.177″11/64″#10.190″3/16″

What is a number 10 screw in MM?

GaugeMetric diameter (mm)Pilot Hole size (mm)63.52842.51053125.53.5

What size is 8 screw?

A #8 screw size is . 164 fraction of an inch. The diameters listed in the chart below are in fractions of an inch, so the #12 is just shy of 1/4 inch.

How do you match screws to wall plugs?

Match the wall plug to the screw. As a general rule: Yellow plugs fit into 5.0 mm holes and work best with screw sizes 3 and 4, but can be used for screw sizes 3 through 8. Red plugs fit into 6.0 mm holes and work best with screw sizes 6 and 8, but can be used for screw sizes 6 through 10.

What are GREY wall plugs for?

The Uno Rawlplug heavy-duty pack of 40 universal plugs in grey is ideal for a variety of base materials, hollow or solid. With their unique split design, they provide secure anchorage, while the anti-rotation feature prevents them from spinning in the hole.

How much weight can a brown wall plug hold?

They can support loads of 20 to 50 kg. Once a hole has been drilled, you just need to insert the whole fixing into the hole (anchor and screw) and crimp the anchor. Crimping causes the wings to spread and pull back against the plasterboard in an umbrella-like shape.

What size is M6 in MM?

SizeClearance Hole mmTapping Drill (fine pitch)M55.5M66.55.25 mmM897 mmM10119.0 or 8.75 mm

What diameter is M6?

ThreadMajor DiameterPitch DiameterM44.03.545M4.54.54.013M55.04.480M66.05.350

What size head is an M6 bolt?

SizeHead DiameterHexagon Socket SizeM4-0.78.962.50M5-0.811.203.00M6-1.013.444.00M8-1.2517.925.00

What is a 6 32 screw?

#6-32 UNC screw The #6-32 UNC is a UTS screw specifying a major thread diameter of #6 which is defined as 0.1380 inches (3.51 mm); and 32 tpi (threads per inch) which equates to a thread pitch of 0.031250 inches (0.7938 mm). … It is by far the most common screw found inside computer cases.

What size hole to drill for a #6 screw?

Screw SizePilot hole size for hardwoods*Pilot hole size for softwood**#55/64″1/16″#63/32″5/64″#73/32″5/64″#81/8″3/32″

Which is bigger #6 or #8 screws?

Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

What do screw size numbers mean?

Screw sizes are designated by a number that indicates the diameter and the length of the screw in inches (Table 10-2). The smallest diameter screw is 0, and the largest commonly available is 24. For bench work, the most useful sizes are 4 through 12. Of those sizes, 6, 8, and 10 are probably used more than any others.

Why do some screws have no threads at the top?

Having an unthreaded shank at the top allows the tip of a wood screw to pull the screw into the wood just as a regular screw would. The difference is that the shoulder portion of the screw will actually slide through the first layer of wood and pull it against the head.

How do you know what size screws to get?

To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side. This is called the major diameter and will usually be the proper size of the bolt.

What screws to use on 2x4?

The most common screw for joining two-by-fours is hardened steel, structural, No. 9, 2 1/2 inches long with a Phillips head. Other screw types appropriate for studs are specialized and may be harder to find and more expensive. It’s important that the screw is designated as a structural screw or a deck screw.

What is the most common screw size?

The most common size is #8 (approximately 5/32-inch in diameter), but the appropriate size of screw will depend on your individual project.

What is a 6 mm drill bit?

6mm is 0.2362198 inches. 15/64 is 0.234 inches. That’s about as close as you can get in fractions.

How many MM is a 1/8 drill bit?

Drill sizeDiameter (in)Diameter (mm)1/8 in0.12503.17509/64 in0.14063.57195/32 in0.15633.968811/64 in0.17194.3656

What can I use instead of a 5/16 drill bit?

5/16 converts to 10/32. Assuming your bit set is that granular, the next larger size is 11/32, and the next smallest size is 9/32. Those aren’t necessarily common sizes, however. The next size up in x/16 would be 6/16, which is 3/8.
