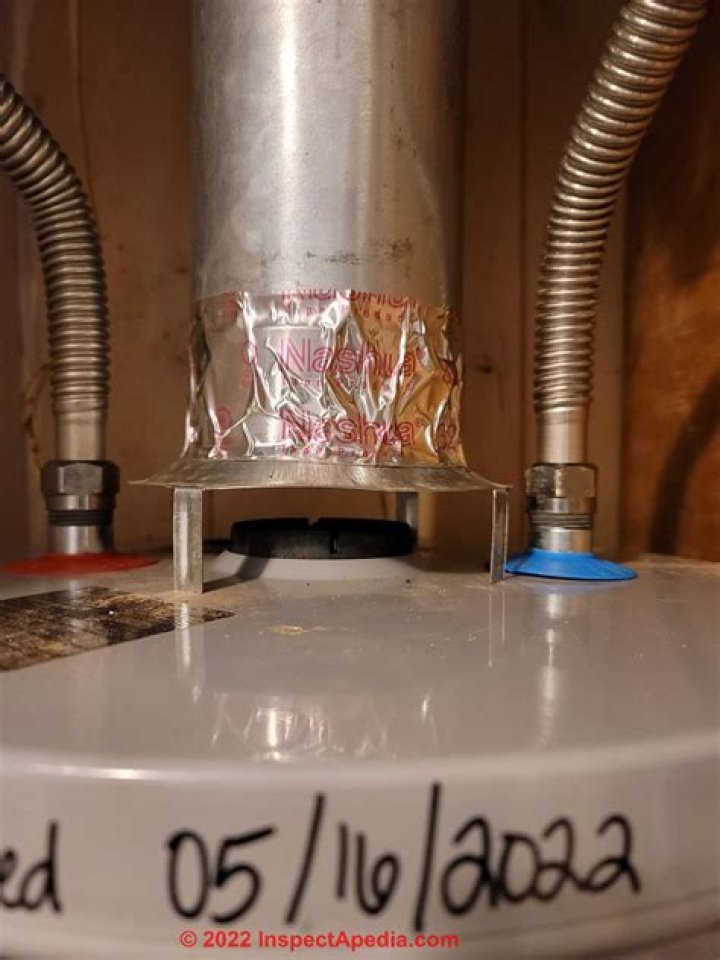

What size pipe connects to water heater?

In most cases, the main pipeline from the street to your home is either 3/4 or 1 inch in diameter, supply branches use 3/4-inch-diameter pipe, and pipes for individual components are 1/2 inch. Standard these days is 3/4, standard used to be 1/2.

What size pipework is usually used to connect a radiator in a domestic system?

The radiator circuits in most modern wet central heating systems are made from standard 15mm copper pipe, while the pipes that link the boiler, pump and points where the circuits split off will be 22mm or 28mm in diameter.

How far can you run 3 4 water line?

3/4 Inch Is Okay | 1 Inch Is Better Plumbers and builders know that people rarely turn on more than three or four plumbing faucets at the same time. But it can happen.

Which side of radiator is flow and return?

Normally (but not necessarily!) the flow is on the left as you look at the rad. What is the orientation elsewhere in the house? it is likely (but not necessarily!) going to be the same.

Can you mix Microbore and 15mm?

Yes. What’s the distance out of intrested.

Can Blue PEX be used for hot water?

Red PEX pipe carries hot water. Blue PEX pipe carries cold water. White PEX pipe can be used for either hot or cold water. Gray PEX pipe, like white, can be used for either hot or cold water (although not all DIY centers carry gray).

How many radiators can you feed through a 15mm pipe?

The number of radiators which can be fed through these 15mm pipes will depend upon the length of the 15mm pipe runs – the longer the run, the fewer radiators. The illustration above shows two branches each feeding two radiators.

What kind of pipe does a steam radiator use?

Downfeed steam piping that enters at a radiator top will always be two-pipe steam heat systems and the condensate return will always be take off of the bottom of the radiator. [14] . Shown in the ITT sketch are Hoffman Traps.

Is the minimum size water heater inlet pipe 1 / 2 or 3 / 4?

So a 3/4” inlet pipe would be the minimum for most homes. Just to be sure, we checked with our plumber, James Freeman, of J.W. Freeman Plumbing in Gainesville. “You need to know how many fixtures are being fed by the water heater, and then use the tables in Appendix E of the Florida Plumbing Code,” according to James. “Most homes will need 3/4”.

How is a steam radiator connected to a water heater?

C conversely, hot water radiators are usually connected by nipples at each radiator section top and bottom.. There are also upfeed steam pipe systems that may feed into the steam radiator at its top – through a Hoffman Supply Valve (sketch at left – ITT).

Which is the best water heater supply line?

Water Heater Parts Water Heater Supply Lines Water Heater Supply Lines Apollo Falcon Stainless JONES STEPHENS Polymer Braided Rubber Product Height (in.): Less than 5 Shop Savings 109Results Sort by:Top Sellers

What kind of pipe do I need for my radiator?

You’ll first need to determine what kind of pipe you have, which should be relatively easy just by looking at the pipe. Most old-fashioned radiators are cast iron, but some newer models may be stainless steel, aluminum, or ceramic-coated.

What kind of radiators do most people use with loop heating?

Each zone consists of a single loop made up of the pipe and the radiators. The water flows out of one radiator into the next. Q: What sort of radiators do most people use with loop hot water heating? A: Usually fin-tube baseboard. In fact, it was this type of radiation that first made the loop method of heating so popular in the early 1950s.
