What size gas line do I need for my furnace?

Generally, 1-in supply pipe is adequate for furnace inputs up to 125,000 Btu/h. A 11⁄4-in pipe is recommended for higher inputs. The inlet gas supply pipe size should never be smaller than 1⁄2 in. The gas line from the supply should serve only a single unit.

What size gas line do I need for a 22kw generator?

A 3/4” line will feed alot of appliances. The secondary regulator at generator drops the pressure for appliance. It has a regulator at the tank and then goes to this 3/4″ black hose which then goes down to a yellow 3/4″ plastic pipe.

How many Btus can a 2 inch pipe carry?

450,000 BTU
2″ Pipe = 45 GPM = 450,000 BTU/hr.

How do you calculate a gas line?

To obtain the cubic feet per hour of gas required, divide the input of the appliances by the average Btu (kW. h) heating value per cubic foot of the gas. The average Btu per cubic foot in the Bay Area is 1,100.

How big of a gas line do I Need?

Section 1, supplying outlets A and B, or 35 cubic feet per hour requires ½ inch pipe. Section 2, supplying outlets A, B, and C, or 94 cubic feet per hour requires 3/4 inch pipe. Section 3, supplying outlets A, B, C, and D, or 230 cubic feet per hour, requires 1 inch pipe.

How is the length of a gas line determined?

The average Btu per cubic foot is 1,100. Longest Length Method. The size of each section of gas piping shall be determined using the total length of piping from the meter to the most remote outlet and the load of that section (see calculation example in “Figure A” use steps 1- 6 below:

How to calculate the capacity of a natural gas line?

The capacity of a low pressure natural gas (less than 1 psi, 6.9 kPa) pipe line with a small pressure loss can be calculated with the Spitzglass formula. q = 3550 k ( h / l SG) 1/2 (1)

How long is one cubic foot of LP gas?

– One cubic foot of LP gas – 2516 BTU This chart refers to low pressure LP, after regulation, Standard nominal pressure at the burner for Liquid Propane Gas is 11” of water column. Pipe length must include additional length for all fittings. Add approximately 5 feet of pipe per fitting.

What should be considered when sizing gas lines?

When sizing gas piping systems certain factors must be considered. Piping must be sized to supply enough gas for all appliances to operate at the same time. To determine this you must add the BTUs of all of the appliances in the system and take into consideration the type of metal the pipe is made from.

How big of a gas line is needed for a generator?

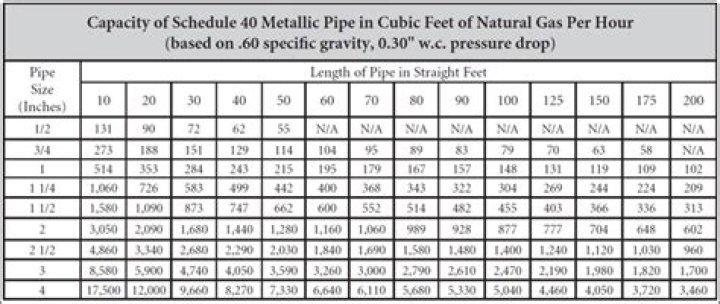

Natural Gas Pipe Line Sizing Chart Example of a pipe system for a residential home Make sure the gas line can handle your generator To add a generator to a gas system you have to make sure you do not “starve” the other appliances. Often, the sizes can be modified for emergency use.

How big is a natural gas line fitting?

Add approximately 5 feet of pipe per fitting. Natural Gas Example: A machine with a burner that requires 440,000 BTU would need a 1 -1/4” pipe for a 20” long run. NOTE:The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations.

What should I do if my gas line is too small?

If the gas line is undersized the appliances will operate inefficiently and could lead to equipment failure and sooting. If you are adding appliances to an existing system and are finding that the line size may be too small, install a 2 PSI regulator with Maxitrol regulators at the appliance.
