What Size Breaker For Stove

What size do you use for a heater?

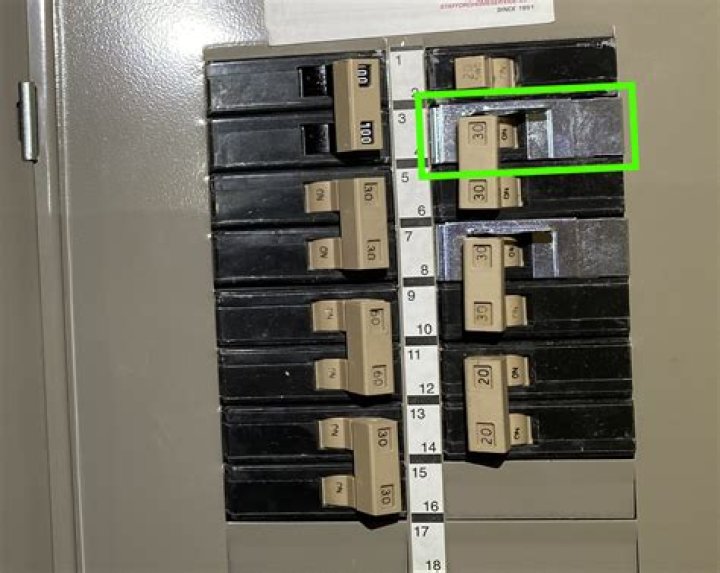

The recommended switch size for the range is 50 amps, 220 volts. It's a double switch. Simple switches are usually 110 volts. Only one circuit must be assigned to the stove, i.e. no other device or socket can be controlled via the circuit.

How many amps does a stove consume exactly?

A standard range with four burners and an oven can draw 30, 40 or 50 amps. But a large commercial device, or one with features like a convection oven or high-speed burners, draws 50 to 60 amps.

You may also be wondering, can I use 10 3 wires for heating?

A typical electric dryer and most stackable combo units require a 30A120 / 240V circuit with a 10/3 wire. This diagram shows that for a standard 240V up to 30A electric range / oven, a 10/3 wire is fine.

Can I also use a 40 amp breaker for a heater?

our hob / oven has 40 amps and a power of 12.5 kW. Yes, if you need to add or use 50A you need to use at least 6 gauge cables. If this is not possible, the 8 wire can overheat and the 50A breaker cannot trip or trip because it is higher. Always match the cable to the switch.

Can you use a 30 amp breaker for an electric stove?

Local and national electrical codes also apply to power in this area. Using a 30 amp breaker and 6 gauge wire should not cause problems as long as the wires are installed in accordance with local and national codes. The more restrictive 30 amp breaker is safer than a 40 or 50 amp breaker.

How many watts can a 30 amp breaker handle?

A 30 amp outlet produces 3600 watts (30 amps for 120 volts). Therefore, the switch on the outlet could transmit the code and still activate somewhere between a total load of 2880 watts (80% of 3600 watts) and 4320 watts (120 percent of 3600 watts).

Can a 10 gauge cable handle 40 amps?

12 gauge wire is fine for 20 amps, 10 gauge wire is fine for 30 amps, 8 gauge is fine for 40 amps and 6 gauge is fine for 55 amps and the switch or fuse is still sized to fit to the protection of the conductor].

Can I use 10 2 wires for the stove?

You need 3 wires + ground. Ground wire 102 must not be used as a neutral conductor. The device most likely uses both 120V and 240V. Good luck with your project.
