What size are bathroom water lines?

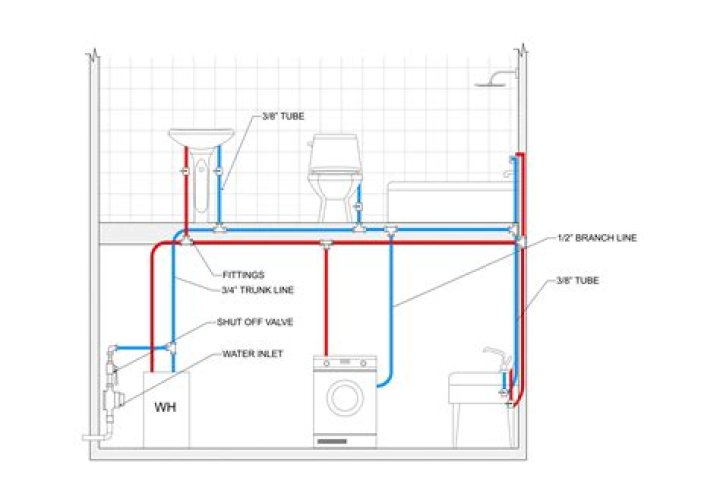

The main pipes, which come off the main water supply, typically measure 3/4 inches in diameter. The branch lines, which feed individual fixtures, typically measure 1/2 inch in diameter.

Where are water pipes in bathroom?

Bathrooms. For the most part, plumbing in bathrooms is not always visible as it is usually located under fixtures and behind walls. Like the kitchen, the sink’s supply and waste pipes will be located underneath a cabinet or vanity.

Why do I have 3 water lines?

The first pipe brings cold water into the faucet. The second pipe bring cold water from the faucet into the water heater. The third pipe brings warm water from the heater back to the faucet.

How are water lines installed in a bathroom?

Locate the water valves and turn them off. Install the water lines. You will need to run 5 water lines into a standard bathroom: a hot and cold line for both the bathtub/shower and the sink, and a cold water line for the toilet. You can either run these lines through the wall or up from the floor, depending on the location of your bathroom.

Can a flexible water supply line be replaced in a bathroom?

Complete steps to replace bathroom sink water supply lines. If a bathroom faucet flexible water supply line or a rigid metal water supply line under a bathroom vanity is leaking, with a little bit a patience and skill, it can easily be removed and replaced. The rubber gasket on flexible water supply hoses can crack and leak.

How tall should the water line be in a bathroom vanity?

Before installing a new sink in your bathroom vanity, mark off the water and drain lines according to industry standards. The water supply line runs out of the wall into a hole in the back of the vanity, typically placed at a height of 22 to 24 inches from the finish floor.

What kind of pipe do you need to plumb a bathroom?

After the stops for sink and toilet, 3/8 supply line is needed to connect to sink faucet or toilet. From well pump to pressure tank 1″ PVC, pex, or copper pipe. If city water, 1″ or 3/4 PVC, pex, or copper pipe is used. 3/4 inch cold water line to water heater and 3/4 out of water heater for hot water and 1/2 for 3 fixtures. Thanks!

What is standard toilet water line?

Water Supply. The supply line to the toilet is standard 1/2-inch copper pipe. This standard is used throughout the home to supply faucets, showers and any other appliance requiring water, including the washing machine.

What is the size of a water line?

Most all homes have two sizes of waterlines — ½ inch and ¾ inch (inside diameter). ¾ inch waterlines are generally only used as the main waterline leading in and out of the water heater. ½ inch is generally used everywhere else in the home.

What size is a sink water supply line?

Sink drain lines are typically between 18 and 20 inches above the finished floor. Water supply lines are usually just a couple of inches higher, between 20 and 22 inches from the floor, and installed one to each side of the drain line. These heights are compatible with most common vanity sinks.

What is a toilet line?

The supply line in a toilet system is a flexible line that supplies the water to the toilet.
