It’s an electrical wiring method where PVC insulated wires are placed in plastic casings and covered with a cap. … The casing and capping system is often used for household wiring, wire distribution, protection to other wiring systems, offices, and devices with low voltage use.

What is wood casing wiring?

This wiring is used for V-shaped grooves and usually two in number. … These wires are laid in grooves and the casing is covered by a rectangular strip of the same width, that called capping and that was fitted by means of a screw.

What is wooden casing and capping wiring?

The casing consists of V-shaped grooves (usually two to hold the cables of opposite polarity in different groves) and is covered at the top by means of rectangular strip of wood, known as capping of same width as that of casing. …

What does capping a wire mean?

Capping off electrical wires is necessary to safely remove a device from a circuit. A wire capable of being made hot by turning on a circuit breaker or replacing a fuse needs to be capped off if not connected to a load or some electrical device. An energized wire is a shock hazard to a person making contact with it.

What can I use to cover exposed wires?

Electrical tape is the simplest method of making electric wires safe. You also use tape on capped live electric wires as an extra precaution. Tapes can be used on loose live wires that do not fit the cap. You can simply use tape over the live wire to fit into the cap.

How is concealed wiring done?

01. As a word suggest concealed means “Hidden”. So, this wiring is done inside the floors/walls and it is further concealed/ hidden by plastering the wall. In other words, using plastic or electrical wiring inside a wall, ceiling or floor with plastic or metallic piping is called secret concealed conduit wiring.

What is advantage of casing capping wiring?

Advantages of Casing Capping Wiring This wiring system is way cheaper than sheathed and conduit wiring systems. It is considered safe from smoke, dampness and humidity. Customized installation can be done in this wiring system. Reduced risk of electric shock can be expected.

Are capped wires safe?

Yes. This is not only safe but best practice. Tuck the capped wires completely into the junction boxes to avoid accidentally snagging on passing ladders, wallboard, etc. If the room continues in general use then install blank cover plates.

How do I terminate a wire?

1. Prepare the Bare Ends of the Wires. With the electrical wire stripper, cut off any bare ends of wire down to the wire coating to tidy them up. …
2. Place Wire Nuts on the Wires. …
3. Add Electrical Tape to Individual Wires. …
4. Push the Wires Into the Box. …
5. Add the Blank Wall Plate to the Box.

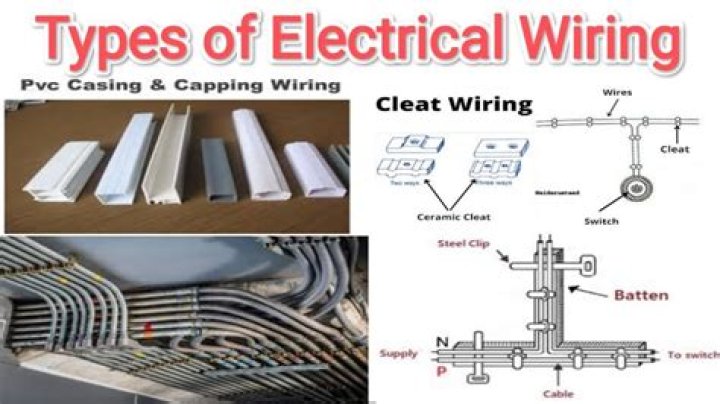

What are the different types of wiring method?

• Cleat Wiring. This wiring comprises of PVC insulated wires or ordinary VIR that are braided and compounded. …
• Casing and Capping Wiring. …
• Batten Wiring. …
• Lead Sheathed Wiring. …
• Conduit Wiring.

Article first time published on

How many types of wire are there?

And there are three basic house wiring types that each outlet has points for, namely live wire, a neutral wire, and the ground wire. The wirings help electric current to reach every room of a house from the main panel. The switch circuit panel in each room helps the manual control of electricity flow to the appliances.

What is conduit wiring?

Among the types of electrical wiring, conduit wiring is the best system of wiring. The conduit wiring is done by using a conduit, which is simply the channels or tubes that provide path and protection to the electrical wiring.

What do you do with exposed wires outside?

Painting Your Cable Wires or Cable Raceway If your cable wires are going to be attached to the outside of your home, consider painting them or the tubing they are housed in to match the exterior color. You can take a chip of your house’s paint and match it at any paint store for the most effective coverage.

How do you cover exposed wires without electrical tape?

1. Heat- Shrink Tubing. Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks when exposed to heat. …
2. Wire Nuts. They are also known as wire connectors or wire caps. …
3. Friction Tapes. …
4. Duct tape.

How do you protect wires outside?

Run electrical cable in PVC conduit at least 12 inches deep in the ground. The easiest way to protect outdoor electrical wiring from damage is by burying it 12-in. underground in PVC conduit.

What are the advantages and disadvantages of casing and capping wiring?

Benefits or advantages of casing capping wiring ➨This wiring type is strong and durable. ➨It is very easy to customize the wiring. ➨The wiring is safe from smoke, dust, rain, steam etc. ➨There is no risk of shock to human being due to casing and capping.

Which of the following are advantages of casing?

• This wiring system is way cheaper than a sheathed and conduit wiring system.
• It looks beautiful.
• There is no risk of mechanical shock.
• The alternation is possible in this system.
• It is cheaper compared to a steel conduit and sheeted wiring system.

What is PVC casing capping wiring?

As the name referred in this wiring, PVC insulated wires are placed in plastic cashing and covered with cap. … The cashing is of rectangular cross section as shown. The color of cashing channel and cap are normally white or grey.

Is concealed wiring safe?

Advantages of concealed conduit wiring system: It is the safest wiring system. Maintenance is easy. No risk of electrical shock, in case of proper earthing and grounding of metallic pipes. There is no change in the fire.

What is concealed wiring installation?

Concealed conduit electrical wiring systems are a popular choice in domestic premises as they are aesthetically appealing. They are the most commonly used house electrical wiring system as it protects the wires from external damage and increases their longevity.

What is CTS wiring?

In the CTS wiring system, CTS stands for Cable tyre sheathed. It is the type of internal wiring. Electrical wiring is the electrical power distribution through the wires in a perfect manner for economic use of wiring conductors inside a room or building with better load control.

What is the most commonly used method of wire termination?

Crimping is the most commonly used method of wire termination, and is most efficient for high-volume wire termination.

Can you put electrical tape directly on wire?

Electrical tape works the best when it adapts to the object it is being applied to. When you go to apply your electrical tape to a cord or piece of wire, you should stretch the tape as you wrap. When the tape is stretched as its being applied, it will provide more insulation protection than when it is applied loosely.

Can you leave dead wires in a wall?

It’s acceptable to leave wire in the walls. The only thing you need to do is leave the ends exposed in boxes and wire nut and tape the to legs together. That will indicate to an electrician what’s going on, and if someone does try to tie into them in the future it will just pop the breaker.

Is duct tape OK for electrical wires?

Duct tape is a multi-purpose utility product and is NOT a suitable electrical tape substitute where electricity is concerned. Electrical tape is specifically designed and produced for meeting the day-to-day needs of electricians and is the only appropriate choice when adhesive tape is required in an electrical context.

Can electrical tape catch fire?

Can electrical tape catch fire? Although most reputable brands of electrical tape will have decent thermal properties (generally to cope with temperatures up to around 80 degrees Celsius), many varieties of insulation tape are indeed flammable if they’re allowed to get hot enough.

What are the 5 types of wires?

• Communications Cable. Coaxial Cable. …
• Direct-Buried Cable (DBC)
• Non-Metallic Sheathed Cable (NM, NM-B)
• Metallic Sheathed Cable (Armored Cable, AC or BX, MC) Armored Cable (AC) …
• Multi-Conductor or Multicore Cable:
• Paired Cable.
• Portable or Extension Cord.
• Ribbon Cable.

Which material is used for wiring?

Electrical wire is made of materials like copper, aluminium and silver. As silver is expensive, mostly copper and aluminium are used in wiring.

Which wiring method is best?

Surface conduit wiring is used in industrial applications to connect heavy motors. Concealed wiring is used in residential applications and is the most popular of the basic wiring methods for residential use because it is safer and aesthetically pleasing.

What is difference between cable and wire?

The basic key difference between wires and cables is that a wire is a single conductor whereas a cable is a group of conductors. … And in case of cables, they run parallelly and are twisted or bonded together to form a single case.

What wiring is used in houses?

The most common type of home electrical wiring is the NM cable, also known as the Romex cable, after the most popular electrical wiring brand name. The NM cables contain three or more individual conductors, wrapped together in a sheathing, which is a flexible plastic jacket.
