What is water supply fixture units?
Olivia Shea What is water supply fixture units?
A fixture unit is equal to 1 cubic foot (0.028 m3) of water drained in an 11⁄4 inches (32 mm) diameter pipe over one minute. One cubic foot of water is roughly 7.48 US gallons (28.3 l; 6.23 imp gal). A Fixture Unit is used in plumbing design for both water supply and waste water. This is called “fixture unit” (FU).

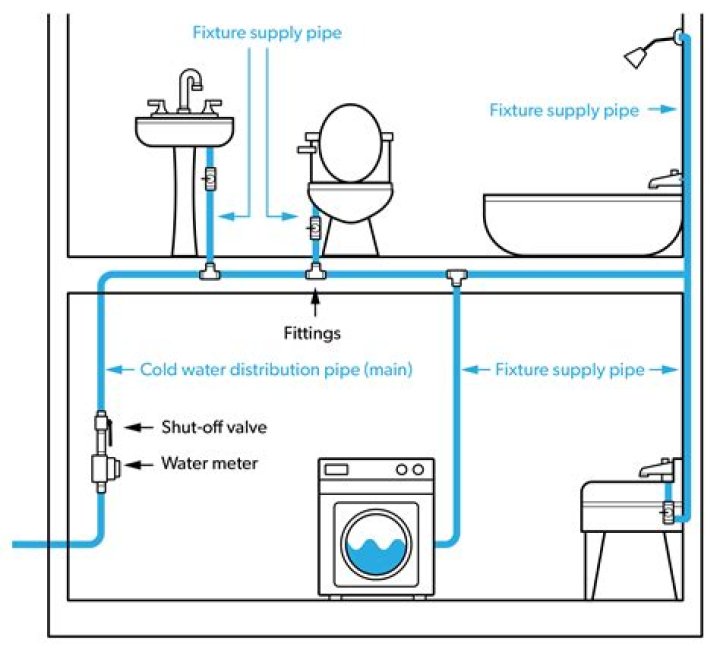

What are the different water supply fixtures?
The most common plumbing fixtures are bathtubs, sinks, showers, tubs, toilets and faucets. While a fixture can be fixed into walls or the floor, a fitting is an item that can be hung by a hook, screw or nail. Various types of pipe fitting are available in plumbing systems for different purposes and functions.
How many fixture units is a water closet?
P3004. 1 DWV System Load
| TYPE OF FIXTURE OR GROUP OF FIXTURES | DRAINAGE FIXTURE UNIT VALUE (d.f.u.)a |
|---|---|
| Laundry tub | 2 |
| Shower stall | 2 |
| Water closet (1.6 gallons per flush) | 3 |
| Water closet (greater than 1.6 gallons per flush) | 4 |
How many fixture units is a flush valve?
Water supply fixture units (WSFU) for typical non-potable applications. 1
| Appliances, appurtenances, or fixtures | Minimum fixture branch pipe size (inches) | Water supply fixture units (WSFU) |
|---|---|---|
| Public | ||
| Urinal, 1.0 gpf2 flushometer valve | 3/4 | 4.0 |
| Urinal, > 1.0 gpf flushometer valve | 3/4 | 4.0 |
| Urinal, flush tank | 1/2 | 5.0 |
How do you calculate fixture units?
A fixture unit is equal to one cubic foot of water drained in an 1 1/4 pipe over one minute (≈ 7.48 US gpm, ≈ 0.47 l/s).
What are the types of fixtures?
Following are the 10 different types of fixtures:
- Turning fixtures.
- Milling fixtures.
- Broaching fixtures.
- Grinding fixtures.
- Boring fixtures.
- Indexing fixtures.
- Tapping fixtures.
- Duplex fixtures.
How far can you run a 1 water line?
400 feet is too long for a 1″ pipe in most cases. I would increase it to 1 1/2″ or even 2″ to avoid the pressure loss caused by that distance. At that size, PVC is about the mose economical and if installed properly will give few problems.
How do you calculate water service size?
There are three steps to calculating the proper size for a plumbing piping system:
- Add up the total number of water supply fixture units (wsfu) required in the facility.
- Estimate demand using the table from the IPC that correlates wsfu to expected demand.
- Size the pipe using demand vs.
How is a water supply Fixture Unit determined?
Supply loads in the building water distribution system shall be determined by total load on the pipe being sized, in terms of water supply fixture units (w.s.f.u.), as shown in Table P2903.6, and gallon per minute (gpm) flow rates [see Table P2903.6 (1) ].
What is the minimum supply branch pipe size?
The listed minimum supply branch pipe sizes for individual fixtures are the nominal (ID) pipe size. Reduced fixture unit loading for additional hosebibbs is to be used where sizing total building demand and for pipe sizing where more than one hose bibb is supplied by a segment of water distribution pipe.
How are plumbing fixtures determined in Michigan code?
Plumbing fixtures shall be provided for the type of occupancy and in the minimum number shown in Table 403.1. Types of occupancies not shown in Table 403.1 shall be considered individually by the code official. The number of occupants shall be determined in accordance with the Michigan building code.
How big is a mimimum water supply pipe?
Mimimum fixture branch pipe size refers to the size of the cold branch pipe, or both the hot and cold branch pipes. The listed minimum supply branch pipe sizes for individual fixtures are the nominal (ID) pipe size.
Supply loads in the building water distribution system shall be determined by total load on the pipe being sized, in terms of water supply fixture units (w.s.f.u.), as shown in Table P2903.6, and gallon per minute (gpm) flow rates [see Table P2903.6 (1) ].
The listed minimum supply branch pipe sizes for individual fixtures are the nominal (ID) pipe size. Reduced fixture unit loading for additional hosebibbs is to be used where sizing total building demand and for pipe sizing where more than one hose bibb is supplied by a segment of water distribution pipe.
How big is a standard water supply pipe?
Water Supply Fixture Units (WSFU) and Minimum Fixture Branch Pipe Sizes Appliances, Appurtenances, or Fixtures Private Public Drinking Fountain or Water Cooler 0.5 0.5 Hose Bibb 2.5 2.5 Hose Bibb, Each Additional 1.0 1.0 Lavatory 1.0 1.0
Where does Board of water supply RP need to be installed?
The Board of Water Supply (BWS) requires a Reduced Pressure Principle Backflow Prevention Assembly (PR) to be installed immediately behind your meter and in front of any trees or branches. The installation of the RP must be verified by one of the CCCS technicians prior to conversion to Agricultural Water Rate.
