What is water hammer in pump?
Daniel Foster What is water hammer in pump?
Water hammer (also waterhammer) is a pressure surge that can arise in any pumping system that undergoes an abrupt change in its rate of flow and usually results from pump starts and stops, the opening and closing of valves, or water column separation and closure.

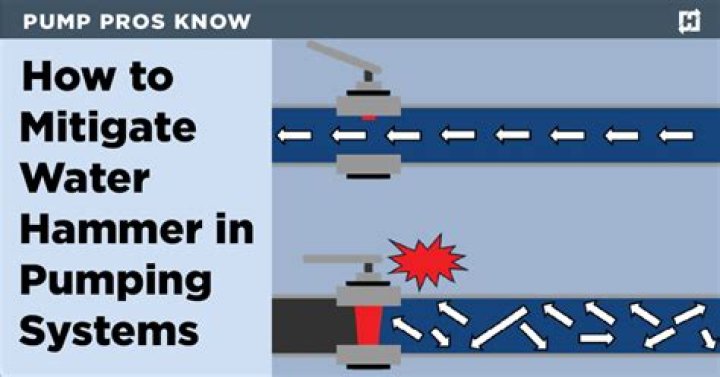

How do you stop water hammer in pipelines?
They can include the following:
- Remove the cause of the hammer.
- Reduce the pumping velocity.
- Make the pipe stronger.
- Slow down valves, or use ones with better discharge characteristics in the pipe system.
- Use surge tanks.
- Use surge alleviators.
- Use pump flywheels.
- Use pressure relief valves.
Is water hammer bad for pipes?
Water hammer is a serious problem that will cause erosion and damage to the pipes, valves, fittings and can cause pipe bursts. Modern plumbing systems are designed with chambers of air to ease the damage caused by water hammers.
What causes a water hammer in a pump?
A “Water Hammer” in pipe or tube is a pressure spike caused by sudden variation of flow rate. Water hammers can be created if. valves opens or closes to fast. pumps suddenly stops or starts.
Can a pipeline be damaged by a water hammer?
If the intensity in the shock wave is high, physical damage to the system can occur. The water hammer pressure spike in a pipeline caused by a closing or opening a valve can be estimated as
What should normal pressure be for water hammer?
The simple fix is to choose a solenoid valve or other valve type that has a slower response time. A common cause of water hammer is high water pressure. If your pressure is running near 100 psi, then it’s likely the cause of your issue. Normal pressure should be approximately 30 to 55 psi.
How does a hydraulic ram pump pump water?
Hydraulic Ram Pumps are very old technology that pump water using gravity and 2 valves to generate a repeating water hammer effect. The “hammer” pounds a little of the drive water into a pressure tank then up the delivery hose for your use. Why is it green?
What causes water hammer on a water pump?
The column of water flowing through the pipe also has a perfectly flat leading edge that matches that of the cross sectional ID of the pipe. When the leading edge of the water column reaches the downstream valve, it closes at nearly the speed of light and entraps no air ahead of the water column.
What does H stand for in water hammer?
Values for “h” are always referred to a datum, (e.g. mean sea level, axi- al centreline of pipe and pipe crown etc.). As a rule, system designers start by determining the steady-state operating pressures and volume rates of flow. In this context, the term steady2means that volume rates of flow, pressures and pump speeds do not change with time.
The simple fix is to choose a solenoid valve or other valve type that has a slower response time. A common cause of water hammer is high water pressure. If your pressure is running near 100 psi, then it’s likely the cause of your issue. Normal pressure should be approximately 30 to 55 psi.
Which is the correct formula for water hammer?
It takes the form of Tc = 2L/a (where L is the pipe length and a is the velocity of the wave, which is the speed of sound). In a 1,000-ft pipe, the wave can make a complete round trip in less than one half second.
