What is thermal cut off switch?
Andrew Henderson What is thermal cut off switch?

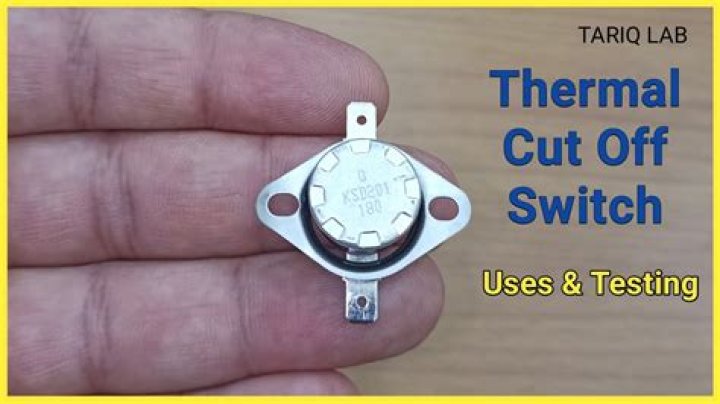

The term “Thermal Cutoff Switch” generally refers to how the switch is used, ie. It cuts off the current to critical machinery when a temperature limit is exceeded preventing potential burn out or failure. In their most basic form, they can be found on home appliances such as dryers for over temp protection.
How do you test a thermal cutoff switch?
Place the thermal cutoff switch on an electric skillet or griddle. Make sure the two prongs face up toward the ceiling. Set the thermostat on the griddle or skillet 25 degrees higher than the cutoff temperature of the switch. Touch both test probes from the multimeter to the prongs on the thermal cutoff switch.
Why would a thermal cutoff switch trip?
The thermal switch can trip if the water heater is not getting enough air. Press the small reset button in the center of the thermal switch. If it’s tripped, you may be able to hear it click. Even if you do not hear the thermal switch click, try lighting the pilot using the instructions on the water heater’s label.
How do you bypass a thermal switch?
The thermal fuse will look like a thin strip of white plastic with a wire coming out of each end. In order to bypass the thermal fuse, use electrical tape to tape the two ends together. The thermal fuse will then be bypassed. Turn the dryer on to a heat cycle for no more than 90 seconds.
Why does thermal switch keep tripping?
Blocked vents at the top and bottom of the water heater can cause excessive heat buildup inside the chamber and trip the thermal switch, shutting off the gas supply to the burner assembly. The switch also trips when it senses flammable vapors near the water heater, such as gasoline or paint fumes.
What kind of thermal cut off switch do I Need?
. . RV Water Heater Thermal Cut Off Switch Kit Replace for Atwood 93866 Work for The Electronic Water Heater Models # GCH6-4E GCH6-6E G6A-7E G6A-8E GC6AA-9E GCH10A-2E G610-3E GH610-3E XT Series. . . Only 12 left in stock – order soon.
What kind of switch is a temp switch?
Thermitrol/Klixon – 7AM Series Thermal Switch/7AM205A5-823 – 90C Switch, thermal. NC cut out. Thermitrol or Klixon (Devision of Sensata) 7AM Series Snap Action Thermal Switch. 7AM205A5-823 Normally Closed contact opens at 90 Deg C. Mount: PCB, 2 pin, Radial Leads w/1/4″ nickel leads. For overcurrent and overcharge protection.
How big is a 7am snap action thermal switch?
NC cut out. Thermitrol or Klixon (Devision of Sensata) 7AM Series Snap Action Thermal Switch. 7AM205A5-823 Normally Closed contact opens at 90 Deg C. Mount: PCB, 2 pin, Radial Leads w/1/4″ nickel leads. For overcurrent and overcharge protection. Dimensions: 43″ wide x 0.72″ high (0.952 high including leads) x 0.2″ deep.
What kind of thermostat switch is low profile?
Thermostat Switch, Low Profile, T23 Series, 50 °C, Normally Open, Flange Mount You previously purchased this product. View in Order History This item has been restricted for purchase by your company’s administrator.
