Straight-through cables are mainly used for connecting non-similar devices while crossover cables are mostly used for connecting similar devices. Straight through cable connects a computer with a DSL modem while Crossover cable connects Router to Router and Computer to Computer.

What is the difference between straight straight through and crossover cables?

When you connect two devices of different types together, you use a straight through cable. When you connect two devices of the same type together, you use a crossover cable.

Is crossover cable Still Needed?

Crossover cables are still needed in one specific scenario – to connect devices that aren’t outfitted with Gigabit Ethernet functionality. This is a high-quality, high-speed standard found in most but not all modern devices that support Ethernet.

How is cross cable connection different from straight cable connection?

One easy way to tell what you have is to look at the order of the colored wires inside the RJ45 connector. If the order of the wires is the same on both ends, then you have a straight through cable. If not, then it’s most likely a crossover cable or was wired wrong.

Can I use crossover cable for router?

Crossover cables are used when: Connecting a computer to a computer. Connecting a router to a router. … Connecting a router to a PC because both devices have the same components.

What is more common 568A or 568B?

The 568A wiring pattern is recognised as the preferred wiring scheme for standard use because it provides backward compatibility for both one pair and two pair Universal Service Order codes (AT&T) USOC wiring. … However, N-Tron adopted the 568B standard since it is the most widely used in the industry today.

Can we connect two PC with straight cable?

Yes, If both of the Computers have NICs (Network Interface Cards) with Auto MDIX (Medium Dependent Interface Crossover) capability then Straight Cable can be used to connect similar network devices, i.e. A Computer to Another Computer instead of a Crossover Cable required.

What is straight cable?

What Is Straight Through Cable? A straight through cable is a type of twisted pair cable that is used in local area networks to connect a computer to a network hub such as a router.

What is the advantage of using UTP straight through cabling?

Benefits or advantages of UTP: It is easy to handle. These cables are used in most of the networking architecture. It is flexible which further makes installation easier. It is less expensive and less costly compare to other networking media types.

Where is crossover cable used?

An Ethernet crossover cable is a crossover cable for Ethernet used to connect computing devices together directly. It is most often used to connect two devices of the same type, e.g. two computers (via their network interface controllers) or two switches to each other.

Article first time published on

Do modern laptops need crossover cables?

The answer is simple: You don’t need such cable.

Why is crossover cable used to connect router to PC?

If you’re connecting a PC to a router with a straight through or crossover cable, you are enabling network communication between both devices. Connecting PC to router with roll over cable will enable terminal communication.

What is the difference between a crossover cable and an Ethernet cable?

Crossover cable uses differ from those of regular Ethernet cables. While crossover cables do fall under the Ethernet cable category, these specialized cables are meant to directly connect two computing devices or two switches together. This connection is forged by crossing over (a.k.a. reversing) the pin contacts.

What are the 2 types of networks?

• Local Area Network (LAN)
• Wide Area Network (WAN)

Do I need crossover cable to connect two switches?

No, you do not need a crossover cable to connect two switches, with qualifications. Most (probably all) modern switches have either an auto detect port(s) or a manual uplink switch for a particular port.

Can I connect 2 computers together?

Two computers can be easily connected to share the files between them or to share the internet, printer between them. The process is usually simple and can be done with a few hardware devices and a bit of software knowledge.

What is T568B used for?

T568A and T568B both provide wiring schemes for terminating network cables to eight position RJ45 jacks and plugs. Applications: Used when connecting Data Terminating Equipment (DTE) to Data Communications Equipment (DCE), such as computers and routers to modems (gateways) or hubs (Ethernet Switches).

How can I remember RJ45 color code?

RJ-45 Crossover Ethernet Cable A good way of remembering how to wire a Crossover Ethernet cable is to wire one end using the T-568A standard and the other end using the T-568B standard. Another way of remembering the color coding is to simply switch the Green set of wires in place with the Orange set of wires.

What is the RJ in name RJ45 stand for?

The “RJ” in RJ45 stands for Registered Jack, a standard designation that originated with the Universal Service Ordering Code (USOC) scheme of the Bell System back in the 1970s for telephone interfaces. The old telephone RJ you’re probably familiar with is the RJ11.

What is UTP cable used for?

UTP cables are mostly used for LAN networks. They can be used for voice, low-speed data, high-speed data, audio and paging systems, and building automation and control systems. UTP cable can be used in both the horizontal and backbone cabling subsystems.

Which is better STP or UTP?

UTP cables contain no shields and they are thinner than STP cables, which is easier for cable installation and maintenance, particularly in limited space. … On the other side, it makes UTP cables more suitable to be used in narrow space. Third, fewer cost. UTP cables are cheaper than STP cables.

What is UTP STP commonly used for?

The best use for STP cables are in industrial settings with high amounts of electromagnetic interference, such as a factory with large electronic equipment, where they can be properly installed and maintained. UTP cables are the most commonly used cables for ethernet connections, and have a number of advantages.

What cable do I need to connect 2 computers together?

The simplest method to connect two computer systems without using the internet is through an ethernet cable. Once the connection is established the two systems can share files between them and also view and edit those files.

How do I connect two laptops physically?

You can connect both laptops using a wireless connection, or you can connect both laptops to a LAN port on your modem or router using an Ethernet cable. on the second laptop. Use the laptop that you want to connect to. It has an icon that resembles a folder with a blue clip.

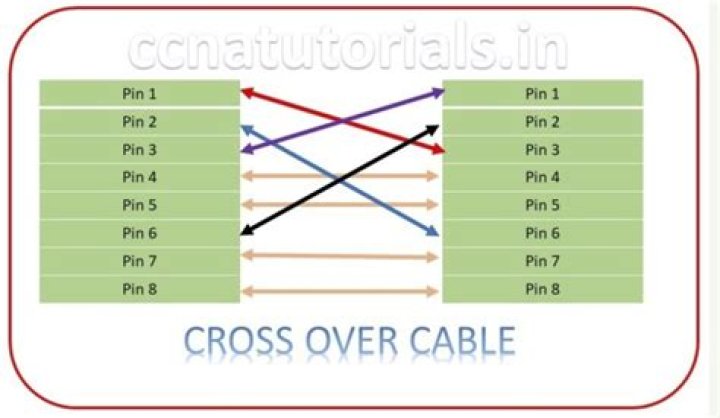

How is a crossover cable wired?

What Is Crossover Cable? Crossover cable, as the name suggests, cross over or swap on its way when coming from one end to the other. Unlike patch cable, crossover cable uses two different wiring standards on both end: one end uses the T568A wiring standard, and the other end uses the T568B wiring standard.

What is the meaning of crossover cable?

A. An Ethernet cable in which the transmit line connects to the receive line at the other end and vice versa. It is used today primarily to connect one computer to another for data transfer.
