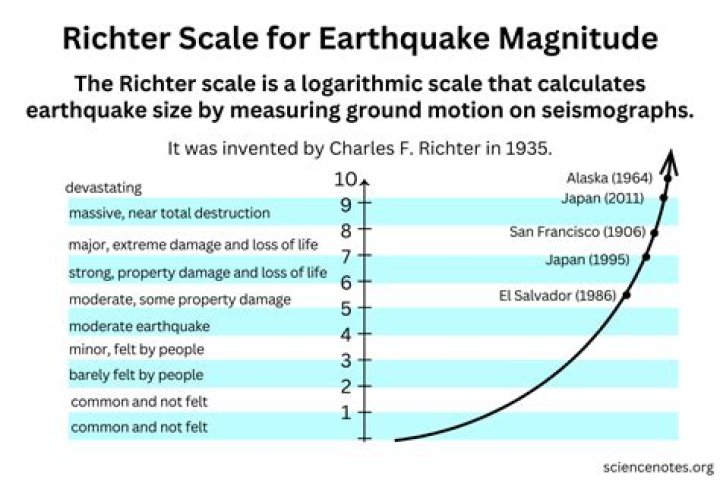

Richter scale (ML), quantitative measure of an earthquake’s magnitude (size), devised in 1935 by American seismologists Charles F. Richter and Beno Gutenberg. The earthquake’s magnitude is determined using the logarithm of the amplitude (height) of the largest seismic wave calibrated to a scale by a seismograph

What is an earthquake measured in?

Richter scale. Magnitude is a measure of the amount of energy released during an earthquake, and you’ve probably heard news reports about earthquake magnitudes measured using the Richter scale. Something like, “A magnitude 7.3 earthquake struck Japan today.

What scale is used to measure earthquakes now?

The Richter Scale is probably the best known scale for the measurement of earthquakes but today it is rarely used as it has been replaced by other measures which are more accurate and/or useful.

What is ML earthquake?

The Richter local magnitude (ML) is defined to be used for ‘local’ earthquakes up to 600 km away, and is the magnitude scale used by BGS when locating UK earthquakes. Surface wave magnitude (Ms) is based on the maximum amplitude of the surface wave having a period of 20 + 2 s.

How bad is a 7.0 earthquake?

Intensity 7: Very strong — Damage negligible in buildings of good design and construction; slight to moderate in well-built ordinary structures; considerable damage in poorly built or badly designed structures; some chimneys broken.

Is a 10.0 earthquake possible?

No, earthquakes of magnitude 10 or larger cannot happen. The magnitude of an earthquake is related to the length of the fault on which it occurs. … The largest earthquake ever recorded was a magnitude 9.5 on May 22, 1960 in Chile on a fault that is almost 1,000 miles long…a “megaquake” in its own right.

What are the 3 scales to measure earthquakes?

• The Richter Scale. The Richter scale was invented in the 1930s by Dr. …
• The Mercalli Scale. …
• Moment Magnitude Scale.

Is a 6.0 earthquake bad?

The larger the magnitude of the earthquake, the bigger the area over which landslides may occur. In areas underlain by water-saturated sediments, large earthquakes, usually magnitude 6.0 or greater, may cause liquefaction. The shaking causes the wet sediment to become quicksand and flow.

Is a 7.2 earthquake bad?

MagnitudeEarthquake EffectsEstimated Number Each Year7.0 to 7.9Major earthquake. Serious damage.10-158.0 or greaterGreat earthquake. Can totally destroy communities near the epicenter.One every year or two

How do seismographs measure earthquakes?

Seismometers allow us to detect and measure earthquakes by converting vibrations due to seismic waves into electrical signals, which we can then display as seismograms on a computer screen. Seismologists study earthquakes and can use this data to determine where and how big a particular earthquake is.

Article first time published on

How Richter scale is calculated?

How is the Richter Scale calculated. The Richter magnitude involves measuring the amplitude (height) of the largest recorded wave at a specific distance from the seismic source. Adjustments are included for the variation in the distance between the various seismographs and the epicentre of the earthquakes.

How long does an 8.0 earthquake last?

2 kilometers per second. This will give a much shorter value as at this speed, even distances of several 100 km for magnitude 8-9 quakes are covered in typically less than a minute.

Is a 4.5 earthquake strong?

Events with magnitudes greater than 4.5 are strong enough to be recorded by a seismograph anywhere in the world, so long as its sensors are not located in the earthquake’s shadow. The following describes the typical effects of earthquakes of various magnitudes near the epicenter.

What does an 8.0 earthquake feel like?

An M 4.0 earthquake could feel like a large truck driving by, while an M 8.0 quake could shake you so much you cannot stand. Usually you will not be able to feel a magnitude 2.5 or lower earthquake.

How do you check earthquakes?

A seismograph is the primary earthquake measuring instrument. The seismograph produces a digital graphic recording of the ground motion caused by the seismic waves. The digital recording is called a seismogram. A network of worldwide seismographs detects and measures the strength and duration of the earthquake’s waves.

How do you calculate earthquakes?

The Richter magnitude of an earthquake is determined from the logarithm of the amplitude of waves recorded by seismographs. Adjustments are included for the variation in the distance between the various seismographs and the epicenter of the earthquakes.

What are the units of the Richter scale?

Magnitude is based on measurement of the maximum motion recorded by a seismograph. Several scales have been defined, but the most commonly used are (1) local magnitude (ML), commonly referred to as “Richter magnitude”, (2) surface-wave magnitude (Ms), (3) body-wave magnitude (Mb), and (4) moment magnitude (Mw).

Is a 9.6 earthquake possible?

Hollywood-scripted magnitude 9.6 earthquakes are almost impossible to happen in Los Angeles and San Francisco, so say seismic experts. They say the maximum on the San Andreas fault running up and down the West Coast would be an 8.3 based on computer models.

How long does a 9.0 earthquake last for?

A magnitude 9.0 earthquake can last for five minutes or longer, and the amount of energy released is about 1,000 times greater than that of a 7.0. According to the U.S. Geological Survey, the most powerful quakes could leave few if any masonry buildings standing, destroy bridges and toss objects into the air.

How long does a 9.5 earthquake last?

Strong ground shaking during a moderate to large earthquake typically lasts about 10 to 30 seconds. Readjustments in the earth cause more earthquakes (aftershocks) that can occur intermittently for weeks or months.

Is a 4.7 earthquake strong?

Light: 4-4.9. GETTY A light earthquake is measured at between 4 and 4.9 on the Richter scale. Like minor quakes, they occur often worldwide, can be felt but generally cause no damage.

How big is a 5.9 earthquake?

Richter magnitudeDescription4.0-4.9Light5.0-5.9Moderate6.0-6.9Strong7.0-7.9Major

Is a 3.7 earthquake big?

A 3.7 magnitude earthquake is considered to be level II-III on the Modified Mercalli Intensity Scale, according to the USGS. Magnitude “measures the energy released at the source of the earthquake” while intensity is determined by the quake’s effect on buildings and people.

What is the strongest earthquake?

The 1960 Valdivia earthquake and tsunami (Spanish: Terremoto de Valdivia) or the Great Chilean earthquake (Gran terremoto de Chile) on 22 May 1960 was the most powerful earthquake ever recorded. Various studies have placed it at 9.4–9.6 on the moment magnitude scale.

Can you feel a 2.1 earthquake?

Normally, earthquakes below magnitude 3 or so are rarely felt. However, smaller quakes from magnitude 2.0 can be felt by people if the quake is shallow (few kilometers only) and if people are very close to its epicenter and not disturbed by ambient factors such as noise, wind, vibrations of engines, traffic etc.

What does a 3.0 earthquake feel like?

3.0 – You may notice a hanging object swing a little. It’s unlikely you will feel anything unless you are sitting still or lying down. 4.0 – Feels like a large truck passing by or even the shaking caused by an explosion nearby. 5.0 – Unmistakable as an earthquake, this can rattle dishes, break windows, and rock cars.

What is the Epicentre of an earthquake?

The epicenter is the point on the earth’s surface vertically above the hypocenter (or focus), point in the crust where a seismic rupture begins.

How much energy does a 2.0 earthquake release?

MagnitudeEnergy in joules (J)Wh-2.0630.0000175 KWh-1.020000.00056 KWh0.06.3 x 1040.0175 KWh1.02.0 x 1060.56 KWh

How do you calculate earthquake energy?

The energy release can also be roughly estimated by converting the moment magnitude to energy using the equation log E = 5.24 + 1.44M, where M is the magnitude.

What is intensity and magnitude in earthquake?

Intensity: The severity of earthquake shaking is assessed using a descriptive scale – the Modified Mercalli Intensity Scale. Magnitude: Earthquake size is a quantitative measure of the size of the earthquake at its source. The Richter Magnitude Scale measures the amount of seismic energy released by an earthquake.

Is a magnitude 15 earthquake possible?

Technically a 15 magnitude (on Richter scale) earthquake is not possible. An earthquake of magnitude 12 itself will be catastrophic with a potential to render a complete change in topography rendering ocean to hills and hills to ocean.
