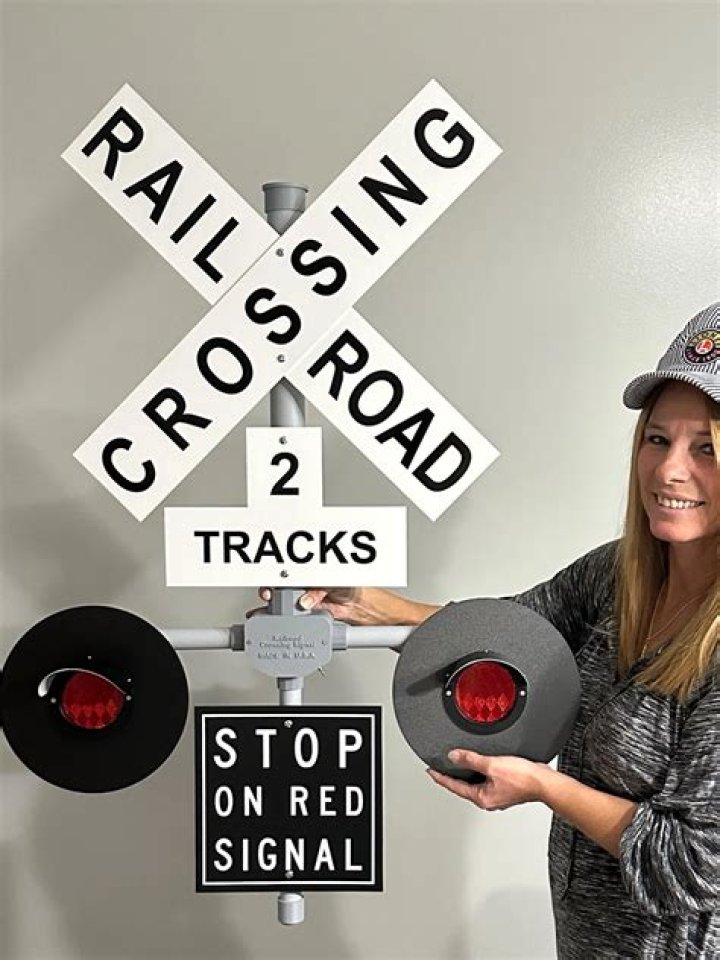

The Railroad Crossbuck is a sign composed of two slats of wood or metal of equal length, fastened together on a pole in an X-formation. In the US, the Crossbuck carries the words “Rail” and “Road” on one arm and “crossing” on the other, in black text on white reflective sheeting.

What is the railroad crossing arm called?

Level crossing signals are the electronic warning devices for road vehicles at railroad level crossings. The basic signal consists of flashing red lights, a crossbuck and a bell, attached to a mast.

What are train Gates called?

Other names include railway level crossing, railway crossing (chiefly international), railroad crossing (chiefly North American), grade crossing, road through railroad, criss-cross, train crossing, and RXR (abbreviated).

What is railroad crossbuck sign?

Crossbuck signs are found at highway-rail intersections. They are yield signs. You are legally required to yield the right of way to trains. … When the road crosses over more than one set of tracks, a sign below the Crossbuck indicates the number of tracks.

What is a passive crossing?

A passive crossing does not have any type of traffic control device. The decision to stop or proceed rests entirely in your hands. This type of crossing has a traffic control device installed at the crossing to regulate traffic at the crossing. … A passive crossing does not have any type of traffic control device.

What's a guide sign?

Guide signs provide directional and mileage information to specific destinations. They can be rectangular or have other shapes. Route signs mark federal interstates, state highways, and county or municipal roadways.

What is the difference between a railroad crossing sign and a crossbuck?

Meaning, definition, shape, location, color, and more. A crossbuck sign is a regulatory sign. Crossbuck signs indicate there is a railroad crossing. … If a train is approaching, the driver should never try to beat the train across the tracks. Instead, they should stop and wait for it to pass.

What are the 3 types of railroad crossings?

2.0. Caltrain has three (3) types of railroad grade crossings: vehicular grade crossings, pedestrian grade crossings, and emergency grade crossings.

What is the most common sign at a railroad crossing?

CROSSBUCK sign Most common sign at public highway-rail intersections.

Which type of railway crossing is also known as V crossing?

Acute angle crossing is formed when left-hand rail of one track crosses right-hand rail of another track at an acute angle or vice versa. This type of crossing consists of a pair of wing rails, a pair of check rail and a splice rail. This crossing is widely used. This is also called V-crossing or frog.

Article first time published on

Is it illegal to go around lowered crossing gates?

In every state, it’s illegal for you to go around a lowered crossing gate or to ignore signs or flashing lights posted at a railroad crossing. Trains always have the right-of-way, and for good reason: Trains can’t swerve, stop quickly, or change direction to avert collisions.

How are railroad crossings marked?

A stop line, an X and the letters RR may be painted on the pavement in front of railroad crossings. These markings warn you to be aware of the crossing ahead and to pay particular attention to the possible approach of a train.

What is a active railroad crossing?

Active Grade Crossings have active warning and control devices such as bells, flashing lights, and gates, in addition to passive warning devices such as crossbucks (the familiar x-shaped signs that mean yield to the train), yield or stop signs and pavement markings.

What is a controlled railroad crossing?

Railroads that have warning signs, red lights, and gates are called controlled railroad crossings. In some rural areas, uncontrolled railroad crossings are found with no signals, signs, or gates. Be extra alert when crossing an uncontrolled railway crossing. Remember that the train always has the right-of-way.

What do you do when you see a crossbuck sign?

The railroad crossbuck sign is placed at railroad crossings where the tracks cross the roadway. The crossbuck sign can be treated in the same manner as a YIELD sign: slow down, listen for trains and be prepared to stop if you see or hear a train approaching.

Is a crossbuck equivalent to a stop sign?

The YIELD or STOP sign may be installed on the same support as the Crossbuck sign or it may be installed on a separate support; in either case the YIELD or STOP sign is considered to be a part of the Crossbuck Assembly.

What are the different railroad signs?

Other common signs to include: Railroad Crossing (Crossbuck sign), an Emergency Notification Sign, a 3 Track Sign, and a Stop Sign or a Yield Sign. Passive signs for railroad crossing signs are commonly placed by local or state agencies – this includes pavement signs.

What are the 3 types of guide signs?

There are several types of conventional guide signs, and these include street name, recreational or cultural interest, expressway, welcome, informational, route markers, and freeway signs.

What is the color's of guide signs?

Guide signs use white letters on different colored backgrounds to convey their purpose. Most guide signs have green backgrounds. Signs with green backgrounds help direct motorists to places along the road or to destinations of general interest. Signs indicating the location of roadside services have blue backgrounds.

What does the rectangle sign mean?

Traffic regulations are conveyed in signs that are rectangular with the longer direction vertical or square. … Diamond-shaped signs signify warnings. Rectangular signs with the longer direction horizontal provide guidance information. Pentagons indicate school zones. A circular sign warns of a railroad crossing.

Which sign indicates that you are approaching railroad tracks?

The round yellow sign, called an Advance Warning Sign, warns drivers that the road intersects with railroad tracks ahead. This sign tells us to slow down and be prepared to stop if a train is approaching.

What does the white railroad crossing sign mean?

Answers. The railroad crossing is controlled. Continue at your regular speed. Look, listen, and prepare to stop at the crossing if necessary.

What are regulatory signs?

Regulatory traffic signs are white with black or red letters instructing road users what they must or must not do under certain conditions. Regulatory signs indicate and reinforce traffic laws and regulations which apply either permanently or at specified times or places.

What are the 4 pavement markings at a railroad crossing?

Pavement Markings The MUTCD Section 8B. 27 provides that on paved roadways, pavement markings in advance of highway-rail crossings shall consist of an X, the letters RR, a NO PASSING marking on two-lane, two-way highways with centerline markings, and certain transverse lines, as shown in Figure 16.

What are the 2 types of railroad crossings?

There are two types of crossings–private and public. Private crossings are not required to have advance signs or other markings and are found on roadways not maintained by public authority.

Which of the following traffic signs alert you to an upcoming railroad crossing?

RAILROAD CROSSINGS A round warning sign will usually alert you to an upcoming railroad crossing. When you see this sign, slow down and prepare to stop.

What is tongue rail?

Tongue rail – It is a tapered moveable rail connected at its thick end to lead rail. The tapered end is called as Toe and thick end is called a Heel. Stock rail – It is a running rail against which tongue rail functions. … Point – A pair of tongue rails with their stock rails is termed as a point.

What is scissor crossing?

A scissors crossover (Fig. 15.12) is meant for transferring a vehicle from one track to another track and vice versa. It consists of four pairs of switches, six acute crossings, two obtuse crossings, check rails, etc. …

What is crossing number in railway?

A crossing is designated either by the angle the gauge faces make with each other or, more commonly, by the number of the crossing, represented by N. There are three methods of measuring the number of a crossing, and the value of N also depends upon the method adopted.

Is it safe to cross train tracks?

Railroad tracks, trestles, yards and equipment are private property and trespassers are subject to arrest and fine. Cross tracks only at designated pedestrian or roadway crossings. … The only safe place to cross railroad tracks is at a designated public crossing. Do not cross the tracks immediately after a train passes.

Can you legally go around or under a railroad crossing gate?

When may you legally drive around or under a railroad crossing gate? Never. … Once the gate is raised, do not proceed across the tracks until you can see clearly in both directions and are sure there are no trains coming.
