Sacrificial anodes are metals or alloys attached to the hull that have a more anodic, i.e. less noble, potential than steel when immersed in sea water. These anodes supply the cathodic protection current, but will be consumed in doing so and therefore require replacement for the protection to be maintained.

What is the main advantage of sacrificial anode method?

The advantage of sacrificial anode systems over others are they need no external power source, are easy to install, the low voltage and current between the anode and the surface it is protecting infrequently generates stray current, overprotection is unlikely, and inspection and monitoring is simple for trained …

What is sacrificial anode explain with example?

All metals immersed in an electrolyte (sea water for example) produce an electrical voltage. … The most active metal (zinc for example) becomes the anode to the others and sacrifices itself by corroding (giving up metal) to protect the cathode – hence the term sacrificial anode.

What is the purpose of a sacrificial metal?

A sacrificial metal is a metal used as a sacrificial anode in cathodic protection that corrodes to prevent a primary metal from corrosion or rusting. It may also be used for galvanization.

Does my pool need a sacrificial anode?

Every swimming pool, and especially every saltwater pool, should have a sacrificial anode installed. The addition of this simple and low-cost device will dramatically reduce the damage a pool experiences as a result of galvanic corrosion.

What is a sacrificial anode in a water heater?

The sacrificial anode is an essential component of your water heater. It’s a long metal rod, made of magnesium or aluminum, which extends through the tank’s interior. It attracts particles of iron, limestone or other minerals present in the water through an electrochemical process and corrodes in place of the tank.

What are the advantages of sacrificial protection?

• Low cost.
• Provides protection without power requirement.
• Does not require maintenance.
• Simple installation and operation.

What is sacrificial anode cathodic protection?

Sacrificial anode cathodic protection (SACP) is a type of cathodic protection where a less noble material that acts as a sacrificial anode is connected by metallic conductors to the structure to be protected. The materials used for this purpose are magnesium, aluminum and zinc.

How is the function of a sacrificial anode similar to galvanization?

The sacrificial anode is a block of metal such as magnesium that oxidizes more readily than the iron in the ship’s hull. … Galvanizing steel by plating it with a more resistant metal offers a similar protection against corrosion.

How does sacrificial anode prevent rusting of iron?

A sacrificial anode is a block of metal that is more reactive than iron. The more reactive a metal is the easier it gives away electrons. This reactive block of metal acts as a source of electrons for the iron. … If we wrap zinc around an iron nail the nail is protected from rusting.

Article first time published on

Do sacrificial anodes work in air?

Thus, cathodic protection will not work on structures exposed to air environments. The air is a poor electrolyte, and it prevents current from flowing from the anode to the cathode. … The cathode is protected and the anode progressively gets destroyed, and is hence, called a sacrificial anode.

What is the best sacrificial anode?

Aluminum is lightweight and works in both salt AND brackish waters. In addition, they may last up to 50% longer in saltwater. Magnesium is the best anode to use in fresh water, but does not perform as well in salt water.

When should I replace my pool anode?

The Zinc Anode will sacrifice itself and corrode before all other metals in the pool. In doing so, the anode protects other metal parts from galvanic corrosion. The Zinc Anode will need to be replaced approximately every 3 years or when it is 1/2 its original size.

Why is galvanization called a sacrificial form of protection?

Zinc corrodes in preference to steel and sacrifices itself to protect the steel, hence hot dip galvanizing will provide this sacrificial protection. The corrosion products from the zinc are deposited on the steel resealing it from the atmosphere and therefore stopping corrosion.

Why is it called sacrificial protection?

Sacrificial protection Magnesium and zinc are often used as sacrificial metals. They are more reactive than iron and lose their electrons in preference to iron. This prevents iron from losing its electrons and becoming oxidised.

Is galvanization the same as sacrificial protection?

Galvanising is coating the iron with a layer of zinc in order to prevent it from rusting. However, sacrificial protection is attaching a piece of zinc to the iron object. Both methods use the same principle to work.

How do you test a sacrificial anode?

1. Turn Off Water and Fuel Supply (Gas or Electric) Locate the gas line near the bottom of your water heater. …
2. Drain Some Water. Drain a couple gallons of water—about 10% of the tank’s volume. …
3. Locate Anode Rod. Now, try to find the anode rod. …
4. Loosen the Hex Head and Remove the Anode Rod. …
5. Install New Sacrificial Anode Rod.

Do I need an anode in my water heater?

Some water heaters have two anodes. Not only is it important to put an aluminum/zinc anode into the heater; it’s also important to remove all previous anodes or the hot water will still smell.

How long will water heater last without anode rod?

Diminished Water Heater Lifespan: Without a sacrificial anode rod replacement, the average tank water heater will last a maximum of 8-12 years. However, your water heater may start failing as early as 5 years old without this essential care.

What is sacrificial material?

n (Metallurgy) an electropositive metal, such as zinc, that protects a more important electronegative part by corroding when attacked by electrolytic action.

Why is magnesium so useful as a sacrificial anode?

Chemically, magnesium is oxidation resistant and this is because of its surface is covered with a thin layer of oxide which protects it from being vulnerability to air. This is why it is highly suitable for use in sacrificial anodes to limit the effects and susceptibility of other metal surfaces to corrosion.

Which of the following metals can serve as a sacrificial anode to protect an object made out of nickel?

Common types of metals used in sacrificial anodes include aluminum, zinc, and magnesium.

What is the difference between sacrificial protection and cathodic protection?

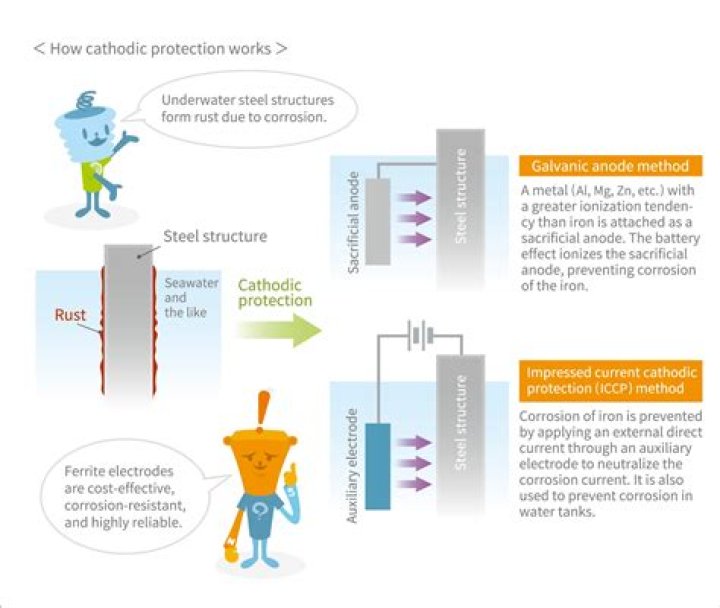

The main difference between the two methods is that the impressed current cathodic protection uses an external power source with inert anodes while the sacrificial anodes cathodic protection uses the naturally occurring electrochemical potential difference between different metallic elements to provide protection.

What is sacrificial anode how does it protect sub merged pipeline What are the drawbacks of cathodic protection?

A simple method of protection connects the metal to be protected to a more easily corroded “sacrificial metal” to act as the anode. The sacrificial metal then corrodes instead of the protected metal. … Cathodic protection can, in some cases, prevent stress corrosion cracking.

What is sacrificial coating?

Sacrificial coatings are a selfless breed of coating made up of a metal, usually zinc, which corrodes preferentially to steel. Essentially, this method hijacks the corrosion process and steers it in a direction that won’t be harmful to the asset the coating is meant to protect.

Why is corrosion prevention important?

Without corrosion control, facilities will likely struggle with the repercussions from corrosion. Preventing corrosion is not free, but it is less costly than fixing or replacing damaged systems when it’s too late. Without preventative steps, facilities can have damage or complete loss of structures.

Why is zinc coating on iron called sacrificial anode?

These anodes, are made of metals more reactive than the material used for the ship’s body and systems. As such, they will corrode in place of the ship’s body and systems while the ship stays protected, giving rise to the name ‘Sacrificial Anodes’.

Why would a sacrificial anode made of lithium metal be a bad choice?

This means that the lithium would react quickly with other substances, even those that would not oxidize the metal it is attempting to protect. Reactivity like this means the sacrificial anode would be depleted rapidly and need to be replaced frequently.

Do I need an anode on my boat?

Your boat will typically have at least two metals built within it, but zinc is a third metal added for it to be intentionally sacrificed. … Since your boat will often be on the water, having a zinc anode is necessary to keep your boat’s engine and propeller lasting a long time.

Why do boats need zincs?

The metallic parts of your boat need to be insulated with zinc anode to prevent their corrosion. Zinc, being a high voltage conductor, ensures that the current flowing through your boat and the water exits from the zinc anode.

What is the best anode for salt water?

Zinc anodes are the preferred choice in metal alloys for saltwater applications that need a sacrificial anode, because the alloy is less resistant to the saltwater’s electrolytes. The zinc, in essence, stops the oxidation happening to the other metal part as the zinc dissolves away.
