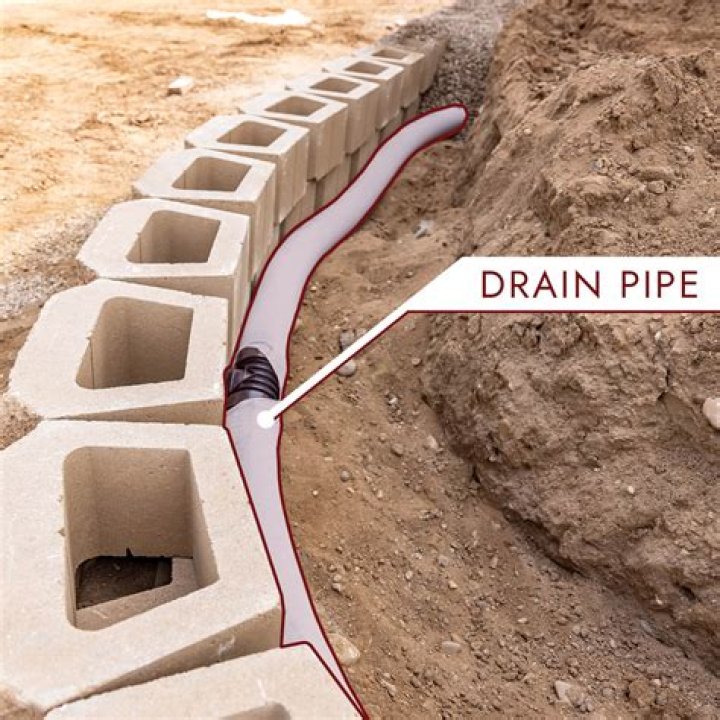

What is the proper fall for drain pipe?

¼ inch per foot
But do you know the proper slope? The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope.

When did PVC sewer pipe start being used?

1936 – PVC pipes began to be installed for residential drinking water distribution and waste pipelines (Germany). Most are still in service. 1949 – Initial use of PVC pipe in North America. 1952 – PVC pipe introduced in the U.S.

Can you put a 90 in a drain line?

The 90 degree bends also are tough to pass through with drain cleaning equipment. Never install a 90 degree fitting under ground except when used at the base of a vertical plumbing stack. If you have to turn 90 degrees, use two 45 degree angle fittings separated by a 12 or 18 inch piece of straight pipe.

When installing a main drain line what is the correct level of slope?

The drain line needs to have consistent and proper slope of 1/8 to 1/4″ per foot and should have a number of access points or cleanouts along the run.

What is the minimum grade of a 100mm drain?

1.65%
A drain of DN 100 must be laid at a minimum grade of 1.65% or a ratio of 1 in 60.

How big should a PVC drain line be?

All the fixtures in your house will connect to a main drain line, which is usually 4″ in diameter. If you need to know the thickness, outside diameter or inside diameter of a PVC pipe, check out this calculator. Next, measure the length of the pipe you are working with. This will allow the total pipe drop (or fall) to be calculated.

Where does the drain line and the vent line go?

If the toilet drain does not connect directly to a vent, you must find another way to vent it. If the drain line runs away from the wall where you want the vent, use a reducing Y and a 45-degree street elbow to point the vent line toward the wall. The horizontal vent pipe runs right next to the closet bend.

What’s the slope of a 45 degree drain pipe?

706.3 Horizontal drainage lines connecting with other horizontal drainage lines shall enter through forty-five (45) degree (0.79 rad) wye branches, combination wye and one-eighth [1/8] bend branches, or other approved fittings of equivalent sweep.

Can you use 90 degree vent elbow on drain line?

Plus, you can’t use 90-degree vent elbow to change direction in a drain line (unless you really like cleaning out clogs). In other words, you’ve got to know when to use each type of fitting. You can find the proper uses for each fitting in a plumbing guide book. Or, touch base with your local plumbing inspector before buying parts.

Can a drain be in a straight line?

Some drains will travel in a straight line, others will bend, and others will make 90 degree turns. Use a pencil and paper to map your drain route, remembering that you want to keep the drain as short as possible. The longer the drain, the greater the chance of clogs in the future.

How much slope do you need for a drain line?

Remember, the waste line has to slope a minimum of 1/4-inch per foot and a maximum of three inches per foot or vertical. Here is an example: if your final drain length is 15 feet and you are going to slope the line at the minimum 1/4-inch per foot, the drain has to slope a total of 3 3/4 inches from the start of the pipe to the end.

All the fixtures in your house will connect to a main drain line, which is usually 4″ in diameter. If you need to know the thickness, outside diameter or inside diameter of a PVC pipe, check out this calculator. Next, measure the length of the pipe you are working with. This will allow the total pipe drop (or fall) to be calculated.

If the toilet drain does not connect directly to a vent, you must find another way to vent it. If the drain line runs away from the wall where you want the vent, use a reducing Y and a 45-degree street elbow to point the vent line toward the wall. The horizontal vent pipe runs right next to the closet bend.
