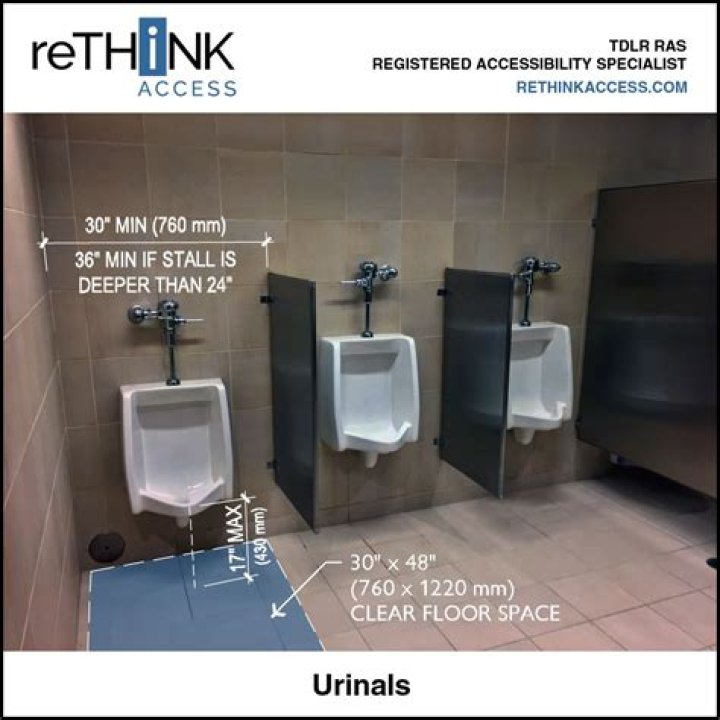

What is the normal fixing height of an individual wall mounted urinal?

For standard home use, 24 inches is the general height requirement for a wall-mounted urinal. That’s the measurement from the lip or rim of the urinal to the floor. The Americans with Disabilities Act requires a lower height for some users. A urinal’s front rim should be 2 feet off the floor.

How high are urinals mounted?

24 inches
How High Should a Urinal Be Mounted? For standard home use, installing a wall-mounted urinal should be done at a height of 24 inches, which is the average height for mounting a wall urinal. The said 24 inches are basically measured from the floor all the way up to the rim of the urinal.

What height should a hand basin be?

between 800-850mm
Most plumbing experts say a comfortable basin height is considered to be somewhere between 800-850mm. However, people who are particularly tall may want to consider installing their basins a little higher to take the pressure off their backs when it comes to bending over the sink every morning.

How is a urinal mounted to wall?

The urinal is attached to the wall at the top with hangers that are screwed to the wall. The bottom is attached with lag screws through the slots in the china, through the holes in the outlet connection, into the finished wall. It may be necessary to install a 2 x 6 boards behind the finished wall.

What height should a sink be mounted?

ADA specifications require that the highest point on the front edge of a wall-mounted bathroom sink — or lavatory — be no more than 34 inches above the floor.

What height do you hang a bathroom sink?

800-850mm high
Step 1 – Decide the height of your basin First things first, you’ll need to decide what height your basin should be. A standard bathroom sink is usually placed 800-850mm high.

How many ADAS are needed for urinals?

The ADA Standards require that unisex toilet rooms, where provided, have privacy latches and contain at most one lavatory, one water closet, and one urinal (or a second water closet) (§213.2.

What is the height of wash basin counter?

The counter height is typically 32 to 34 inches, but what’s actually more important is your sink height. An above-counter vessel sink will naturally sit much higher than an inset below-counter sink, and so a vessel should be placed on a lowered cabinet to compensate.

What is the ideal mounting height for a wall light?

What is the ideal mounting height for a wall light? The mounting height of a wall light is of course something you choose yourself, and often depends on your personal taste or the application. But usually a mounting height of 1.60 to 1.70 m is taken as the standard.

How tall should a wall mounted TV be?

Measure the height of the TV and half the measurement to identify the centrepoint. Using a pencil you can mark either side on the wall. As a guide the average height for mounting a TV in the livingroom is 42 Inches from the floor. Don’t take our word for it though – get yourself measured up! Is the bedroom TV the same height?

How tall does a wall hung toilet need to be?

If you’re installing a wall hung toilet in your bathroom, you will encounter a challenge that floor-mounted toilets do not have: what height to hang the toilet. Just like floor-mounted toilets can have variations in height, a wall hung toilet also has some flexibility in the height it can be hung.

How to calculate the mounting height of a TV?

OR YOU CAN USE THESE FORUMALS TV Viewing Distance Formula VD = TVS/.55 VD= Viewing DistanceTVS = Television Size TV Mounting Height Formula MHC = ELH +(VD *.22) MHC = Mounting Height CenterELH = Eye Level Height (Measure in viewing chair) VD= Viewing Distance ​w ww.homedit.com

What is the ideal mounting height for a wall light? The mounting height of a wall light is of course something you choose yourself, and often depends on your personal taste or the application. But usually a mounting height of 1.60 to 1.70 m is taken as the standard.

How tall should a wall mount TV be?

Hoping to wall mount it tomorrow, thanks in advance. Reply. Cozzy you optimal mounting Height should be 68 inches to the middle of the TV. If you want to figure out how many inches from the bottom of the TV to the floor then you measure the height of your TV then divide it by 2 and subtract it from the 68 inches.

If you’re installing a wall hung toilet in your bathroom, you will encounter a challenge that floor-mounted toilets do not have: what height to hang the toilet. Just like floor-mounted toilets can have variations in height, a wall hung toilet also has some flexibility in the height it can be hung.

How tall should a toilet be from the floor to the rim?

Standard toilet heights measure 14 1/2 inches from the floor to the bowl’s rim, not including the seat. Comfort height toilets measure at least 16 inches from the floor to the bowl’s rim and may measure higher. The recommended height for a universal height toilet including the seat is 17 to 19 inches from floor to seat.
