Maximum spacing of posts is 72 inches on center. Bolts should be vertically spaced no less than 5-1/8 inch apart. For a composite railing system, slide the post sleeve over the wood post, then the post sleeve skirt over the post sleeve; both should rest on the decking.

What is code for deck railing posts?

U.S. building code requires support posts for the rail structure to be no further apart than 6 feet on a deck with 4×4′ deck rail posts and no more than 8 feet apart for decks with 6×6′ deck rail posts. Posts should be no further apart than 5.5 feet on stairs.

What is the maximum distance between deck posts?

Ideal deck post spacing is 8 feet or less. The distance between deck support posts depends on the type of wood species used and the size of the joist and beam. There is no minimum span, and maximum spans can reach up to 15′.

What is the maximum space between railings?

Balusters, the vertical guards that support the handrail, must be installed close enough that the space between them is no greater than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing. Installed balusters should withstand 50 lbs. of pressure exerted over a 1-square-foot area.

How far apart should deck railing spindles be?

Balusters are the vertical guards that support the handrail. They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing.

What's the maximum distance between balusters?

U.S. building codes mandate that balusters have no more than a 4-inch gap between them. This relatively tight amount of spacing still allows for visibility between spindles, but also stands as a safety measure to prevent small children from becoming stuck between spindles or from slipping through the balusters.

How much space should be between deck rails?

In order to comply with building regulations and codes, balusters must be spaced no more than 4 inches apart on center. The general rule is that your railing must have three balusters per foot (every 12 inches), although you can place them closer together if you’d like.

How many footings do I need for a 12x16 deck?

A standard deck will need four footings parallel to the house, but they will need to be temporarily braced by 6 inch-by-6 inch posts. Using doubled boards, you will then need to build beams on the top row of the posts to frame the edges of the deck. These must be topped with adjustable post caps.

Should I use 4x4 or 6x6 deck posts?

Unfortunately, a 4×4 post may not be able to withstand the weight, causing the entire porch to buckle. A 6×6 post gives you a little more long-term stability, particularly in those colder climates. Not only does it perform better when carrying heavier loads, but it also makes the heading for your roof more secure.

How do you evenly space a deck spindle?

1. Measure the width of the gap between the inner surfaces of the two support posts.
2. Measure the width of a single spindle.
3. Add the two figures together. …
4. Count the number of spindles to be used and add one. …
5. Divide the sum of the width by the sum of the number of spindles.

Article first time published on

How many bolts should be in a deck post?

Bolts (at least 5 in. long for 4×4 deck posts, 2 bolts per post) Power drill. Long drill bit (same length as the bolts)

Is it OK to notch deck railing posts?

Say “No” to notching pressure-treated deck posts. We want you to build an outdoor railing system that you, your family and guests can enjoy without worrying about safety issues. In order to do so, you need to know this building shortcut is not advisable, and we recommend avoiding it at all costs.

How do you calculate deck posts?

Add the half distances or full distances along each side as appropriate and then multiply one side against the other to obtain the tributary area. Multiply this square footage by the design load (make sure you are using corresponding units in each case) to obtain the expected load on each post.

What is code for horizontal deck railing?

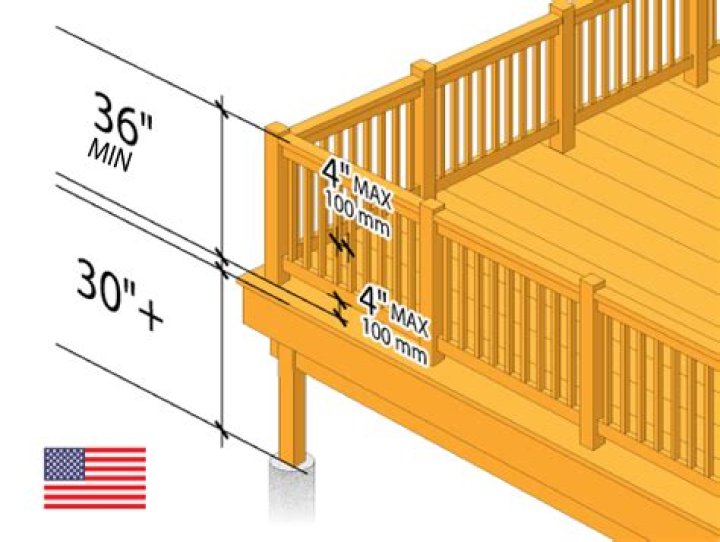

Guards are required on decks where a point 36 inches horizontally from the edge is more than 30 inches above the ground. … For residential work, guardrails need to be only 36 inches tall. The reason for the lower height is to allow people to see over the top of a railing when seated.

What is code for balcony railings?

Building codes require guards and railings for decks, balconies, and other surfaces that are more than 30 inches above the ground. … The required height for railings is between 34 inches and 38 inches, measured above the finished stair tread nosings.

Should deck joists be 2x6 or 2x8?

For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections. 2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. … Most decking is not strong enough to support longer spans than 16″.

How much load can a 4x4 post take?

The load capacity of a 3-foot #2 grade 4×4 is 17,426 pounds, and a similar 6×6 is 20,834 pounds or 16% better. However, an 8-foot 4×4 supports 6468-pounds and 2339-pounds at 14-feet, while a 6×6 is 18032 and 10550-pounds respectively – or 64% and 78% more load capacity.

Should I set my deck posts in concrete?

A deck post should always be placed on top of footing, not inside concrete because it can break. … Concrete tends to absorb moisture and wood expands when it gets wet, so these two factors combined will result in the wood breaking the concrete.

How far apart do you put deck blocks?

Space the deck blocks at 4′ to 6′ intervals to offer the frame good support.

Can I use deck pier blocks instead of footings?

Pier blocks can be used instead of footings for a ground-level deck not requiring permits. Piers blocks can also be used if the frost level depth is less then the height of the pier block.

How many piers are needed for a 12x12 deck?

Before starting to build, the first question is: How many footings do I need for a deck? For an attached 12 x 12′ deck, you’ll need at least 3 footings, plus at least 2 more if you’re planning on building stairs with it.

How do you calculate spacing between boards?

Divide distance “A” by the number of spaces between objects. In our example, this is 223.5″ / 3 = 74.5″. This is the center-to-center distance of the posts (or flower pots on your porch, holes in your board, or pickets on your fence). The spacing between the objects is that distance less the width of your objects.

How do I calculate how many spindles I need?

To determine the correct number of spindles for the guard, measure the length of the railing. Then, count the number of vertical guards and the measure the thickness of each. Next, multiply the number of spindles by the thickness, and then subtract this number from the length of the railing.

What is the difference between balusters and spindles?

A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.

Does notching a post weaken it?

Notching a post does not weaken the structural integrity of the wood support post because the load for the deck is transferred down through the post to the footings. The upright notched section of the post acts stabilizes the beam.

How far apart should 4x4 deck posts be?

For Building a Deck Railing, Deck Frame, or Fence The maximum spacing of 4×4 deck posts should be 6 feet on center, while the maximum spacing of 6×6 deck posts should be 8 feet on center.

Should I use washers with carriage bolts?

Remember, carriage bolts should only ever be inserted into pre-drilled holes. … A washer is important because it helps to reduce any damage when you use the nut to pull the carriage bolt into the material. Tighten the nut to move the carriage bolt into its rightful place.
