Piston rings are usually made of cast iron and steel. Wear resistance is an important requirement in the materials used for their manufacture.

What type of steel are piston rings made of?

The choice of steels used for piston rings in engines ranges from very low-strength, low-alloy steels though stainless steels to high-strength, highly alloyed tool steels. Generally speaking, piston rings made from the steel grades with higher strength are used for more arduous applications.

How are piston rings manufactured?

Piston rings of marine engines are made with the help of pot casting method. In this method, a short cylinder of an oval cross-section is made and the piston rings are then cut and machined from the cylinder. With this method, a homogeneous and balanced casting is formed around the entire circumference of the ring.

Why are piston rings made of steel?

Steel piston rings can solve a lot of problems in highly stressed engines. They are stronger, harder, seal better and resist breakage and wear under load. They are ideal for any application that involves higher combustion temperatures, higher compression loads and tougher emission standards.

What is the material of cylinder head?

In cars, the cylinder head is normally made of aluminum even when the cylinder block is cast iron. The three fluids, combustion gas, coolant and lubricating oil, flow independently in the cylinder head.

Are carbon steel piston rings good?

While this sounds like a generic use material, carbon steel is also a great selection for high cylinder pressure applications like nitrous, turbo, supercharged, and high-rpm engines. Steel nitrided top rings are an excellent ring in terms of durabilty and strength.

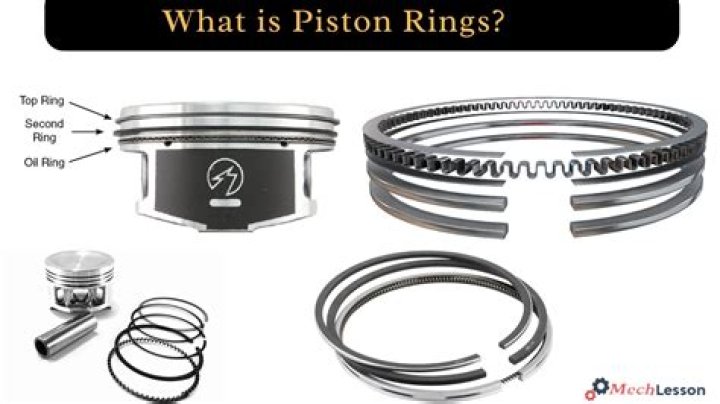

What are the three types of piston rings?

Piston rings from Perkins come as three rings. They are the top compression ring, then the intermediate compression ring and finally the oil control ring. These parts are relatively small in size but play a large role in the main cylinder block of your engine.

What is the best material for Pistons?

Aluminium alloys are the preferred material for pistons both in gasoline and diesel engines due to their specific characteristics: low density, high thermal conductivity, simple net-shape fabrication techniques (casting and forging), easy machinability, high reliability and very good recycling characteristics.

What are the two types of piston rings?

Compression rings and oil control rings are the two most popular types of piston rings seen within compressors.

What material is connecting rod made of?

A connecting rod with a tension load is made of forged steel, cast steel, or fabricated steel. Rods with a compression loading are cast nodular steel or aluminum alloy.

Article first time published on

What are oil rings made of?

Oil control rings are typically made from either a single piece of cast iron, multiple pieces of steel, or steel/iron with a helical spring backing to create the tension required for a close seal. Cast iron oil rings and rings with a helical spring backing have two scraping lands of various detailed form.

Why are cylinder heads made of Aluminium?

Aluminium has the advantages of light weight, high thermal conductivity, and ease of production to close tolerances. … But even if the engine block is cast iron, the cylinder head is normally made of aluminium as it allows a more rapid extraction of the combustion heat compared to grey iron.

Where are cylinder heads made?

World Products Cylinder Heads They are loaded with performance and durability enhancing features which make them far superior to OE castings. World heads are made in the USA, cast from special high density cast iron for increased strength and precision machined on dedicated CNC machining centers.

What are crankshafts made of?

Crankshafts are made from forged steel or cast iron. Crankshafts for high-volume, low-load production vehicles are generally constructed from nodular cast iron, which has high strength (see Appendix D). Fuel-efficient engines require a high power-to-displacement ratio, which has increased the use of forged crankshafts.

What material is used for cylinder block?

Cylinder blocks are normally made of cast iron or aluminum alloy. The aluminum block is much lighter. Various types of materials are combined to increase strength.

What are the type of piston ring?

• Compression Rings or Pressure Rings.
• Wiper ring.
• Oil Control / Scrapper Rings.

Why is piston made lightweight?

Per DiBlasi, “The more weight you can pull out of the rod and piston assembly, the less stress you put on the bearings and journals. When revving engines “high,” the load and speeds can do damage at an exponential rate. … “Lighter rotating mass allows the engine to respond quicker when spinning up.”

What is a good brand of piston rings?

MAHLE is the largest piston ring manufacturer in the world, so it is no surprise that MAHLE Performance piston rings are the most extensively tested and technically advanced piston rings in the industry.

Which piston ring is the top?

When you first open the box, you will see that the tabs say “1”, “2” or “3” to show which groove the rings are. Once you’ve removed the rings from the box, you’ll see that the 2nd groove ring has a dot on the top and an inside bevel at the bottom. Install the dot toward the top of the piston.

How are piston rings lubricated?

The cylinder walls and piston-pin bearings are lubricated by oil fling dispersed by the rotating crankshaft. The excess being scraped off by the lower ring in the piston. … The excess oil then drains back to the sump, where the heat is dispersed to the surrounding air.

What is CPR piston ring?

By introducing the controlled pressure relief (CPR) piston ring design with gas tight finger locks on all piston rings, the gas leakage through the piston ring pack is controlled by controlled leakage (CL) grooves.

What is the best type of piston?

4032 Forged Aluminum Pistons Forged pistons are the strongest on the market. The manufacturing process is different from a cast piston, because the aluminum is not molten like that of a cast piston.

What alloy are pistons made from?

Therefore, for mass automobile engines, pistons are made mainly from two materials-cast iron and aluminum alloys, and to be precise, from silumin alloys containing aluminum and silicon.

What is a billet rod?

Billet. Billet connecting rods are built from a single piece of flat forged steel. They are designed using a CAD-type computer program, then individually cut from a billet material using a water jet or other CNC-controlled machine.

Which carbon steel is used for connecting rod?

Low Carbon Steel (Mild Steel): Low carbon steel is an alloy of iron and carbon. The carbon content varies from 0.05 to 0.15 % for dead mild steel and 0.15 to 0.3 % for mild steel. The dead mild steel is very much ductile and is used for making various components like sheets, strips, wires, rods etc.

What are piston rings used for?

The piston rings act to carry heat away from the hot piston into the cooled cylinder wall/block of the engine. Heat energy flows from the piston groove into the piston ring and then into the cylinder wall, where it eventually will be transferred into the engine coolant.

What alloy are cylinder heads?

In today’s cylinder head designs, the most commonly used cast aluminum alloys are A356, 319 and AS7GU (A356+0.5%Cu). A356 is a primary aluminum alloy with good ductility and fatigue properties at low to intermediate temperatures.

What are the types of cylinder head?

The cylinder head may be classified depending upon the layout of valves and ports. There are mainly three types – Loop-flow type, offset cross-flow type or in-line cross-flow type. In the loop-flow design, the inlet & exhaust manifolds are on the same side which helps pre-heating of the intake air.

How is cylinder head made?

Cylinder heads are made from either cast iron or cast aluminium. … The interior of a cylinder head is a complex network of oil galleries and coolant passages, even more complex than the engine block. To form these interior cavities, heads are often cast using the lost-foam casting technique.

What is the name of the piston head?

Piston crown or head: It is the top most portion of the piston.

What is the best material for crankshaft?

In the world of high-performance crankshafts, nickel-chrome-moly alloy SAE-4340 (AMS-6414) has been a favorite in both forged & billets applications. It is used because of its very highs strengths & fatigue properties, couples with good ductility and impact resistance at high strength.
