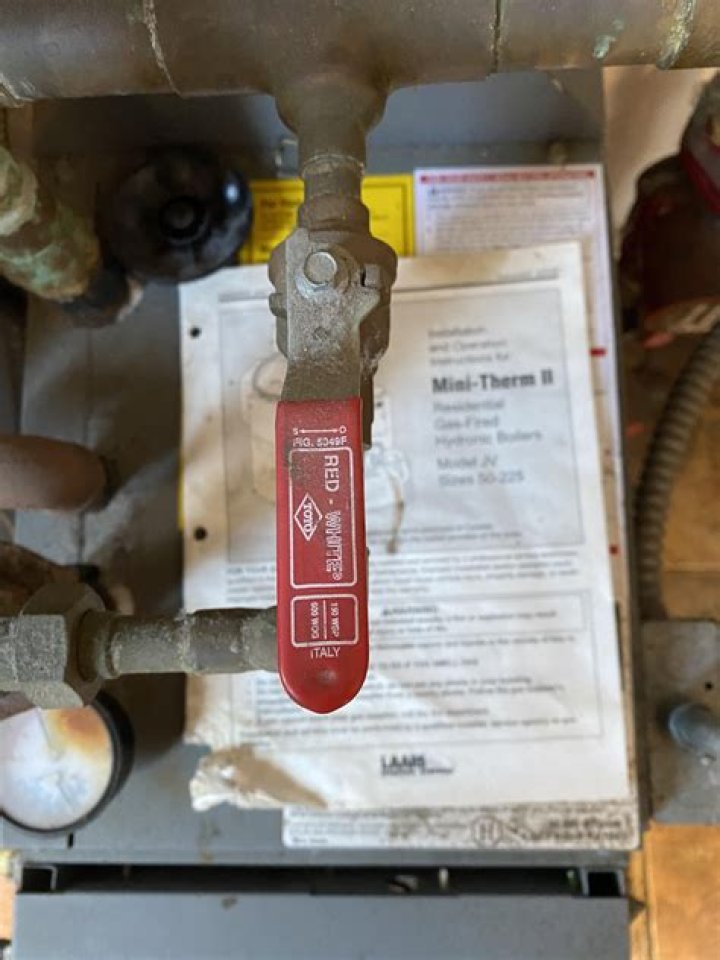

What is the installation manual for a Laars mini therm?

This manual provides information necessary for the installation, operation, and maintenance of the Laars Mini-Therm model JV low pressure, copper tube hydronic boilers. These boilers are available

What do you need to know about mini therm?

MINI-THERMJVPage 3 SECTION 1. General Information 1A. Introduction This manual provides information necessary for the installation, operation, and maintenance of the Laars Mini-Therm model JV low pressure, copper tube hydronic boilers. These boilers are available

Where can I find mini therm boiler instructions?

MINI-THERM Residential Gas-Fired Hydronic Boilers Models JVH, JVS These instructions are to be stored next to the boiler for reference purposes. FOR YOUR SAFETY:This product must be installed and serviced by a professional service technician, qualified in hot water boiler installation and maintenance.

What are the requirements for a Laars hydronic boiler?

This hydronic boiler must be installed in accordance with the procedures detailed in this manual, or the Laars warranty will be voided. The installation must conform to the requirements of the local jurisdiction having authority, and, in the United States, to the latest edition of the National Fuel Gas Code, ANSI Z223.1.

When to replace the air sensor on a Laars boiler?

The resistance of a good sensor is 10,000 ohms @ 77°F (25°C). Replace sensor if resistance is less than 500 or more than 20,000 ohms. Correct in the same manner as F-4. Check that the outdoor air sensor is installed properly, and that the wire and/or connection are not damaged.

What should inlet gas pressure be on a Laars boiler?

A. Consult gas utility company. Inlet gas pressure to boiler should be 5.5” to 10.5″ water column on natural gas. 0.0″ to 13.0″ on propane gas. B. Pressure should be regulated within limits shown above. C. Replace thermocouple.

What does F 3 fault code mean on Laars boiler?

In normal operation, the ignition control sends a “gas valve energized” signal to the boiler control, so the controller will be able to time its PI algorithms correctly. An F-3 fault code indicates that the ignition control is sending a signal that the gas valve has been energized, but there is no call for heat.

How to troubleshoot a Laars ebp0110 boiler?

Laars EBP0110 boilers troubleshooting Code Solutions F1 Boiler control internal error F3 Gas valve status is on, with no call for F4 Supply sensor error F5 Tank sensor error (EBP only)

MINI-THERM Residential Gas-Fired Hydronic Boilers Models JVH, JVS These instructions are to be stored next to the boiler for reference purposes. FOR YOUR SAFETY:This product must be installed and serviced by a professional service technician, qualified in hot water boiler installation and maintenance.

This hydronic boiler must be installed in accordance with the procedures detailed in this manual, or the Laars warranty will be voided. The installation must conform to the requirements of the local jurisdiction having authority, and, in the United States, to the latest edition of the National Fuel Gas Code, ANSI Z223.1.

Who are Laars Heating systems and what do they do?

Learn About Who We Are. Laars Heating Systems is one of the nation’s leading boiler and water heater manufacturers for both residential and commercial heating. From high-efficiency, combination systems for residential heating and hot water to systems that supply entire stadiums, the Laars family of more than two dozen heating products…

Which is the Best Mini therm for home heating?

The Laars Mini-Therm gas-fired residential hydronic boiler is an ideal heating appliance that can reduce homeowners heating costs and has plenty of capacity to keep even the largest home comfortable on the coldest days.
