TIG (Tungsten Inert Gas) and Heliarc welding are names for the same type of welding, in which an arc is produced with a non-consumable tungsten electrode. … However, the extra work pays off, as the welder has much more control over the strength and quality of the welds.

What is Heliarc welding used for?

You may even hear it referred to as Gas Tungsten Arc Welding. Heliarc welding is one of many methods that welders use and is considered one of the most challenging to perfect. It is an ideal weld to use on thin metals such as stainless steel, aluminum, and other non-ferrous metals.

What is Heliarc?

Heliarc, which is also known as Gas Tungsten Arc Welding (GTAW) or more popular Tungsten Inert Gas (TIG) welding, was perfected in 1941 by Russell Meredith. For the welding process, a welder will make an arc in between the base metal and the tungsten electrode (the non-consumable).

Why is TIG called Heliarc?

Russell Meredith of Northrop Aircraft perfected the process in 1941. Meredith named the process Heliarc because it used a tungsten electrode arc and helium as a shielding gas, but it is often referred to as tungsten inert gas welding (TIG).

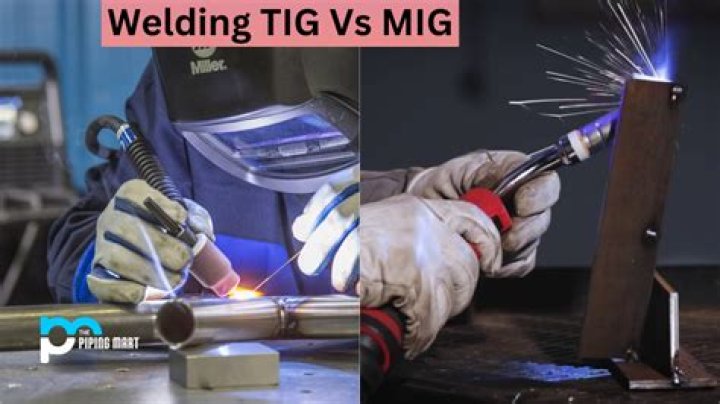

Which is better TIG or MIG welding?

Object thickness: MIG can weld thicker metals faster than a TIG weld. … TIG welds are better for thinner metals and smaller projects because they produce precise and clean welds. MIG welds work well with larger projects with thick metals that need longer, continuous runs.

How much do Heliarc welders make?

Annual SalaryMonthly PayTop Earners$64,500$5,37575th Percentile$57,500$4,791Average$43,784$3,64825th Percentile$32,000$2,666

What type of welding is strongest?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.

What metals is TIG welding good for?

TIG welders can be used to weld steel, stainless steel, chromoly, aluminum, nickel alloys, magnesium, copper, brass, bronze, and even gold. TIG is a useful welding process for welding wagons, bike frames, lawn mowers, door handles, fenders, and more.

What does MIG stand for in welding?

Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding are gas metal arc welding (GMAW) processes that use heat created from a DC electric arc between a consumable metal electrode and a workpiece which melt together to create a weld pool that fuses to form a join.

What is the highest paid welding job?

1. UNDERWATER WELDER. One of the recurring themes you’ll notice with all of the highest paying welding jobs is specialization. …
2. PIPELINE WELDER. …
3. CERTIFIED WELDING ENGINEER. …
4. CERTIFIED WELDING SUPERVISOR. …
5. MILITARY SUPPORT WELDER. …
6. CERTIFIED WELDING INSPECTOR. …
7. AEROSPACE WELDER.

Article first time published on

What is short arc welding?

4 Short Circuit (Short Arc) Welding Short arc welding uses small wire in the range of . 030 in. … A small, fast-freezing weld puddle is obtained. This welding technique is particularly useful for joining thin materials in any position, thick materials in the vertical and overhead position, and for filling large gaps.

Can you TIG weld without gas?

Simply put, NO, you can’t Tig weld without Gas! Gas is required to protect both the Tungsten Electrode and the weld pool from Oxygen. Most Tig Welder torches are also cooled by the gas, so not using gas would risk burning out the Torch. … You might also find my article Can you use the same Gas for Mig and Tig useful.

Is cold welding the same as TIG welding?

The essential difference between this process and contact welding is that this is an arc welding process whereas contact welding uses pressure. … There is also a TIG welding process, which is also known as cold welding.

Is TIG welding harder than MIG?

Downside: TIG is much harder to learn than the other methods. It requires a highly skilled operator, as it demands the simultaneous use of both hands and a foot. TIG welding is also significantly slower than either MIG or stick, and demands that the surface of the workpiece be absolutely immaculate.

Which welding joint is the weakest?

The toe of the weld is often the “weakest link” in a weld. This is due mainly to geometry and subsequent stress concentrations.

What are the 3 types of welding?

Three of the most common are Arc, MIG (Metal, Inert Gas) or GMAW (Gas, Metal Arc Welding), and TIG (Tungsten Inert Gas) welding. In order to know which process is best for the particular job you’re working on, here’s what you should know about each of them. Arc welding is the oldest of these three welding processes.

How do I know if my weld is strong?

A good weld is easy to distinguish. It will be straight and uniform with no slag, cracking, or holes. There will be no breaks in the weld. It shouldn’t be too thin and there should be no dips or craters in the bead.

How much does MIG welders make?

How much does a MIG Welder make? The average MIG Welder salary is $30,542 per year, or $14.68 per hour, in the United States. People on the lower end of that spectrum, the bottom 10% to be exact, make roughly $25,000 a year, while the top 10% makes $36,000.

How much do TIG welders make in California?

The average salary for a tig welder is $21.79 per hour in California.

How much does a certified welder make in California?

The average Welder I salary in California is $47,866 as of November 29, 2021, but the range typically falls between $42,670 and $55,000.

What type of welding is GTAW?

Gas Tungsten Arc Welding: GTAW Gas tungsten arc welding (GTAW) is also known as TIG welding, which stands for tungsten inert gas. Just like in GMAW welding, an inert shielding gas is used.

What is TIG welding process?

Tungsten Inert Gas (TIG) welding uses the heat generated by an electric arc struck between a non-consumable tungsten electrode and the workpiece to fuse metal in the joint area and produce a molten weld pool. … TIG produces very high quality welds across a wide range of materials with thicknesses up to about 8 or 10mm.

Can you mig weld aluminum?

Aluminum is a tricky metal to weld with a MIG welder because it takes more heat than mild steel (Usually in the range of 21 to 24 volts). The minimum aluminum thickness you should attempt is roughly 14 ga. To 18 ga. Any thinner than that and you’ll need a TIG welder.

What are the disadvantages of MIG welding?

• Higher initial setup cost.
• Atmosphere surrounding the welding process has to be stable (hence the shielding gasses), therefore this process is limited to draught free conditions.
• Higher maintenance costs due to extra electronic components.

Which is better MIG or MAG?

MIG welding is preferred for joining non-ferrous metals (like aluminum). MAG welding is preferred for joining ferrous metals (like mild steel or stainless steel).

Can you use CO2 for MIG welding?

The most common of the reactive gases used in MIG welding is Carbon Dioxide (CO2). It is the only one that can be used in its pure form without the addition of an inert gas. CO2 is also the least expensive of the common shielding gases, making it an attractive choice when material costs are the main priority.

What are the disadvantages of TIG welding?

• TIG is a time-consuming process – They are slower than any other welding process. …
• More complicated – Highly skilled and professional workers are needed to perform TIG welding.
• Safety issue – Welders, are exposed to high intensity of light which can cause eye damage.
• High initial cost.

What materials can not be TIG welded?

Some examples of material combinations that cannot be fusion welded successfully are aluminum and steel (carbon or stainless steel), aluminum and copper, and titanium and steel.

What metals Cannot be TIG welded?

• Titanium and steel.
• Aluminum and copper.
• Aluminum and stainless steel.
• Aluminum and carbon steel.

Why do welders drink milk?

Holding the milk in your mouth forces the welder to breathe through their nose. Again, this process relies on the respiratory system with the welding fume being transported to the welder’s lungs.

What type of welding is most in demand?

MIG is most often used in high production welding operations, such as in shops and factories. Indoor factory environments are ideal for MIG because MIG welding requires clean surfaces and windless conditions (otherwise the gas shielding will be disrupted, allowing reactions and imperfections in the weld).
