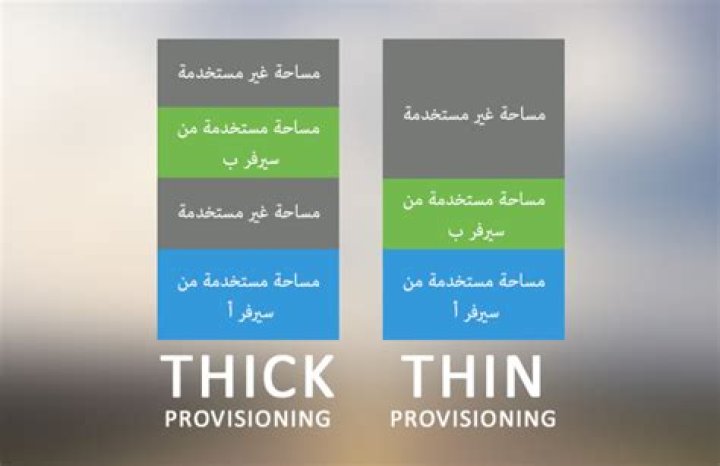

Thin provisioning helps to avoid wasted physical capacity and can save businesses on up-front storage costs. However, thick provisioning has the benefit of less latency because all storage is allocated at once when virtual machines are created.

What is the difference between thin and fixed provisioning?

Fixed provisioning The size of the virtual disk is the actual amount of physical storage space allocated from the pool. Thin provisioning The size of the virtual disk represents the maximum amount of physical storage space that can be allocated from the pool.

What is the difference between thick and thin storage provisioning When creating virtual machines?

A thick disk has all space allocated at creation time. This space may contain stale data on the physical media. … Space required for thin-provisioned virtual disk is allocated and zeroed on demand as the space is used. Unused space is available for use by other virtual machines.

What is thick provision and thin provision in vmware?

Lazy zeroed thick-provision disks are good for their short creation times, but they do not provide as much speed as eager zeroed disks do, and are less secure. Thin-provisioned disks are the best choice to save datastore space at the moment of disk creation.

What are the advantages of thin provisioning?

The benefits of using thin provisioning are as follows: Allows storage to be provisioned but not consumed until data is written. Storage-provisioning time is greatly reduced, because you can create the storage for an application quickly, without depending on the actual physical space available.

What are the advantages of thick provisioning?

• Less latency – thick provisioning can help by offering less latency since all the storage space has been allocated upfront.
• Accounts for growth – Since the storage is pre-allocated, IT managers provision larger LUNs to allow applications to grow into the capacity it may need.

How do I know if my VMDK is thick or thin provisioned?

From the service console you can compare the output of the ‘ls’ command with the output of the ‘du’ command to tell if the vmdk is thin provisioned.

Is thin provisioned drive SSD?

Thin provisioning means space is only consumed on these expensive drives when data is written, leaving as much space free as possible and the drives operating at peak performance. While thin provisioning is gaining popularity, few vendors offer the technology for SSDs.

Is thick provisioning faster?

A thick-provisioned eager-zeroing disk will write data faster than a thin-provisioned disk. … If users seek to write more data than there is physical storage space, the drive will max out and they’ll be unable to save anything.

What is provisioning in VMware?

What is disk provisioning in VMware? When you create or provision a VMware Virtual Machine, Virtual Machine data is stored inside a virtual hard disk. It is a virtual construct representing a physical disk.

Article first time published on

What is thin provisioning in storage?

Thin provisioning (TP) is a method of optimizing the efficiency with which the available space is utilized in storage area networks (SAN). TP operates by allocating disk storage space in a flexible manner among multiple users, based on the minimum space required by each user at any given time.

What is thin provisioned space?

Thin provisioning is a mechanism that applies to large-scale centralized computer disk-storage systems, SANs, and storage virtualization systems. Thin provisioning allows space to be easily allocated to servers, on a just-enough and just-in-time basis. Thin provisioning is called “sparse volumes” in some contexts.

Can I expand thick provisioned disk vmware?

You can just increase the size, yes. It creates unpartitioned space as far as the guest sees, so you would need to extend your NTSF or EXT partition to use the new space.

How do you change thin to thick provisioning?

1. Power off the virtual machine.
2. In vSphere Client, right-click the virtual machine in the inventory.
3. Click Edit Settings to display the Virtual Machine Properties dialog box.

What is a LUN in storage?

A logical unit number (LUN) is a unique identifier for designating an individual or collection of physical or virtual storage devices that execute input/output (I/O) commands with a host computer, as defined by the Small System Computer Interface (SCSI) standard.

What is LUN provisioning?

A Thin Provisioned LUN takes up actual used space and asks for more only when you write data to it. For example, if you create a Thin Provisioned 100GB LUN and store 20GB files, the space it consumes on the volume is 20 GB, whereas a Thick Provisioned LUN would take up 100 GB right from the start.

How do I change from thick provisioned to thin in VMware?

1. Check VMware hard disk type. …
2. Shut down VM. …
3. Enable SSH on VMware ESXi host. …
4. SSH into the ESXi host. …
5. Navigate to the VM folder. …
6. Clone the VMDK to a thin provisioned disk using vmkfstools. …
7. Rename old flat file. …
8. Rename new flat file.

How do you shrink a thin provisioned VMDK?

1. migrate the VM to another datstore, selecting “Thick Provisioned” as the target format.
2. run sdelete within the guest OS to zero out unused blocks.
3. migrate the VM back to the original datastore, selecting “Thin Provisioned” in the wizard.

What is thin provision Linux?

Using thin provisioning, you can manage a storage pool of free space, known as a thin pool, which can be allocated to an arbitrary number of devices when needed by applications. You can then create devices that can be bound to the thin pool for later allocation when an application actually writes to the logical volume.

What is thin provisioned in VMware?

When implementing thin provisioning in VMware environment: Thin provisioned disks can grow to the full size specified at the time of virtual disk creation, but do not shrink. After allocating blocks, blocks cannot be un-allocated. By implementing thin provisioned disks, you are able to over-allocate storage.

What is thin provisioning in NetApp?

NetApp thin provisioning is designed to allow you to present more logical storage to hosts or users than you actually have in your physical storage pool. Instead of allocating space upfront, storage space is dynamically allocated to each volume or LUN as data is written.

Which two options can change the thin provisioned disk to thick provisioned?

Use Storage vMotion of the running VM to the same datastore and select Thick Provision. Power off the VM, locate the VMDK disk in the Datastore browser, right-click that and select Inflate. Use Storage vMotion of the running VM to another datastore and select Thick Provision.

Which disk type is the optimized for performance?

Thick lazy zeroed disks offer better performance and security while eager zeroed disks offer faster creation speeds. These disks reduce latency by preallocating physical storage on a disk. Thin disks optimize disk efficiency by allocating disk storage space between multiple users.

How do you change from Lazy zero to eager zeroed?

Ensure the VM is turned off. The following command lists the datastores: “ls” is used to List subregions – used to list out files in a directory. Use “vmkfstools -k” to convert a Lazy Zeroed disk to a Eagerly Zeroed disk.

What does Vmdk stand for?

VMDK (short for Virtual Machine Disk) is a file format that describes containers for virtual hard disk drives to be used in virtual machines like VMware Workstation or VirtualBox.

What is over provisioning?

Over-provisioning is a function that provides additional capacity specifically for data to be erased from an SSD, without interrupting system performance. The dedicated over-provisioning space may be adjusted to the user’s preference, delivering benefits that include faster speed and longer SSD life.

How do I know if my hard drive is SSD or HDD?

Simply press the Windows key + R keyboard shortcut to open the Run box, type dfrgui and press Enter. When the Disk Defragmenter window is shown, look for the Media type column and you can find out which drive is solid state drive (SSD), and which one is hard disk drive (HDD).

What is storage provisioning?

Storage provisioning is the process of assigning storage, usually in the form of server disk drive space to optimize the performance of a storage area network (SAN). … This mechanism lets you specify storage attributes and conditions, and the template can be used by the storage operators to allocate storage.

In which type of thick provisioning every block is prefilled with a zero?

Thick Provision Lazy Zeroed: Space required for virtual disk is allocated during creation. Every block is filled with a zero when data is written on the block. This type is the default disk type. Thick Provision Eager Zeroed: Space required for virtual disk is allocated during creation.

What is thick provision lazy zeroed in VMware?

Thick provision lazy zeroed is a provisioning format for a virtual machine (VM) disk that creates a virtual disk in a default thick format. … Lazy zero means that blocks containing older data on the storage device are only cleared when the virtual machine writes new data to the disk for the first time.

What is OS hypervisor?

A hypervisor, also known as a virtual machine monitor or VMM, is software that creates and runs virtual machines (VMs). A hypervisor allows one host computer to support multiple guest VMs by virtually sharing its resources, such as memory and processing.
