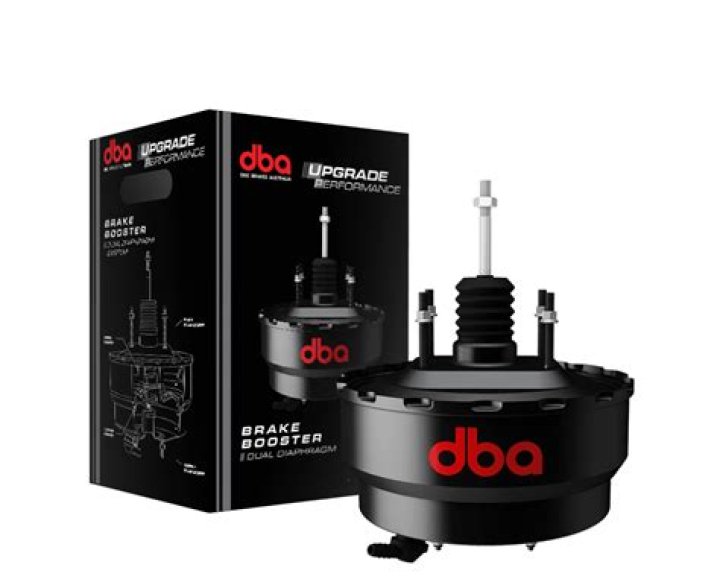

SINGLE DIAPHRAGM BOOSTERS work well with four wheel drum systems or front disc brakes and rear drum applications. DUAL DIAPHRAGM BOOSTERS are needed for four wheel disc systems because they can produce a higher level of brake assist even if their physical size is smaller. …

What is better single or dual diaphragm brake booster?

Whether you choose a single or dual diaphragm booster depends on how much brake assist your vehicle needs. A dual diaphragm offers the most assist, and is ideal on an all-disc system or a disc-drum combination. If you want to keep your vehicle’s four-wheel drum system, then a single diaphragm booster would be ideal.

Are all brake boosters the same?

The Difference Between Power Brake Booster & Vacuum Brake Booster. If you own a vehicle made after 1968, it’s likely that you have a power brake system. … In all truth — a power brake booster and vacuum brake booster are the same part.

What is the purpose of a tandem diaphragm brake booster?

A tandem diaphragm brake booster includes first and second diaphragms disposed in a housing and a pair of diaphragm pistons which are axially movable for assisting braking efforts through manual operation.

What is the advantage of a dual diaphragm vacuum booster?

DUAL DIAPHRAGM BOOSTERS are needed for four wheel disc systems because they can produce a higher level of brake assist even if their physical size is smaller. Dual diaphragm brake boosters tend to give extra braking even when the vacuum from the intake manifold is low.

How do I know if my brake booster has a vacuum leak?

Apply vacuum to the booster with the pump to bring it back to 20HG. Depress the brake pedal and hold it down for 30 seconds. You should see booster vacuum drop a little and then hold steady for the remaining of the 30 seconds. If vacuum drops considerably, replace the brake booster.

How do I choose a brake booster?

To determine the assist provided by the brake booster, a very simplified equation is to multiply atmospheric conditions by the diameter of the booster and multiple that by the number of diaphragms in the booster. The resulting number is the amount of assist the booster provides.

What are the three types of power assist brake boosters?

• Vacuum Brake Booster. The vacuum brake booster is the most commonly used type. …
• Vacuum Pump. Some road vehicles use a vacuum pump instead of the engine intake manifold. …
• Hydraulic Brake Boosters.

What are the two types of brake assist systems?

There are two types of brake assist systems. The classic type is the mechanical brake assist and the newer type is the electronic brake assist. The thing that separates the two brake assist systems is how they detect emergency braking when you step on the brake pedal.

How do I know if my master cylinder or brake booster is bad?

1. Illuminated brake warning light on the console.
2. Leaking brake fluid.
3. Insufficient braking pressure or hard brakes.
4. Spongy brakes or sinking brake pedal.
5. Engine misfire or stalling when the brakes are applied.

Article first time published on

What does a bigger brake booster do?

More brake pedal output force allows more air into the rearmost chamber, resulting in more pressure difference and consequently more movement … For this reason larger boosters generate higher output forces.”

Are brake boosters universal?

Power Brake Boosters – Universal. Available in beautiful chrome plated, black chrome, stealth black, gold zinc and a variety of powder coated colors. Single and dual diaphragm styles available in 7″, 8″, 9″ and 11″ diameters fit virtually all hot rods, customs and muscle cars.

Can you drive without a brake booster?

Yes, though you’ll need to apply a fair amount more pressure to come to a complete stop. There’s still a mechanical connection within the booster, even if the boost is lost. One can also modify a cars brake system to remove the booster.

Can a brake booster leak fluid?

If brake fluid is leaking into the vacuum booster, the brake fluid can cause the rubber diaphragm to fail in the brake vacuum booster. So it’s possible when fluid is leaking into the brake booster that the brake vacuum booster may need to be replaced.

What happens when a brake booster goes bad?

A bad brake booster makes the brake pedal much harder to depress. As the booster fails, it loses its ability to provide additional force against the master cylinder piston. The driver of the vehicle must now provide all of the braking power — a difficult task.

What is the purpose of a vacuum booster check valve?

The brake booster check valve helps regulate the vacuum in the brake booster. When the engine is off or if the vacuum hose has a leak, the one-way check valve ensures no external air enters the vacuum brake booster.

What is hydraulic brake boost?

Hydro-boost brake boosters use the pressure of the power steering pump to power the brake booster. … The booster is essentially a power steering unit that supplements the driver’s input. Hydro-boost was first introduced to solve issues associated with the safety and fuel-efficiency mandates in the 1970s.

What bore size master cylinder?

The most important factor in how your brakes function is the bore size of the master cylinder. This will directly affect how your system feels and all manufactures offer a variety of choices. The most common sizes are 3/4-inch, 7/8-inch, 1-inch and 1-1/8-inch, although other sizes are often offered.

How do I choose a brake master cylinder?

To get to this number you use the formula for Area which is: Area = 3.14 (Pi) multiplied by the radius squared. So you calculate the radius of 1” bore which is simply half of the diameter which equals . 5” (half an inch). The result is that a 1” master cylinder has a radius of half an inch.

Can I use a drum brake master cylinder with disc brakes?

On a drum brake master cylinder, you will also have residual pressure valve to maintain a certain amount of pressure at all times. … Another question we hear is can I use a disc or drum brake master cylinder on a four wheel disc brake system and the answer is simply, no you cannot.

Why do I hear air when I press on my brakes?

Cars can make many noises, and a hissing noise when braking can be among them. … But if you hear a hissing sound when pushing down or letting up on the brake pedal, it usually is caused by the brake booster leaking air, which could mean there’s a leak in the booster diaphragm, master cylinder gasket, or vacuum hose.

Under which conditions is a vacuum brake booster vacuum suspended?

Vacuum booster may also be called atmospheric suspended. When the brakes are released and the engine is running, there is a balanced atmospheric pressure on both sides of the diaphragm and no boost pressure can be created.

Can a leaking brake booster cause rough idle?

Depending on the age and model of the vehicle, you may get trouble codes from the ECM (OBDII) regarding the vacuum leak. If not (and possibly also), then you may experience a rough idle, hesitation on acceleration and poor power brake performance.

Is Brake Assist the same as AEB?

Autonomous Emergency Braking, Automatic Emergency Braking or, simply, Auto Emergency Braking. There are also several brand terms like ‘brake support’ or ‘brake assist’ to add to the confusion. … Indeed, some of them are now offering discounts on insurance for cars that have AEB fitted.

Is Brake Assist the same as ABS?

Brake assist is designed to complement, not replace, the anti-skid technology of ABS. ABS rapidly pumps the brakes during a hard stop to prevent your vehicle from skidding and sliding. … Brake assist simply allows the ABS system to stop the car even more effectively.

What does ABS stand for?

ABS stands for Anti-lock Braking System, a key safety feature in most modern cars and trucks. Anti-lock brakes work with a car’s regular brake system by automatically pumping them in the event of a sudden stop.

How much vacuum does a brake booster need?

A vacuum-assisted Brake Booster needs at least 16-18 in. Hg at idle to operate effectively. The first step is to install a Vacuum Gauge.

Why are most vehicles with disc brakes equipped with a power booster?

A brake booster assists braking by multiplying the effort applied to the master cylinder when the driver pushes down on the brake pedal. The booster doubles or triples the force applied. This reduces the pedal effort needed to stop the vehicle for easier, safer braking.

How long does a brake booster last?

How often do brake boosters need to be replaced? Normally, a vacuum booster will last from 150,000 miles to the lifetime of the vehicle. In especially dry climates, dry rot may cause deterioration of the internal diaphragm, and require replacement.

Have a full brake pedal when engine is off but goes to floor when running?

If the brake pedal goes to the floor but still stops, you could be having a failed brake power booster. The power booster’s role in the braking process is giving power assistance when the driver depresses the pedal. This means that you don’t have to make a very high amount of power to stop the car.

Can master cylinder cause brakes to stick?

Yes, a master cylinder failure can cause your master power brakes to stick. Normally, your master cylinder is filled with brake fluid. When you press the brake pedal, the hydraulic pressure in your brake system increases, which forces the calipers to grab the rotor or the shoes to engage the brake drums.
