What is the difference between a shower valve and a shower cartridge?

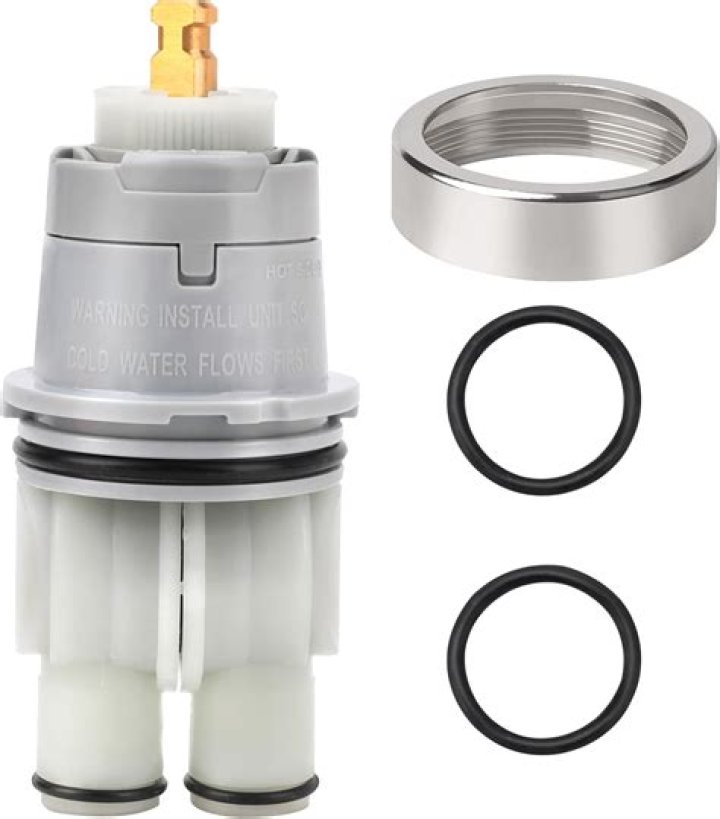

Conventional shower stem valves consist of a metal body concealed behind the shower stall’s wall. Cartridge shower faucet assemblies might consist of one or two handles. A single-handle cartridge faucet opens and closes water flow with an up and down motion, and regulates temperature with a left or right motion.

Is there a shut-off valve for shower?

In a plumbing system made with PEX flexible plumbing tubing, the shut-off valves for the shower and other plumbing fixtures are sometimes located at the central manifold that controls all the PEX tubing. This is usually located near the main shut-off valve for the house.

What should I do if I Cannot Find my shower valve?

Turn off the water supply to the entire house if you cannot find the water stops for your shower. Cut an access hole to better reach the valve. After you remove the trim plate, you should see a small opening in the wall. If the wall opening is not at least 12 inches (30 cm) by 12 inches (30 cm), you will need to enlarge it.

Why is there no hot water in my shower?

It works with a temperature-sensitive element that adjusts the mix depending on the hot water mixing valve adjustment and the temperature of the incoming water flowing through the valve. A worn-out, broken or is improperly positioned mixing valve could be the reason you are not getting hot water in your shower.

Where are the water stops on a shower valve?

Master Plumber, Roto-Rooter Plumbing & Water Cleanup Expert Interview. 29 March 2021. The water stops are typically found to the right and left of the valve cartridge. If there are 2 stops for hot and cold water, shut off both. Usually, the water stops will have flat head screw heads that let you turn them on and off.

How do you repair a tub and shower valve?

Step 1: Turn off water. Turn off the water to the bathtub and shower at the shut-off valve. Let any remaining water flow out of the faucet. Step 2: Remove the cap and screw. Remove the cap and screw from the faucet handle using a screwdriver, and take off the handle and escutcheon.
