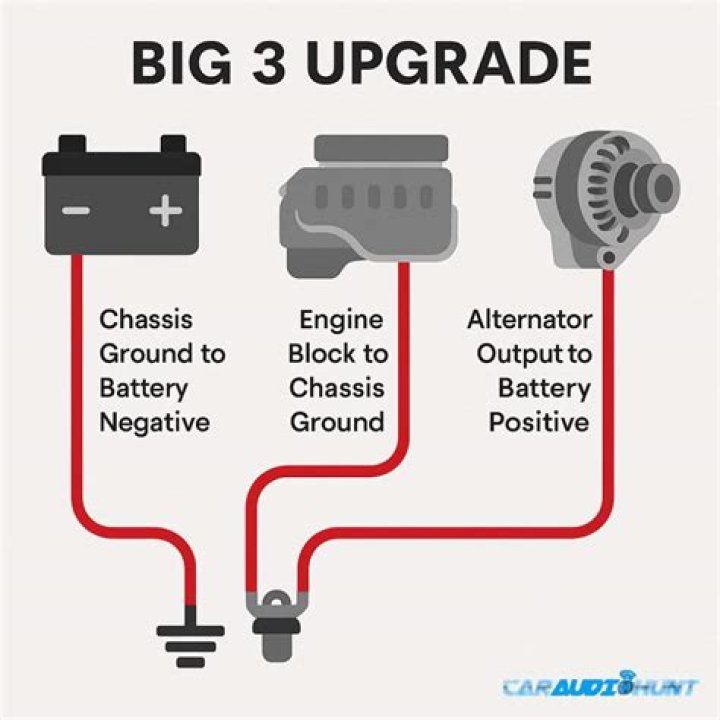

A good, cost-effective improvement is to perform the “Big Three” electrical upgrade. … This upgrade replaces or augments three key cables in the electrical system with 1/0 or 4 gauge wires: the battery ground to chassis wire, the chassis to engine block wire, and the alternator plus to battery plus wire.

What does the big three upgrade do?

A big 3 upgrade will allow more current flow to all of your stereo components, improving your electrical system by ensuring more consistent voltage. This upgrade entails replacing the three main cables in your electrical system with 4 gauge or 1/0 wires.

Can subwoofers damage your alternator?

Subwoofers on their own cannot damage your alternator. However, subwoofers combined with their amplifier and the corresponding amplifier can damage your alternator if it draws too much power from your battery. And this can cause the alternator to overheat and potentially damage.

Do I need to fuse my big 3 upgrade?

You will need to fuse the new cable, but replacing it in the first place only wasted your time, and running without a fuse is risking a fire. This is exactly why you don’t mess with this cable with doing “big 3” unless you add a high output alternator.

Are capacitors worth it?

Capacitors offer some small amount of protection for amplifiers from potentially damaging under-voltage surges over time if you play loud music regularly. But most of the reason for adding capacitors is to keep your car voltage stable.

What does the Big 3 consist of?

The Big Three wiring upgrade This upgrade replaces or augments three key cables in the electrical system with 1/0 or 4 gauge wires: the battery ground to chassis wire, the chassis to engine block wire, and the alternator plus to battery plus wire.

What's better OFC or CCA?

Two standard types of wire for car audio are CCA (Copper-Clad Aluminum) and OFC (Oxygen-Free Copper). … It’s less expensive than a wire that’s made up entirely of copper such as OFC. It’s also lighter than pure copper wire. CCA does a better job of conducting electricity than a wire made entirely out of aluminum.

Should I ground my alternator?

The ground wires are especially important. … The alternator is grounded to the engine block by its mounting points so the engine block itself becomes an electrical ground distribution block. You just need to find a suitable bolt to secure your additional ground wire.

What happens if the power wire is too small for an amp?

If too small of a size is used, the wire could melt because of the large amount of current flowing through it compared to how much the cables can handle. … Damage can occur to the amplifier when there is not enough current flowing to its circuits, especially when the music peaks.

Do I need a bigger alternator for my sound system?

You might need a bigger alternator for your sound system When it comes to car audio, more power means more sound and vice versa. If you want your music to be big and loud with a huge bass response, you need a big amplifier with a big subwoofer—and a lot of power to run it.

Article first time published on

Can I ground alternator to battery?

The alternator is mounted on the engine and the engine should have a ground strap to the frame. From the frame there is a ground strip to the battery. That’s a long way for a ground circuit. Works fine when the truck is new but after 30+ years you’ll have all kinds of corrosion on metal parts.

Can I use 4 gauge wire for the Big 3?

The “Big 3” name is because we will be upgrading three key wires in the vehicle. Here are the wires you need to upgrade: Ground wire from battery to frame: Use at least a 4 AWG wire and place it directly under the factory ground strap that runs from the negative battery post to the frame of the vehicle.

What is the big 4 upgrade in car audio?

Big 4 Power Wire Kit. This kit is made to upgrade your factory positive and negative wires to increase your cars electrical system. By increasing the size of the wire, it will raise the alternators output voltage which will improve everythings performance that uses the 12 volt system.

Are Subs illegal?

Sound systems are generally perfectly legal as long as they aren’t impacting the quiet enjoyment of other individual’s homes. Otherwise, you could potentially run into some trouble.

Can bass break tempered glass?

No, not unless the wall is just about ready to fall under it’s own weight anyway.

Why do my lights dim when my subs hit?

The problem is being caused by the large, sudden current draw that your subwoofer amplifier requires when bass notes are played at high volume. If your electrical system (especially your alternator) can’t keep up then your vehicle voltage will drop and cause the headlights to dim.

Will a capacitor help my alternator?

Many people can get away with a capacitor and some need to upgrade the alternator. The capacitor really helps with those brief moments where the amps pull lots of power. The caps hold a reserve to be pulled when needed.

Do I need a capacitor for a 1000 watt amp?

A: The rule of thumb is to put in 1 Farad of capacitance for every 1,000 watts RMS of total system power. But there is no electronic penalty for using larger value caps, and in fact, many see benefits with 2 or 3 Farads per 1,000 watts RMS. The larger the cap, the more charge is available for the amp when it needs it.

Will a capacitor drain my battery?

Will a capacitor drain my battery? – Quora. No. The very definition of a capacitor has two plates (foil or another type of metal) separated by an insulator. Capacitors will only transfer an alternating current power, be it line voltage, radio frequencies, or anything else that varies in strength.

Is tinned OFC better?

Tinned copper will not tarnish or oxidize like bare copper. Even Oxygen Free Copper (OFC), which is copper that has been refined to a purity of at least 99.95%, over time when exposed to the elements will tarnish. … Exposed copper is more likely to oxidize than copper that has a jacket, so the ends of course.

Is copper clad aluminum wire safe?

This type of conductor is also cheaper than buying a pure copper. One advantage of having this kind of conductor is that, you will be able to solder it to another copper, unlike using pure aluminum. So yes, it is still safe to use unless overloaded.

Is copper clad aluminum wire Good for automotive?

Typically, you will want to use oxygen free copper wire for automotive electronics. It has the best conductivity vs cost and is the most popular in the industry. … This is called copper clad aluminum wire commonly called CCA wire. It is cheaper and lighter than pure copper wire.

Is the alternator a generator?

An alternator is a type of electric generator used in modern automobiles to charge the battery and to power the electrical system when its engine is running.

Is a 160 amp alternator good?

The high amp alternator will give you more replacement juice if you are running any high amp load appliances. The 160 amp is known to be used on emergency vehicles that are at a standstill and still running lots of 12v power thru said appliances.

Can you oversize electrical wire?

yes, as long as it fits under the breaker lugs it is fine. Many times wire is oversized due to long distance pulls resulting in increased voltage drop. The thing you cannot do is undersize the wire for the rated breaker it is under.

What gauge wire should I use for a 2000 watt amp?

Up to 500 watts RMS = 8 gauge. 500 – 1000 watts RMS = 4 gauge. 1000 – 1500 watts RMS = 2 gauge. 1500 -2000 wats RMS = 0 gauge.

What happens if wire gauge is too big?

If a wire gauge is “too big” then it is a lot more expensive and is harder to bend, as well as more difficult to attach with wire nuts or to switches. Other than that, not much of anything.

What are the symptoms of a bad engine ground?

• Dim lights.
• Flickering lights.
• Electrical devices working erratically.
• Faulty fuel pump.
• Slipping or burned out AC compressor clutch.
• Intermittent failure of sensors.
• Damaged throttle or transmission cables.
• Hard starting.

Where is the engine ground wire located?

The Ground Strap is located between the negative car battery terminal and the body of the car. You do also have a ground strap between the engine and the body. It is often located very visible, so finding it should not be a problem if you find the car battery.

Which wire is ground on alternator?

Find the terminal on the alternator labeled “Neg”, “F” or “Field.” This is the ground connection. Typical alternators have this terminal although some alternators don’t as they are grounded directly to the engine. The wire that connects to this terminal is black and the opposite end attaches to a metal part of the car.

How big of an alternator do I need for 3000 watts?

3000 watt / 12V is equal to 250A. A 250A alternator is needed to keep up with it. Since your engine would have to work just as hard as any portable 3KW generator to keep up with the amplifier, you would need a large fuel tank.
