Both schedule 40 and 80 PVC are used widely around the world. Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch).

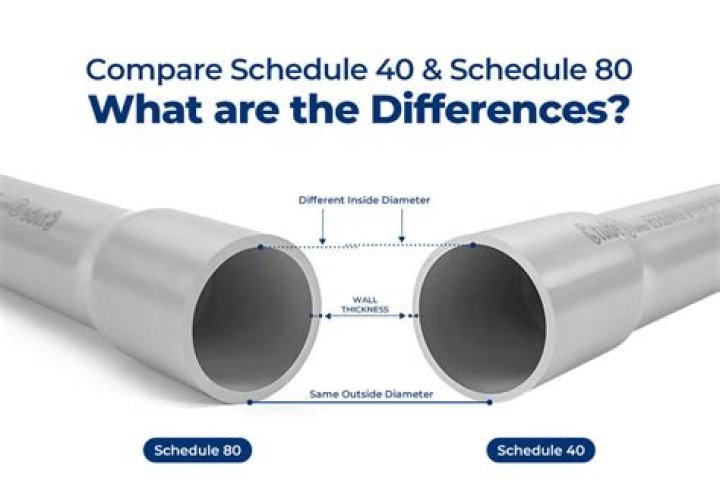

What is the difference between Schedule 40 and Schedule 80 PVC conduit?

Both schedule 40 and 80 PVC are used widely around the world. Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch).

Where is schedule 80 pipe used?

Schedule 80 PVC pipe is used for industrial and higher pressure water flow applications. Schedule 80 PVC pipe can handle 140 degrees F in temperature. The pipe comes in standard 10′ or 20′ sections and is available in plain end or belled end so no coupling is needed for installation.

Which is better schedule 40 or 80?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

What is Schedule 80 pipe rated for?

Larger Schedule 80 pipe that is used for internal installation ranges from 2 inches to 3 1/2 inches in diameter. A 2-inch pipe is rated for 920 PSI of continuous service pressure and will burst at 7,340 PSI. Pipes 3 1/2 inches in diameter have a service rating of 990 PSI and a burst pressure of 7,950 PSI.

What is the difference between white and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

Is Schedule 80 PVC safe for drinking water?

PVC and CPVC pipe are both designed to withstand damage from virtually all corrosive chemicals and gases. … Some people with new piping report water having a “slightly plastic taste,” but this taste is not harmful and usually disappears quickly. Using PVC materials for potable / drinking water is not a health risk!

What wall thickness is schedule 80 pipe?

A 4 inches (100 mm) Schedule 80 pipe has an outside diameter of 4.500 inches ( 114.30 mm), a wall thickness of 0.337 inches (8.56 mm), giving a bore of 3.826 inches (97.18 mm)

Which is stronger PVC or CPVC?

Differences in Pipe Strength Both materials are very strong, but CPVC is harder than PVC, which makes it more prone to breaking. CPVC is more brittle than PVC and can be warped or cracked more easily, but it is also more flexible than PVC.

Can you glue white PVC to GREY PVC?

White (water) PVC is pressure rated and gray (Electrical) PVC is not. White PVC is softer than Gray so it bends easier. Gray uses the single step clear PVC cement won’t leave blue or read stains as many times it’s in the open and can be seen. (Note you can use the clear cement on white for non pressure uses.)

Article first time published on

When should you use Schedule 80 PVC?

What is schedule 80 PVC used for? Because schedule 80 PVC is a thicker pipe, it is usually is used for applications that are commercial or industrial in nature. These more demanding applications generally require piping that will stand up to high pressures and harsh environments.

Do I need Schedule 80 PVC?

The only time schedule 80 PVC conduit would be required is when the service cable is exposed to physical damage. The AHJ needs to determine if the cables are exposed to physical damage since there is not a definition of physical damage in the code.

Can I use white PVC for electrical conduit?

The most noticeable difference between regular PVC and electrical PVC is the color of the pipes. PVC pipe that is used for plumbing is usually white while electrical conduit PVC is usually gray. … Therefore, Schedule 80 pipes should not be used as an electrical conduit.

How much pressure can schedule 80 PVC take?

For example, the operating pressure for 6” Schedule 80 PVC pipe is 280 psi. If the operating temperature is 140° F, the maximum operating pressure is now 62 psi (280 x . 22).

What is Schedule 80 PVC pipe rated for pressure?

Trade SizePart NumberPressure Rating (psi)1/258050208503/45807520690158100206301-1/45812520520

Is Schedule 80 pipe seamless?

Internal and external diameters, areas, weights, volumes and number of threads for schedule 80 steel pipes. Based on ASTM A53 – Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless. … Suitable for welding and forming like coiling, bending and flanging.

Is PEX better than PVC?

When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won’t corrode. … When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)

What is the safest pipe for drinking water?

Copper pipes with lead-free joint materials are the best choice for water pipes. They are long-lasting and won’t leach chemicals into your drinking water. However, copper pipes are generally more expensive, and copper’s intensive extraction and manufacturing process presents some environmental trade-offs.

Is CPVC pipe bad?

When CPVC pipes are burned, they release toxic fumes. This can present significant risks in residential fires. As CPVC pipes age, they become more brittle and can shatter or crack with a slight impact. This can lead to severe problems and significant repair work.

Can you put Romex in a conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Can I bury Schedule 40 PVC?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

What is the difference between Schedule 20 and Schedule 40 PVC pipe?

SCHEDULE 20 PVC PIPE The wall of the pipe is much lighter than that of Schedule 40, and must only be used in situations where vehicles, traffic, or any other type of equipment crossing the area will not be a factor.

Can I use orange CPVC cement on PVC?

The short answer to this question is “Yes.” You can use CPVC cement on your PVC pipes. … While both PVC and CPVC work just fine for cold-water plumbing, CPVC works better with hot-water plumbing, as PVC pipes will erode and fail over time if hot water is continuously forced through them.

How do I know if my pipe is CPVC?

PVC pipes are white or dark gray in color. CPVC is off-white, light gray, or yellow in color. Both pipe types have technical specifications printed on the side for easy verification.

Can you glue CPVC to PVC?

There is no special “CPVC to PVC glue,” so chemically joining CPVC and PVC requires solvent cement and primer that are strong enough to fully bond CPVC pipe. … Immediately apply a light layer of CPVC cement to the area that is primed outside the pipe and inside the fitting.

What is Schedule 80 steel pipe?

Schedule 80 will have a greater wall thickness, a smaller inside diameter and a higher weight than Schedule 40 pipe at a given nominal pipe size. Of course, all of these numbers will vary based on the nominal pipe size. There are also many other pipe schedule numbers as well.

Why is it called Schedule 40?

They devised “Schedule” numbers as designating “the wall thickness in that pipe diameter that would hold a given pressure for a given material tensile strength”. So the pipe thickness which would hold 600psi at 15 ksi material strength was designated as schedule 600/15= 40.

What is the difference between blue and clear PVC cement?

Medium Clear PVC Cement: Fast drying and suitable for potable water, pressure pipe, conduit and DWV applications. … Hot Medium Blue Lava PVC Cement: Extremely fast setting and the preferred formula for emergency, repair and cut-in work for potable water, sewer and DWV applications.

Is CPVC and PVC the same size?

No. CPVC is measured by O.D., which makes its sizing similar to hard copper. PVC is measured by I.D., which makes its sizing similar to iron pipe.

What is the difference between PVC glue and PVC cement?

Q: What is the difference between PVC solvent cement and PVC glue? … The solids contained in the solvent cement will then fill the gap between the pipe and fitting. Glue such as PVC glue, on the other hand, is only a bonding cement and will not work with an interference fit.

Can you use Schedule 80 PVC outside?

By contrast, Schedule 80 PVC is usually gray in color and has thicker walls; therefore, it can handle higher water pressures. Schedule 80 PVC is well suited for industrial and chemical applications. … The outside diameter is the same for a schedule 80 and a schedule 40 PVC pipe with the same “nominal” size.
