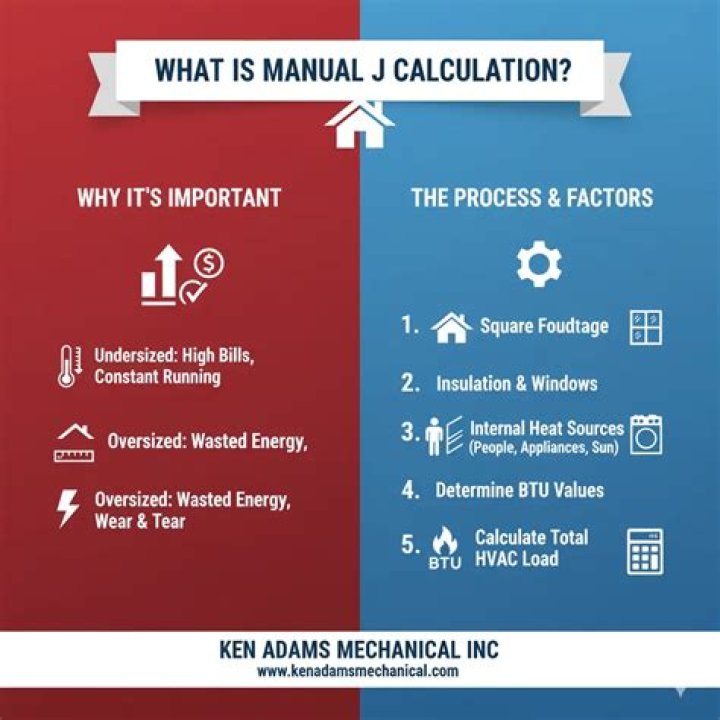

The Manual J calculation is a formula that identifies the HVAC capacity of a building. It might also be called an HVAC load calculation because it describes the size of equipment needed to heat and cool a building.

Do I really need a Manual J load calculation?

Homeowners should insist that a proper Manual J load calculation be performed before signing a contract. According to ACCA (The Air Conditioning Contractors of America), Manual J is the recommended hvac load calculation method for use in the United States.

Can I do my own Manual J calculation?

The Manual J is a very long process, but it gets you very accurate sizing of your space. But if you’re only doing a single project, paying for a whole Manual J program can be unnecessarily expensive. Fortunately, you can use a free program called Cool Calc, which will make your heat load calculation much easier.

What is Manual J?

Simply put, Manual J is a process developed by the Air Conditioning Contractors of America (ACCA) to accurately assess how much heating and cooling your home needs. … Manual J gives you and your HVAC contractor a clearer picture of your home’s heating and cooling needs.

What is a Manual J heat load calculation?

But, what is a Manual J load calculation? Simply stated a Manual J load calculation factors in the different characteristics of your home (such as square footage, position of your walls, building materials, etc.) to determine how much heating or cooling capacity your home needs.

What is Manual J in HVAC?

Manual J is the protocol used for determining the amount of heating and cooling that a home requires to keep its occupants warm in the heating months and cool and dry in the cooling months. … Your HVAC tech should use the latest software to aid in a Manual J calculation.

Why is Manual J important?

The most important reason to have a Manual J calculation for your home is MONEY. Oversized HVAC’s require more money for installation. The oversized equipment also costs more than properly sized equipment.

Who provides manual J?

The Air Conditioning Contractors of America (ACCA) publishes and updates Manual J and Manual D. These two technical procedure manuals cover residential load calculations, and ductwork design and sizing, both of which are vitally important components of successful air conditioner installation and operation.

How much does a Manual J Cost?

Size of ResidenceManual J CalculationManual D Calculation< 2000 sq.ft$250$1502000-3500 sq. ft.$350$2503500-5000 sq.ft.$450$3505000-6500 sq. ft.$550$450

What is the difference between Manual J and D?

Manual D — This procedure is used to design ductwork for a new HVAC system. It can only be done after Manual J is used to determine the heating or cooling load in each room. The ducts must be designed carefully to match the HVAC system; otherwise airflow velocity will be too great or too little.

Article first time published on

What is ACCA Manual J?

Manual J allows contractors to perform a load calculation on a residential building/home. Apart from the load calcu- lation being performed, the ducts must be sized and the correct size equipment must be selected.

How many Btus is a ton?

There’s a complicated mathematical formula involved in converting the weight of that ice into energy, but in the end a “ton” of air conditioning capacity represents roughly 12,000 BTU per hour. So a 2-ton unit has 24,000 BTU/hr capacity and a 3-ton has 36,000 BTU/hr, and so on.

What is ACCA Manual J load calculation?

The Manual J residential calculation is actually the proper method for sizing an HVAC unit—a technique designed by the Air Conditioning Contractors of America (ACCA). This calculation is commonly performed with complex computer programs, which require time, energy, and money.

Is Manual J free?

Cool Calc Manual J Software | Create a Free Account | Only $3/Report.

How do you calculate electrical load?

Calculating an Electrical Load in a Simple Circuit Let Power = Voltage * Current (P=VI). Let Current = Voltage/Resistance (I=V/R). Apply Kirchoff’s Second Law, that the sum of the voltages around a circuit is zero. Conclude that the load voltage around the simple circuit must be 9 volts.

How do you calculate heat load?

Heat load (BTU) = Length (m) x Width (m) x Height (m) x 141. So, for a room measuring 5m x 4m x 3m = 60 > x 141 = 8,460 BTU. (For measurements in feet, the formula becomes: Heat load (BTU) = Length (m) x Width (m) x Height (m) x 4)

How do you calculate load?

1. Add together the wattage capacity of all general lighting branch circuits.
2. Add in the wattage rating of all plug-in outlet circuits.
3. Add in the wattage rating of all permanent appliances (ranges, dryers, water heaters, etc.)
4. Subtract 10,000.
5. Multiply this number by . …
6. Add 10,000.

What is a manual s?

Manual S, Residential Equipment Selection, is the ANSI-recognized, national standard providing clear instruction for interpreting and applying original equipment manufacturers’ (OEM) expanded performance data.

WHO calculates heat load?

One of the more important aspects of new construction is the proper heating of a new structure. Understanding how much heating is required for a new home, warehouse, office building or retail store requires that your construction or HVAC contractor perform a heat load calculation. What is a heat load calculation?

What is a mechanical J?

Manual J (Residential Load Calculations) Manual J is the first step in the design process of a new HVAC system and analyzes a complex series of calculations, or load calculations, used to determine: Total amount of heat that is lost through the exterior of a home during the cooler months.

What is the difference between Manual J and Manual S?

Next, Manual S is used to match equipment with the specific conditions in your home. The Manual J results are compared to characteristics like static pressure, amount of air moved and capacity to ensure the equipment chosen is sized correctly.

What does ACCA stand for in HVAC?

Air Conditioning Contractors of America (ACCA) and North American Technician Excellence (NATE) are two nationwide, nonprofit HVAC accreditations that support many of the values found in reputable contractors. Air Conditioning Contractors of America.

How do I calculate HVAC size?

1. Step 1: Calculate the square footage of the area to be cooled. …
2. Step 2: Next, multiply the square footage obtained for each area by 25.
3. Step 3: Then, add 400 for each person who works in that particular area.
4. Step 4: Finally, for each window, add 1,000.

How do you calculate heating and cooling load?

1. Take the square footage of your home.
2. Multiply that by the average ceiling height in your home.
3. Multiplied by the difference in temperature desired and the temperature outside.
4. Times a multiplier that represents that the target building is a sealed structure (.135)

What is a manual n?

The Manual N for commercial load calculation is designed to instruct contractors and others on how to meet the complicated new heating and air conditioning requirements for commercial buildings.

What is the difference between infiltration and ventilation?

infiltration is air that leaks, while ventilation is drawn in on purpose.

What is latent heat gain?

Latent Heat Gain – is the energy added to the space when moisture is added to the space by means of vapor emitted by the occupants, generated by a process or through air infiltration from outside or adjacent areas.

How many BTU is 600 square feet?

Answer: Using the EPA’s 20 BTU per sq ft rule of thumb, the room size of 12,000 BTU air conditioners is 600 sq ft. Equally, 1 ton AC room size is about 600 sq ft. Again, when narrowing down your choice of an air conditioner, knowing how big an area you need to cool is your best friend.

What is the full form of BTU?

As previously discussed, BTU stands for British thermal unit and is defined in every textbook as the amount of energy needed to cool or heat one pound of water by one degree Fahrenheit.
