Sand filters consist of a large tank, made of fiberglass, concrete or metal, containing a thick bed of special-grade sand, which has a squarish shape. During filtering operation, dirty water from the pool comes in through the filter’s inlet pipe, which leads to the water distribution head inside the tank.

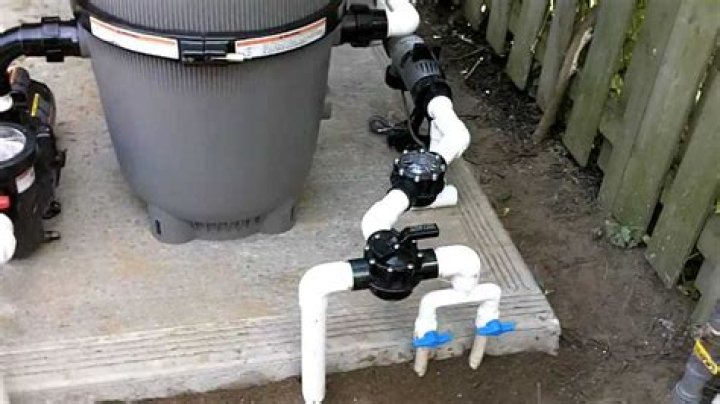

What is inside the pool filter?

Sand filters consist of a large tank, made of fiberglass, concrete or metal, containing a thick bed of special-grade sand, which has a squarish shape. During filtering operation, dirty water from the pool comes in through the filter’s inlet pipe, which leads to the water distribution head inside the tank.

Is pool filter sand toxic?

Rather than containing a whole host of minerals, as beach and play sands do, pool sand primarily consists of crushed silica quartz. The dust from this type of sand is a Class 1A carcinogen that can cause a fatal lung condition called silicosis. This is obviously not something in which you want your children to play.

What are pool filter cartridges made of?

Cartridge pool filters are most common in spas and smaller pools. According to Pool and Hot Tub Village, these have been around for a relatively long time in the pool industry, but recently, they’re becoming more popular. They’re made from spun polyester and placed inside a tank.

What are the components of a sand filter?

• Chamber: filter tank or filter box.
• Filter media (sand)
• Gravel support.
• Under drain system.
• Wash water troughs.

What sand is used in pool filter?

Silica pool filter sand is the most commonly used type. It’s inexpensive, easy to find, and can filter particles down to 20 microns, which is approximately 0.0008 inches. Silica sand is made with ground quartz, and it has rough edges to help trap particulates.

Is cartridge filter better than sand filter?

Cartridge Filter Cartridge filters can screen out twice as much dirt and debris as a sand filter. Its larger filtration area allows the water to progress through the cartridge removing smaller particles. Maintenance is much easier in that there is no need for a back-washing step.

Can I reuse the sand in my pool filter?

Pool filter sand should not be reused because the roughness of the particles that is used to catch unwanted bacteria, contaminates, and debris will be too worn down to be effective. Reused pool filter sand can result in severe contamination of your pool and is not worth the risk.

What does a sand filter do for a pool?

A sand filter is essentially a tank full of sand that’s connected to your pool’s filtration network. As pool water passes through the sand tank, the sand catches debris and particles and prevents them from returning to the pool.

What is pool sand made of?

Most play sand is made of quartz, also known as silica. The percentage of silica will depend on where the sand came from and how it has been treated. There are also play sands which are silica free, so they contain other minerals such as feldspar instead. Pool filter sand is exclusively made up of silica.

Article first time published on

Can a pool sand filter explode?

The filter operates under high pressure generated by a mixture of water and air. The lid can explode off the tank with tremendous force if too much pressure builds up and the clamp fails. Because of the extremely high pressure that can build in the filter and result in an explosion, a failure can be catastrophic.

What is activated carbon filter?

What are activated carbon air filters? Carbon air filters are the filters most commonly used to remove gases. They are designed to filter gases through a bed of activated carbon (also called activated charcoal) and are usually used to combat volatile organic compounds (VOCs) released from common household products.

Can you put chlorine in filter?

As the water filters through, it will disperse the chlorine and keep your water at the appropriate level between 1-3 ppm. This is true, as long as the filter is running, but most filters are only run 8-12 hours per day.

How do I know if I have a sand filter in my pool?

If you’ve noticed that the backwashing cycles have become shorter, then you should check to see if the sand filter is dirty or greasy. If the filter is dirty or greasy, then don’t be surprised if it takes on the appearance of sandy lard. When this happens, the water doesn’t flow through the sand filter media.

How long do pool filter balls last?

These tiny balls will last for years while filtering particles down to 3 microns. Filtra Balls have several benefits over using traditional silica sand. Eliminates the need to haul and dispose of hundreds of pounds of sand.

How often do pool filters need to be cleaned?

The answer to this question can vary depending on the type of filter, but generally, you should clean it once every six months. This should be sufficient as long as you are using the right kind of filter and there aren’t extenuating circumstances.

Do all pool filters have backwash?

Whether you choose to clean your pool with a sand or DE filter, you can easily backwash it on your own. All pool filters follow the same general steps for backwashing, but there may be small variations depending on the model you own. The owner’s manual should have detailed instructions for backwashing your filter.

What is pool filter backwash?

Well, as the name suggests, backwashing involves reversing the flow of water through your filter media, be it Zeoplus, sand, glass pearls or diatomaceous earth (DE). This dislodges dirt and debris that may have become trapped, and flushes it out through your multiport valve waste line.

What kind of pool filter is best?

• Sand filters are least effective but also the least expensive to buy and use.
• Cartridge filters are more effective but are more expensive to buy and use.
• DE filters are the most effective but are the most expensive to buy and use.

How much is a pool cartridge filter?

Filter typeAverage costFiltering capacityPocket$30-$10015 micronsCartridge$200-$1,60010-15 micronsSand$250-$1,20020-100 micronsGlass$500-$1,5009 microns

Do you need to backwash a cartridge filter?

Unlike other filtration systems, cartridge filters don’t require backwashing, which means homeowners don’t waste the water and extra energy involved in backwashing. The small size of cartridge filters allows them to be run on smaller pumps because they can run with a lower flow rate pump, which saves energy.

Do you use chlorine with a sand filter?

Here’s what to expect if you go with a sand pool filter: … Change the Sand Filter – About every seven years, you should change the sand in the filter. If you’re not using chlorine, you should do it more often, about every three to five years.

Is pool sand the same as masonry sand?

Different types of sand are used for installing an above ground pool and for sand filter systems, please read below to learn the difference. … The sand that lies underneath your pool is called “mason sand”, while the sand for your filter is simply called “filter sand” or “silica sand”.

How often should you change the sand in your pool filter?

On average, sand should be replaced every 3-5 years. This may be longer if the pool stays clear, or shorter, if the filter runs all the time. The jagged edges of the sand wear down and become smooth as the sand ages.

Is it OK to put chlorine tablets in the skimmer?

While a floater does not distribute chlorine as evenly as an in-line chlorinator, it is still a great form of swimming pool chlorination. Never put chlorine tablets into the skimmer baskets of your pool. … High levels of chlorine close to the pool pump, pool filter, and pool heater can damage the equipment.

Is a sand filter better for a pool?

Sand Filters are still great options, especially for larger residential and commercial pools with more powerful Pool Pumps. Unlike Cartridge Filters, Sand Filters need to be sized according to your pool pump. If your pool pump is over 1.5 HP, we typically recommend choosing a Cartridge Filter over a Sand Filter.

How many bags of sand do I need for a pool filter?

Filter SystemSand NeededPentair SD40 Sand Filter150 lbsAquaPro 19″ Sand Filter System150 lbs

Can you use masonry sand in a pool filter?

Masonry sand or Play sand won’t work in a pool filter, use only a high quality Pool Filter Sand. Pool Filter Sand, is specifically graded silicone quartz, . … 55 mm in size, otherwise known commercially as #20 silica sand. You will find it to be clearly labeled Pool Filter Sand.

Is pool sand the same as play sand?

Play sand and pool sand are not the same, however, and are not interchangeable. Pool sand is much finer and smaller than play sand, and the two types of sand are composed of different materials.

Can a pool filter electrocute you?

You can get electrocuted in an above ground pool if you make contact with an electrical current while you are in the pool or while you are wet. The source of the electricity could be lighting, pumps, filters, vacuums or appliances such as radios, CD player or extension cords.

Why does my pool filter keep filling with air?

What are the most common reasons for pool air bubbles? … The pool water level is too low. The strainer pot lid isn’t on tight or its O-ring is loose/absent/compromised. The union between the valves and the pump isn’t tight or its O-ring is loose/absent/compromised.
