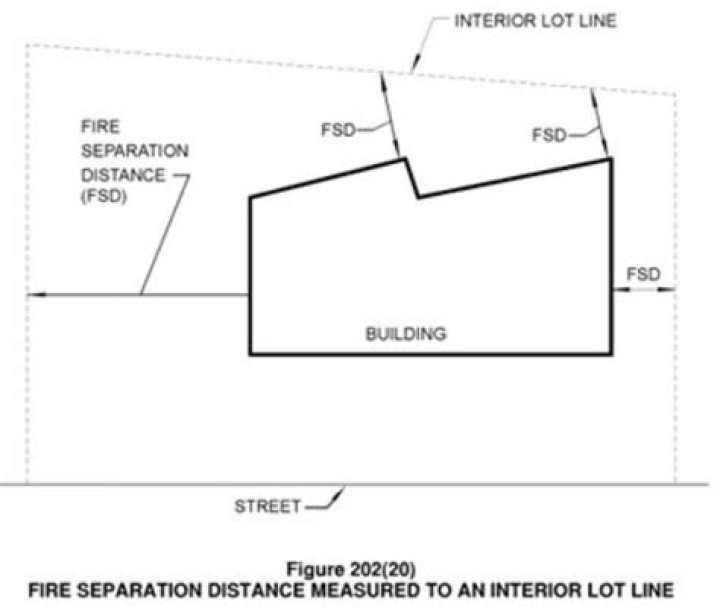

The “fire separation distance” is defined in Section 202 as the distance measured from the building face to the closest interior lot line, to the centerline of a street, alley or public way, or to an assumed imaginary line between two buildings on the same lot.

What is minimum fire separation distance?

CBC Section 602.1 and Table 602 (footnote f) requires that the exterior walls for single family dwellings and accessory to Group R-3 shall have a fire separation distance of at least 5 feet unless constructed of 1 hour fire-rated construction.

Does an exterior wall need to be fire rated?

Exterior walls generally have a rating based solely on interior occupancy use and structural requirements. However, exterior walls that are 10 feet or less from the property line are required to have a fire resistance rating based on the proximity to adjacent buildings and interior occupancy conditions.

What is the minimum distance between buildings?

1. Distance Between Main Buildings. A minimum distance of ten (10) feet shall be required between all main residential buildings established on the same lot or parcel of land.

What is the title of Chapter 6 in the 2012 IBC?

Chapter 6 Types of Construction.

What does fire separation mean?

In contrast, what is required in residential construction is usually a continuous fire separation, which is made of fire rated sheetrock that is mudded and tapped and an approved and rated fire door. This shows a masonry firewall running through the roof to divide between adjoining units.

What is fire separation?

A fire separation is defined as “a construcfion assembly that acts as a barrier against the spread of fire.” … Fire separations such as floor assemblies and interior wall assemblies that have a required fire-resistance rating are therefore basic elements of fire compartmentation.

How close can I build to my Neighbour's boundary?

Single story extensions to the side of your property to be no more than four meters in height and no wider than half the original size of the property. For those building a double extension on their property, you cannot go closer than seven meters to the boundary.

What is the space between two buildings called?

alley. noun. a narrow street or passage between or behind buildings.

Why gaps are left between buildings during construction?

Answer: Gaps are left between buildings during construction to reduce the risk of fire. … Discovery of fire has helped the early man to cope with nature. It also helped them adopt a settle mode of life.

Article first time published on

Can I have a window in a fire wall?

Penetrations (holes) must not defeat the structural integrity of the wall, such that the wall cannot withstand the prescribed fire duration without threat of collapse. Openings – Other openings in Fire walls, such as doors and windows, must also be fire-rated fire door assemblies and fire window assemblies.

Are exterior walls Fire walls?

Exterior walls shall be fire-resistance rated in accordance with Tables 601 and 602 and this section. … The required fire-resistance rating of exterior walls with a fire separation distance of less than or equal to 10 feet (3048 mm) shall be rated for exposure to fire from both sides.

Can you put a window in a fire wall?

Under the 2012, 2009 and 2006 IBC, fire protective glazing is not allowed in the sidelites, transoms and openings surrounding the 60 minute door, whether the building is fully sprinklered or not. The glazing must be fire resistive and rated equal to the wall.

What is the difference between Type A and B construction?

The main difference between the Type I-A and B is that the Type I-B building has exterior walls and a structural frame that only has to resist fire for two hours, rather than the three hours of the Type I-A.

What is allowable area?

Building Codes (IBC) sets limits of building areas, heights, and stories based on how fire restive the building is. Why It Matters.

What can be found in Chapter 6 of the building Code?

• CHAPTER 6.
• FIRE-RESISTIVE REQUIREMENTS IN CONSTRUCTION.
• SECTION 601. Fire-Resistive Rating defined.
• SECTION 602. Fire-Resistive Time Period Rating.
• SECTION 603. Fire-Resistive Standards.
• SECTION 604. Fire-Resistive Regulations.

What is the difference between a firewall and a fire separation?

So what is the difference between firewalls and fire barriers? Basically, firewalls are thick exterior walls with a higher fire-resistance rating, while fire barriers are interior walls with a lower fire-resistance rating.

Why is fire separation important?

Sometimes, despite your best efforts, fires can’t be prevented, but by taking the correct action beforehand, the spread of fire can be limited. Through effective fire separation or ‘passive protection’, property damage and business interruption exposure may be reduced, in addition to potentially saving people’s lives.

What is fire separation wall?

A firewall is a special type of fire separation assembly commonly constructed of non-combustible materials that subdivides a building or separates adjoining buildings. … The intent is that even in a severe fire, causing part of a building to collapse, a firewall will remain standing to prevent the spread of the fire.

How do you calculate fire area?

California law requires CAL FIRE to identify areas based on the severity of fire hazard that is expected to prevail there. These areas, or “zones,” are based on factors such as fuel, slope and fire weather. There are three zones, based on increasing fire hazard: medium, high and very high.

What is a fire area?

FIRE AREA. The aggregate floor area enclosed and bounded by fire walls, fire barriers, exterior walls or fire- resistance-rated horizontal assemblies of a building.

What is a separated occupancy?

Buildings that contain multiple occupancies must either be considered non-separated or separated. … Separated occupancies, as defined in IBC Section 508.4, require different occupancies to be separated using rated walls (fire barriers per IBC Section 707) and floors/ceilings (horizontal assemblies per IBC Section 711).

What is a walkway between to buildings?

A skyway, skybridge, or skywalk is an elevated type of pedway connecting two or more buildings in an urban area, or connecting elevated points within mountainous recreational zones.

What is an alleyway between two houses called?

In different parts of the country, people call. them: entries, ginnels, backways, snickets, passages, paths and walks, among. other names. Many gates were taken out of alleys in the.

How close to a property line can I build?

The exact amount a building needs to be set back from the property line will vary from one location to another. However, the required setback on the side is typically between 5 – 10 feet, while the front and back require around 10 – 20 feet at a minimum.

What is the 7 year boundary rule?

The Seven Year Rule So for example, if you complain to the local planning authority about your neighbour doing something on their land that you don’t like, if they’ve been doing it for seven years or more you might not have any luck stopping it.

Can you build up to boundary line?

Yes. The Party Wall Act permits you to build up to or astride the line of junction/boundary with your neighbour, but the correct notices must be served and the correct process followed. … Without a neighbour’s agreement, there is no right to build a wall over the boundary line.

Why is there a gap between walls?

Gaps between your walls are often caused by a home’s foundation settling into poorly compacted, moisture-softened, or shrunken soils below the structure. … The structural instability that can cause these gaps to occur is something you should be concerned about as it is not likely to go away on its own.

Why do we provide open space around a building?

Open space provides recreational areas for residents and helps to enhance the beauty and environmental quality of neighborhoods.

Why do the engineers leave a small space between the long concrete building?

A gap is left between two sections of bridge because to allow thermal expansion during summer so that it will not damage the bridge.

What is the FRL requirement of that separating wall?

SEPARATING WALL REQUIREMENTS Must have walls with a Fire Resistance Level (FRL) of not less than 60/60/60.
