SL and TL fuses are medium-duty time-delay fuses and are now the most commonly used plug fuses found in home electrical systems. … This allows the fuse to absorb a temporary circuit overload, such as that caused by a brief surge in power demand when a motor starts up.

What does SL stand for on a fuse?

Type TL: Medium-duty time delay, Edison base. Type SL: Medium-duty time delay, rejection base. Glass and Ceramic Fuses. Glass and ceramic tube fuses are available in both fast-acting and time-delay versions and are commonly found in household appliances and electronics.

What are the 3 types of fuses?

• DC Fuses.
• AC Fuses.
• Cartridge Fuses.
• D – Type Cartridge Fuse.
• HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
• High Voltage Fuses.
• Automotive, Blade Type & Bolted Type Fuses.
• SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.

What is the difference between SL and S fuses?

Type-TL and SL fuses are considered to be regular duty fuses. Type T and Type-S are heavy duty fuses for high inrush current applications and typically use a dual-element design. From a technical sense, plug fuse and circuit breakers are both capable of performing equivalent overcurrent protection.

What is an S type fuse?

Type S fuses are also called tamper proof fuses because each fuse size has a different base and thread size. These fuses also require the use of a special adapter which is screwed into the standard Edison base of the fuse holder. … The adapters have amperage ratings the same as the fuses which go in them.

What is a Type P fuse?

Standard non-time delay fuses are for receptacle and lighting circuits. … For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements.

Can I replace a fast acting fuse with a time delay fuse?

The fast acting ones cannot take the place of the time delay models, though. Their fuse wire will melt because of the initial excess supply of electricity. However, replacing the fast acting fuses with the time delay versions will not be cost-effective because the latter is more expensive.

What is the advantage of the Type S fuse?

Special fuses, called Type S, will prevent accidental replacement with fuses of a higher rating. In homes with fuse boxes instead of circuit breaker panels, the fuses used for stoves and other appliances, and those supplying power to the whole house, will usually be of the cartridge type, rather than the screw-in type.

Can I replace a 15 amp fuse with a 20 amp fuse?

It would not be a good idea to replace a 15 amp fuse with a 20 amp fuse. If you do and you actually load to circuit to more than 15 amps, you will shorten the life of the insulation and increase the risk of a fire.

Can I replace a 20 amp fuse with a 30 amp fuse?

If you put a 20 Amp fues in a 30 Amp circuit, it will blow before you know it. Replacing a 20-amp fuse with one rated at 30 Amp is dangerous because it may not blow soon enough and damage an electrical component or start a fire.

Article first time published on

Are SL and TL fuses interchangeable?

The two are not interchangeable. Two categories of plug fuses are available. The medium duty fuses (TL or SL) have a time delay feature for use on motor circuits. … The T or S fuses have more time delay than the medium duty fuses in order to better protect motors and critical residential circuits.

What is a Class K fuse?

Class K fuses. These non-renewable fuses are available in 250VAC and 600VAC ratings, with current ratings from 0A to 600A. Class K fuses are available with DC ratings. The interrupting ratings may be 50kA, 100kA, or 200kA rms symmetrical. Class K-1 fuses provide the best degree of current limitation.

What is DC fuses?

DC Fuse. The DC fuse opens or breaks the circuit when the excessive current flow through it. The only difficulty with the DC fuse is that the arc produced by the direct current is very difficult to extinct because there are no zero current flows in the circuit.

What is a Class G fuse?

A UL Class G fuse is a 600/480 volts AC current limiting, fuse that is rated to interrupt a minimum of 100,000 amps. Ampere ratings range from ½ amp to 60 amps. The type G fuse meets the NEC, requirements for branch circuit, protection. … The type G fuse is listed under UL 248-5, Class G and CSA Certified,.

What is class T fuse?

A Class T fuse is a fast acting, current limiting, fuse that is rated to interrupt a minimum of 200,000 amps. The Type T Fuse is offered in 300 volt AC and 600 volt AC versions. Type T Fuse ampere ratings range from1 to 800 amps.

Do time delay fuses go bad?

Fuses degrade with time and will eventually fail. A blown fuse does not always mean that there is something wrong with the equipment, and in this article we will show you how to replace such a fuse. However, do not keep replacing a fuse if it blows immediately after you replace it.

Are screw in fuses legal?

But the National Electrical Code (NEC) has safety standards for old screw-in type (Edison) fuse panels that are still in use. … Edison-type fuse bases are not allowed for 240-volt circuits. [240.51(A)] Type-S fuse adapters screw into place over an existing Edison-type base, and only allow a particular fuse rating.

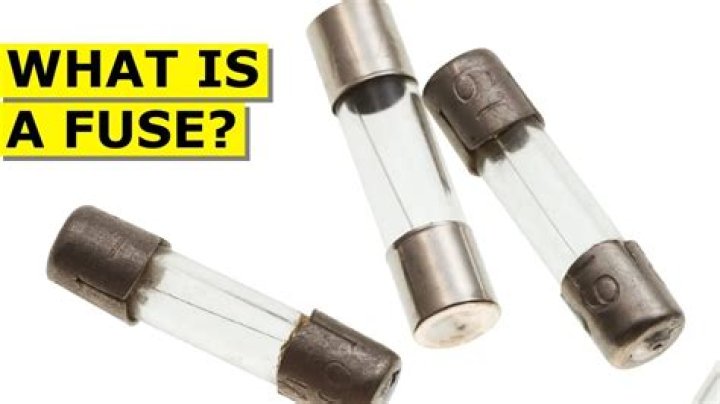

Can I replace a glass fuse with ceramic?

You can replace a glass fuse with ceramic, but not recommended to replace a ceramic with glass. Be sure they are the same voltage and amp rating, slo-blow, etc. As a general rule you should not make this substitution.

What is Type C breaker?

Type C circuit breakers are used for more powerful electrical devices where any surges are likely to be higher – typically commercial and industrial environments. They are designed to trip at currents between five and ten times their rated load. Good examples include smaller electric motors and fluorescent lighting.

What do letters on fuses mean?

The number and the A (may be mA) is the amp rating of the fuse. The L denotes that it is a low breaking capacity or glass fuse (H is High breaking capacity and is usually a ceramic package). … Taking the example above a T2AL250V fuse is a 2 Amp, Time Delay glass fuse rated for 250 Volts.

What is a 15 amp fuse used for?

A 15-amp screw-in fuse is typically used for household lighting and receptacle circuits wired with 14-gauge wire. A 20-amp screw-in fuse is generally used for outlet and appliance circuits wired with 12-gauge wire.

Is it OK to use a higher amp fuse?

Do not replace a blown fuse with one that has a higher amperage rating. The fuse has a specific amperage rating because it is intended to be the weak link in the circuit to protect the electrical components.

What happens if you put a higher amp fuse?

If you use a fuse with the wrong amperage, the fuse won’t blow as intended, damaging the circuit and resulting in a much larger repair bill. Rather than risk blowing the circuit, take the car to a repair shop to determine what is causing the fuse to repeatedly blow.

Can I put a 30A fuse in a 20A?

Replacing a 20 amp fuse with a 30 amp fuse could cause wire conductors to overheat and catch fire if a load (or total electrical loads) greater than 20 amps are placed in that circuit. The wire conductors are able to safely handle the designed 20 amp loads but exceeding that limit is asking for trouble.

Why is fuse not used in neutral wire?

Because the fuse can disconnect the circuit only when the excess current flows completely through the neutral. … Since, neutral is not a live conductor coming from the source, disconnecting a neutral line can only open the current path through neutral. But, the live phase still carries the charge.

What is Rewirable fuse?

Rewireable Fuses are the fuse carriers that contain a length of fuse wire, which is wrapped around the terminals, covering the space between carriers and pins, to complete the circuit. It is used in interrupting the circuit in conditions like over-current or short-circuits.

What types of fuses are used in houses?

• Use a 5amp fuse or 6amp MCB for lighting circuits.
• Use a 15amp fuse or 16amp MCB for immersion and storage heater circuits.
• Use a 20amp fuse or MCB for small radial circuits up to 20m²

Why do I keep blowing a fuse?

When a circuit breaker regularly trips or a fuse repeatedly blows, it is a sign that you are making excessive demands on the circuit and need to move some appliances and devices to other circuits. Or, it may indicate that your house has too few circuits and is in need of a service upgrade.

Can I use 40 amp fuse instead of 30?

It is in no way safe to replace the 30A fuse with a 40A fuse for longer periods of time. Be safe, call an electrician.

What happens if I replace a 20 amp breaker with a 30 amp breaker?

If you replace it with a 30 amp breaker (which usually has thicker 10 gauge wire attached to it) then that could become very dangerous, if too much amperage flows through the wires, the wires could majorly overheat and cause a fire.

What are the differences between SL and TL?

SL (the source language) is the language being translated from and TL (the target language) is the language being translated to.
