Full-voltage starters, also referred to as across-the-line starters or direct-on-line (DOL) starters, are full-voltage non-reversing (FVNR) and connect the motor to a power line. Manual starters are limited to single-phase motors through about 5 HP at 320 VAC and three-phase

What does across the line starter mean?

A direct on line (DOL) or across the line starter applies the full line voltage to the motor terminals. This is the simplest type of motor starter. A DOL motor starter often contains protection devices (see below), and in some cases, condition monitoring.

What is an across the line contactor?

A-Line contactors are mainly used for controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDC. ABB’s AFS series safety contactors are specifically designed for machine safety applications. …

What are the types of starter?

• Direct-On-Line Starter. The direct-on-line starter is the simplest form of motor starter, other than a manual starter. …
• Rotor Resistance Starter. …
• Stator Resistance Starter. …
• Auto Transformer Starter. …
• Star Delta Starter.

How many types of starters are there?

The two main types of starters are Manual Starters and AC Magnetic Motor Starters, commonly known as Motor Starters.

What is a wye delta starter?

Definition: A Wye-Delta starter (also known as Start Delta) is one of the most commonly used methods for the starting of a three phase induction motor. … Once the motor has reached approximately 80% speed the motor is then connected in a delta configuration.

How is across the line starting accomplished?

The simplest method of starting a motor is the across the line starting and is accomplished by connecting the motor to the power line directly. The across the line starting method is suitable for both AC and DC motors.

What is 2point starter?

In case of series motors, field and armature are inserted and hence starting resistance is inserted in series with the field and armature. Such a starter used to limit the star4ting current in case of dc series motor is called two point starters. … It limits the starting current.

What are the 4 types of starters?

• Stator resistance starter.
• Star delta starter.
• Autotransformer starting.
• Rotor resistance starters.
• Variable stator frequency starting.

What is dual starter?

The DOL starter consists of two switches namely Green and Red where the green switch is used to start and red switch is used to stop the motor. The DOL starter comprises a circuit breaker (or) MCCB, overload relay & contactor for protecting the motor. The two switches of the motor control the contacts.

Article first time published on

What is across the line control?

Across-the-Line combination controllers are complete motor control packages used in applications requiring a disconnecting means, starting circuitry, and motor overload protection.

What is the difference between a contactor and a relay?

A contactor joins 2 poles together, without a common circuit between them, while a relay has a common contact that connects to a neutral position. Additionally, contactors are commonly rated for up to 1000V, while relays are usually rated to only 250V.

What is auxiliary contactor?

Basically, an auxiliary contactor is a regular (low-power) relay – but built like a “regular” contactor and when used together with another contactor it is called auxiliary contactor to clarify that it is not used for switching loads but has an activation/deactivation or control function instead – used to connect/ …

What are four components found in the power circuit of an across the line magnetic starter circuit?

A 3-pole full-voltage magnetic motor starter is made up of the following components: a set of stationary contacts, a set of movable contacts, pressure springs, a solenoid coil, a stationary electromagnet, a set of magnetic shading coils, and the moving armature.

What is a electrical starter?

What is a starter? Starters are devices that control the use of electrical power to equipment. As the name implies, starters “start” motors. They can also stop, reverse, accelerate and protect them. Starters are made from two building blocks: contactors and overloads.

What is a reversing starter?

The Reversing Starter is a special type of push button starter wherein addition to starting/ stopping of motors the director of rotation of a three phase induction motor can be done by inter changing the connection of any two terminals of the supplies which is done through two separate contactors, one for forward and …

What is the difference between jogging and inching?

Jogging refers to repeated starting and stopping of a motor in short bursts to perform a particular movement such as moving a crane to a particular location. … Inching involves short thrusts of motion at reduced power. The motor is made to run at a reduced voltage.

How is dynamic braking for direct current motors accomplished?

How is dynamic braking for direct current motors accomplished? Dynamic braking for DC is accomplish by permitting power to remain connected top the shunt field when the moto is stopped, and reconnecting the armature current. … The braking force can be controlled by the amount of direct current supplied to the stator.

What is the difference between a soft starter and VFD?

The main difference between the two is that a VFD can vary the speed of a motor while a soft starter only controls the starting and stopping of that motor. When faced with an application, price and size are in the favor of a soft starter.

Which is better Wye or Delta?

An advantage of the Delta connection is higher reliability. If one of the three primary windings fails, the secondary will still produce full voltage on all three phases. … An advantage of the Wye connection is that it can provide multiple voltages without the need for additional transformers.

What's the difference between Delta and Wye?

Delta systems have four wires total: three hot wires and one ground wire. Wye systems utilize a star configuration, with all three hot wires connected at a single neutral point. … Wye systems, both measure 208VAC between any two hot wires, but 3-phase Wye systems also measure 120VAC between any hot wire and neutral wire.

Why small motors are star connected?

In the high voltage motor, the current is often small, and the insulation grade of the motor is required to be higher, so the insulation of the motor with star connection is better and more economical.

Which starter is used for up to 5 HP?

Star-Delta Starter A star-delta starter is used with a squirrel cage induction motor having a capacity up to 5HP. It is operated by a handle.

What is a full voltage starter?

Full-voltage starters, also referred to as across-the-line starters or direct-on-line (DOL) starters, are full-voltage non-reversing (FVNR) and connect the motor to a power line. Manual starters are limited to single-phase motors through about 5 HP at 320 VAC and three-phase through 10 HP at 460 and 575 VAC.

Do all motors need starters?

The need for a starter is dictated by the type of motor. Generally speaking, low-power motors do not require starters, although what’s considered low power may be debatable. For instance, small dc motors that run on low voltages (24 V or less) don’t require starters.

What is 4point starter?

A 4 point starter is used to start and control the speed of a Dc shunt motor with field weakening control. … The four-point starter works as a current controlling device in the deficiency of back EMF while it starts running off the DC motor. A four-point starter also works as a protecting device.

What is 3point starter?

A 3 point starter is a device that helps in the starting and running of a DC shunt motor or compound wound DC motor (similar to a 4 point starter). … The back emf develops as the motor armature starts to rotate in presence of the magnetic field, by generating action and counters the supply voltage.

What is a DC motor starter?

Starters are used to protect DC motors from damage that can be caused by very high current and torque during startup. They do this by providing external resistance to the motor, which is connected in series to the motor’s armature winding and restricts the current to an acceptable level.

Does a motor run faster in Star or Delta?

The speeds of Star connected motors are slow as they receive 1/√3 voltage. The speeds of Delta connected motors are high because each phase gets the total of line voltage. In Star Connection, Smooth starting and operation with nominal power, normal operation without overheating can be achieved.

What is the difference between Star Delta and DOL starter?

During a DOL start, the starting torque is very high and is usually higher than required for most applications. The starting torque of a star delta starter is reduced to about 30% of the torque available at a DOL start. Star delta method only works when the application is lightly loaded during the start.

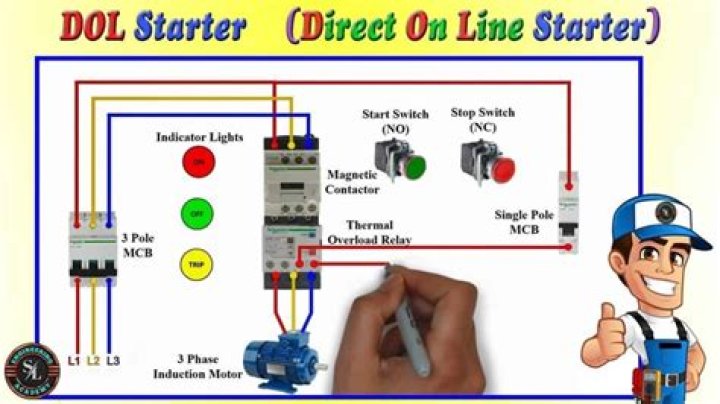

How does a direct on line starter work?

Principle of Direct On Line Starter (DOL) To start, the contactor is closed, applying full line voltage to the motor windings. The motor will draw a very high inrush current for a very short time, the magnetic field in the iron, and then the current will be limited to the Locked Rotor Current of the motor.
