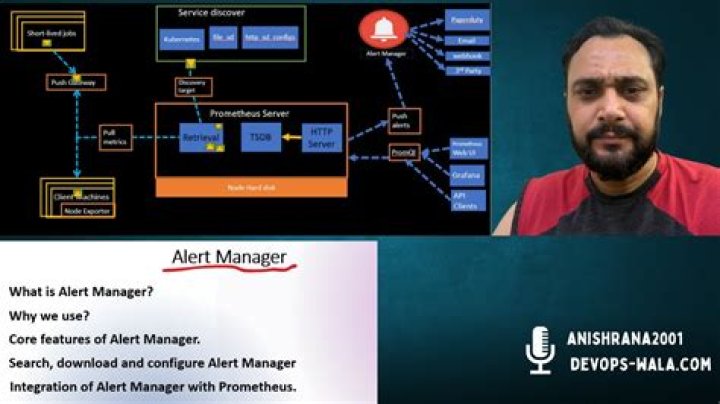

The Alertmanager handles alerts sent by client applications such as the Prometheus server. It takes care of deduplicating, grouping, and routing them to the correct receiver integration such as email, PagerDuty, or OpsGenie. It also takes care of silencing and inhibition of alerts.

Where are Alertmanager alerts?

The storage is mandatory (it defaults to “data/”) and is used to store Alertmanager’s notification states and silences. It is not currently used for storing alerts themselves (those are continuously being resent by Prometheus servers anyways, as long as they are still firing).

What is Cortex Alertmanager?

The Cortex Alertmanager at its current state supports high-availability by using the same technique as the upstream Prometheus Alertmanager: we gossip silences and notifications between replicas to achieve eventual consistency. This allows us to tolerate machine failure without interruption of service.

How do I run Alertmanager?

1. Step 1: Download alertmanager. $ wget
2. Step 2: Extract tar. $ tar -xvzf alertmanager-0.19.0.linux-amd64.tar.gz.
3. Step 3: Folder structure. …
4. Step 4: Run alertmanager. …
5. Step 5: Run alertmanager as service.

What is Prometheus rule?

Configuring rules Prometheus supports two types of rules which may be configured and then evaluated at regular intervals: recording rules and alerting rules. … The rule files can be reloaded at runtime by sending SIGHUP to the Prometheus process. The changes are only applied if all rule files are well-formatted.

How do I silence my AlertManager?

To mute those alerts to prevent them to be sent over and over they can be disabled by marking them as “silenced”. An alert can be silenced with the Web UI of the Alertmanager, see the documentation.

What is AlertManager in Prometheus?

The Alertmanager handles alerts sent by client applications such as the Prometheus server. It takes care of deduplicating, grouping, and routing them to the correct receiver integration such as email, PagerDuty, or OpsGenie. It also takes care of silencing and inhibition of alerts.

How does Prometheus connect to Alertmanager?

1. Setup and configure AlertManager.
2. Configure the config file on Prometheus so it can talk to the AlertManager.
3. Define alert rules in Prometheus server configuration.
4. Define alert mechanism in AlertManager to send alerts via Slack and Mail.

How do I start Prometheus Alertmanager?

1. Edit the Prometheus config: sudo vi /etc/prometheus/prometheus.yml.
2. Under alerting , add your Alertmanager as a target: alerting: alertmanagers: – static_configs: – targets: [“localhost:9093”]
3. Restart Prometheus to reload the configuration: sudo systemctl restart prometheus.

What are the ways of Visualising that Prometheus supports?

When it comes to dashboards or visualizations with Prometheus, there are three options: Prometheus Expression Browser, Grafana, and Prometheus Console Templates.

Article first time published on

What is Cortex github?

Cortex: horizontally scalable, highly available, multi-tenant, long term storage for Prometheus. Cortex provides horizontally scalable, highly available, multi-tenant, long term storage for Prometheus. … Highly available: When run in a cluster, Cortex can replicate data between machines.

What is Cortex Grafana?

Cortex lets users to query metrics from many Prometheus servers in a single place, without any gaps in the graphs due to server failure. … Grafana Labs uses Cortex to power our Prometheus backend for Grafana Cloud.

What is Cortex architecture?

Cortex consists of multiple horizontally scalable microservices. Each microservice uses the most appropriate technique for horizontal scaling; most are stateless and can handle requests for any users while some (namely the ingesters) are semi-stateful and depend on consistent hashing.

How does Prometheus define alerts?

Setting up alerts with Prometheus is a two-step process: First, you need to create your alerting rules in Prometheus, and specify under what conditions you want to be alerted (such as when an instance is down). Second, you need to set up Alertmanager, which receives the alerts specified in Prometheus.

What is Thanos ruler?

The thanos rule command evaluates Prometheus recording and alerting rules against chosen query API via repeated –query (or FileSD via –query.sd ).

What are the types of metrics in Prometheus?

Prometheus has four primary metric types to query for via PromQL: counters, gauges, histograms, and summaries.

How do I reload AlertManager?

Alertmanager can reload its configuration at runtime. If the new configuration is not well-formed, the changes will not be applied and an error is logged. A configuration reload is triggered by sending a SIGHUP to the process or sending a HTTP POST request to the /-/reload endpoint.

What is resolve timeout in AlertManager?

ResolveTimeout is the time after which an alert is declared resolved if it has not been updated.

What is Thanos software?

Thanos is a metric system that provides a simple and cost-effective way to centralize and scale Prometheus based systems. The project was created at Improbable to enable reliable monitoring on a global scale.

What is Prometheus open source?

Prometheus is an open-source systems monitoring and alerting toolkit originally built at SoundCloud. Since its inception in 2012, many companies and organizations have adopted Prometheus, and the project has a very active developer and user community.

What is Prometheus Pushgateway?

The Prometheus Pushgateway allows you to push time series from short-lived service-level batch jobs to an intermediary job which Prometheus can scrape. Combined with Prometheus’s simple text-based exposition format, this makes it easy to instrument even shell scripts without a client library.

Why is Prometheus?

Prometheus can scrape metrics from jobs directly or, for short-lived jobs by using a push gateway when the job exits. The scraped samples are stored locally and rules are applied to the data to aggregate and generate new time series from existing data or generate alerts based on user-defined triggers.

How does slack integrate with AlertManager?

To set up alerting in your Slack workspace, you are going to need a Slack API URL. Go to Slack -> Administration -> Manage apps. In the Manage apps directory, search for Incoming WebHooks and add it to your Slack workspace. Next, specify in which channel you’d like to receive notifications from Alertmanager.

How do you integrate PagerDuty with Prometheus?

Give the receiver a name , such as “PagerDuty-Global-Event–Rules” or the name of the Service you’re integrating with. Next, paste the PagerDuty Integration Key (generated in the In PagerDuty section, above) in the service_key field, then save your configuration file.

What is Prometheus Webhook?

Prometheus notifies the Alertmanager whenever an alarm meets the rule conditions. Alertmanager decides to which webhook receiver it sends the alarm depending on its routes. Alert manager sends the notification to the configured receivers, i.e. email and webhook receivers.

How do you make Prometheus alert rules?

1. Step 1 – Configure Alert Rule. …
2. Step 2 – AlertManager Config File. …
3. Step 3 – Update prometheus.yml file to configure Prometheus server to talk with AlertManager Service. …
4. Step 4 – Update docker-compose.yml File. …
5. Step 5 – Run the container.

How do you integrate Grafana with PagerDuty?

1. Login to grafana.
2. Click to the left Bell icon.
3. Add notification channel.
4. Select PagerDuty and the options you prefer.
5. Choose a name for the channel and paste your Integration Key in the field.
6. Click on Send Test.

What is the difference between Prometheus and Grafana?

Grafana and Prometheus, both help us in tackling issues related to complex data in a simplified manner. Grafana is an open-source visualization software, which helps the users to understand the complex data with the help of data metrics. … Prometheus is an open-source event monitoring and alerting tool.

How do you integrate Grafana with Prometheus monitoring?

1. Click the Grafana logo to open the sidebar.
2. Click “Data Sources” in the sidebar.
3. Choose “Add New”.
4. Select “Prometheus” as the data source.
5. Click “Add” to test the connection and to save the new data source.

How can I see Prometheus metrics in Grafana?

1. Add a new dashboard.
2. Add a graph.
3. Click its title to edit.
4. Click the Metric tab.

What is cortex and Prometheus?

Created by Weaveworks, Cortex is an open source timeseries database and monitoring system for applications and microservices. Based on Prometheus, Cortex adds horizontal scaling and virtually indefinite data retention.
