What is a water hammer and when does it occur?

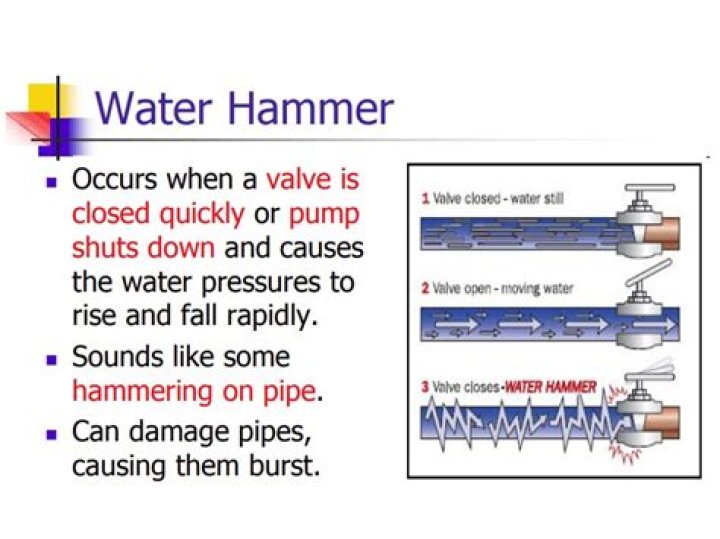

Water hammer is a phenomenon that can occur in any piping system where valves are used to control the flow of liquids or steam. Water hammer is the result of a pressure surge, or high-pressure shockwave that propagates through a piping system when a fluid in motion is forced to change direction or stop abruptly.

In which of the following component water hammer occur?

Water hammer is the result of a rapid rise in pressure occurring in a closed piping system. It normally occurs as a result of sudden pump startup, stopping (or failing) or in the change in speed of a pump or the sudden opening or closing of a valve resulting in a change in water velocity in the system.

What are the causes of water hammer?

Water hammer is usually caused in high pressure (e.g. mains pressure) water systems either when a tap is turned off quickly, or by fast-acting solenoid valves, which suddenly stop the water moving through the pipes and sets up a shock wave through the water, causing the pipes to vibrate and ‘shudder’.

What prevents water hammer?

The most important way to prevent water hammer is to remove the water from the steam lines before passing the steam again through them. Water is removed from the steam lines using drain connections. All the water should be drained out to make the lines clear.

How do you calculate water hammer?

Calculating the hammer Pwh = (0.07)(10)(500) + (80) = 123.75 psi. The water hammer increased pressure by 44 psi. Now let’s repeat this with a rapid closing valve (0.5 seconds). Pwh = (0.07)(10)(500) + (80) = 780 psi.

How to get rid of water hammer noise?

To fix the issue, homeowners need to drain their plumbing system: Shut off the main water valve, open the highest faucet in your home, and drain water from the lowest faucet (usually in the basement or first floor). The air chamber will fill back up with air instead of water, hopefully solving the water hammer problem.

What causes a water hammer on a pump?

Water hammer can occur when an open valve suddenly closes, causing the water to slam into it, or when a pump suddenly shuts down and the flow reverses direction back to the pump. Since water is incompressible, the impact of the water results in a shock wave that propagates at the speed of sound between the valve and the next elbow in …

What happens if you ignore the water hammer?

Ignoring water hammer can ultimately result in the catastrophic failure of your flow system. The long-term effects of water hammer can include:

How can you tell if you have water hammer?

Presence of water hammer can be easily detected by the noise it makes. Noise is not the final effect of water hammer but just an indication of it. Water hammer has multiple adverse effects on steam systems. Water hammer can damage equipments like flow meters which are installed on the steam network.

Can a fast closing valve cause water hammer?

On a closed system, such as a fire sprinkler main, a fast-closing valve poses serious water hammer issues. At least once a year fire sprinkler systems must be tested, which means closing and opening the system. If a ball valve was used there is a chance turning the handle too quickly would cause water hammer and damage the system.

How do you eliminate water hammer?

Using Water Hammer Arrestors. Usually, the best long-term solution for eliminating water hammer is to install a water hammer arrestor on each water supply line that makes noise. A water hammer arrestor works much like an old-style air chamber, but it includes an air- or gas-filled chamber that is sealed by a diaphragm or piston.

What are the damages caused by water hammering?

The effect of water hammer cannot be underestimated, as its forces have been documented to be capable of the following results: Rupturing pipe fittings Causing valve failures Causing heat exchanger equipment failures Breaking pipe welds and even rupturing piping systems Causing the failure of pipe supports and guides Bending internal system mechanisms Flange failures Overstressing pressure gauges Cracking steam trap bodies.

How ‘water hammer’ can damage your plumbing?

A sign of a water hammer problem is a loud banging which can sometimes repeat itself or a noticeable vibration on the pipes. This causes a lot of stress on a plumbing system and can literally blow apart pipes. This typically happens at an elbow or an offset when the rushing water hits an obstruction or a turn in the plumbing system.

How to avert water hammer?

Preventing Water Hammer from Damaging Pumps and Pipes Remove the cause of the hammer. Some causes can be resolved by arranging for the elimination or control of the problem item. Reduce the pumping velocity. This can be done using a larger pipe diameter or lower flowrate. Make the pipe stronger. Slow down valves, or use ones with better discharge characteristics in the pipe system.
