A try square or try-square is a woodworking tool used for marking and checking 90° angles on pieces of wood. Though woodworkers use many different types of square, the try square is considered one of the essential tools for woodworking.

What is the purpose of a tri Square?

A try square or try-square is a woodworking tool used for marking and checking 90° angles on pieces of wood. Though woodworkers use many different types of square, the try square is considered one of the essential tools for woodworking.

When was the tri square invented?

It is dated November 5, 1867. Its medium is steel, brass.

What is difference between Tri Square and Mitre Square?

A try square is used for checking right angles (90°) and a mitre square is for 45° angles (135° angles are also found on mitre squares because they are created by the 45° intercept). … These are different to combination squares which look similar and also measure 90°and 45° angles.

What should be done on Tri square?

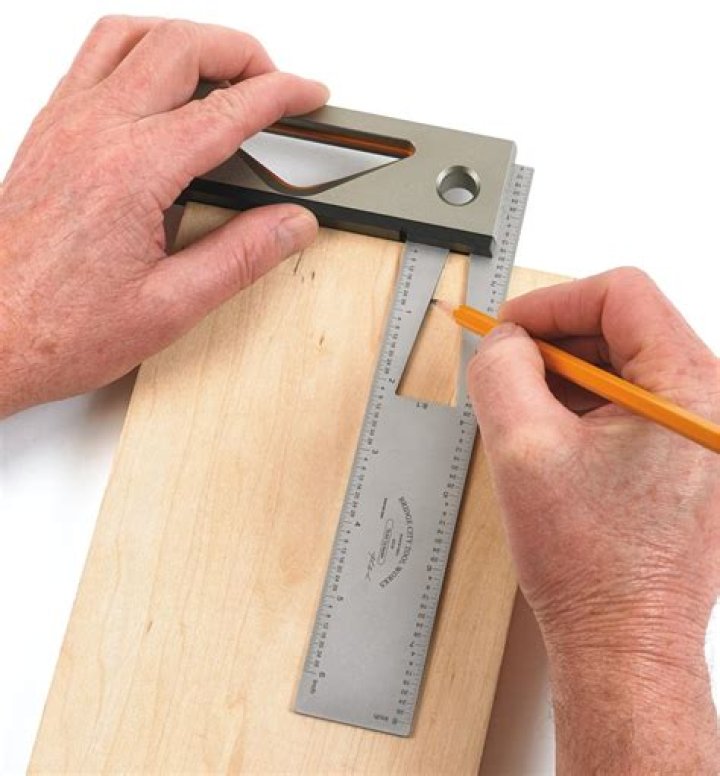

Place the try square blade across the material you want to test or mark. The thicker part of the handle should extend over the edge of the surface, allowing the blade to lie flat across the surface. Hold the handle against the edge of the material. The blade is now positioned at a 90° angle compared to the edge.

How can you tell if something is square?

Use a tape measure to measure the distance from one corner to the corner in the diagonal and write down the measurement. Take the tape measure to repeat the process for the remaining two corners and write down the measurement. If the measurements match, you have a perfect square.

How do you know if a square is real?

Draw a line along the edge of the long side of the square. Then flip the tool over, aligning the base of the mark with the same edge of the square; draw another line. If the two marks don’t align, your square is not square. When buying a square, it’s a good idea to check its accuracy before leaving the store.

What is the need of Mitre square and Bevel square?

As with 90° squares, there are many different types of miter square. Miter squares are usually made from two fixed parts, a stock and a blade (sometimes called a tongue). The blade on a modern factory-made miter square is typically a thin piece of metal which is fixed at 45° onto or into the stock, forming a ‘T’ shape.

Why is a marking knife used?

A marking knife or striking knife is a woodworking layout tool used for accurately marking workpieces. It is used to cut a visible line, which can then be used to guide a hand saw, chisel or plane when making woodworking joints and other operations.

What is a sliding bevel used for?

A sliding T bevel, also known as a bevel gauge or false square is an adjustable gauge for setting and transferring angles. Different from the square, which is fixed and can only set a 90° angle, the sliding T bevel can set any angle and transfer it on another piece.

Article first time published on

What is sliding T level?

A sliding T-bevel is an instrument that is used for both laying out and transferring angles. These tools are pivotal for many different kinds of construction jobs, especially for those in which the ideal 90° angles are not possible.

Why is a carpenter square called a square?

Other namesFraming square Carpenter’s squareUsed withCarpenter’s pencil Plumb bob

What is the accuracy of a try square?

0.002 mm per 10 mm length A try- square is a woodworking tool used for marking and measuring a square piece of wood.

What tool cuts curves in wood?

The first tool that comes to mind for cutting curves is a jigsaw, but if the curve is gradual, try a circular saw instead. It’s surprisingly quick and easy to cut a smooth curve with a circular saw.

What is the use of metal jack plane?

A jack plane is a general-purpose woodworking bench plane, used for dressing timber down to size in preparation for truing and/or edge jointing. It is usually the first plane used on rough stock, but for rougher work it can be preceded by the scrub plane.

Which file is used in carpentry shop?

A rasp is coarse form of file used for coarsely shaping wood or other material. Typically a hand tool, it consists of a generally tapered rectangular, round, or half-round sectioned bar of case hardened steel with distinct, individually cut teeth.

Which figures are squares?

A square can also be defined as a parallelogram with equal diagonals that bisect the angles. If a figure is both a rectangle (right angles) and a rhombus (equal edge lengths), then it is a square.

What is the best square?

RatingProductBest OverallJohnson Level & Tool RAS-1 Rafter Angle SquareCHECK PRICEBest ValueSwanson Tool S0101 7-inch Speed SquareCHECK PRICEPremium ChoiceDEWALT DWHT46031 Aluminum Rafter SquareCHECK PRICEVINCA ARLS-12 Aluminum Rafter Carpenter SquareCHECK PRICE

How is a square used?

square, in measurement, device consisting of two straightedges set at right angles to each other. It is used by carpenters and machinists for checking the correctness of right angles, as a guide when drawing lines on materials before cutting, or for locating holes.

How do you know if engineers square is accurate?

1. Step 1 – Check wooden board. …
2. Step 2 – Place square against wooden board. …
3. Step 3 – Mark outside edge of blade. …
4. Step 4 – Flip engineer’s square over. …
5. Step 5 – Bring edge to meet mark. …
6. Step 6 – Make mark at tip of blade. …
7. Step 7 – Check marks for alignment. …
8. Step 8 – Repeat with inside edge of blade.

How do you check for square woodworking?

Once nailed up, to check the structure is square simply measure from corner to corner. If the measurements aren’t the same, pull the long corner towards the middle of the structure until they even out. Once identical, the framework is perfectly squared.

Why is my frame not square?

Your deck frame is not square. … You can still have your diagonals equal in length and yet not be square. This would result in a quadrilateral but not a rectangle. Measure the length of the two shorter sides and and then compare them with your two longer lengths.

What is the 3 4 5 triangle method?

The 3:4:5 triangle is the best way I know to determine with absolutely certainty that an angle is 90 degrees. This rule says that if one side of a triangle measures 3 and the adjacent side measures 4, then the diagonal between those two points must measure 5 in order for it to be a right triangle.

How do you check a square 345?

Using the 3-4-5 Rule. Understand the 3-4-5 method. If a triangle has sides measuring 3, 4, and 5 feet (or any other unit), it must be a right triangle with a 90º angle between the short sides. If you can “find” this triangle in your corner, you know the corner is square.

What is a firmer chisel?

Firmer chisel. has a blade with a thick rectangular cross section, making them stronger for use on tougher and heavier work. Bevel edge chisel. can get into acute angles with its bevelled edges.

What are holding tools?

A manufacturing holding tool, also known as a fixture, is a support device often used in the manufacturing industry to securely position a tool in a specific spot or orientation.

What is the difference between marking gauge and marking knife?

Answer: Answer: a cutting gauge is a marking gauge with a knife instead of a pin. Basically, the theory behind this distinction is that cutting across grain with a knife is better than using a pin. … A panel gauge’s major use is in scribing boards to the correct width.

How much does a Mitre saw cost?

A basic compound miter saw starts at $100, while miter saws with sliding blades start at $125. Dual-bevel miter saws start at $200, and professional-level miter saws with special features can cost as much as $800.

Is a try square and angle measuring instrument?

Explanation: A try- square is a woodworking tool used for marking and measuring a square piece of wood. … Try square is used to check right angle, not to measure.

What is a box Square in carpentry?

Box Square Also known as a Key Seat Rule because of its use in marking out Keyways on round shafts, for general use this can be simply a length of bright steel angle section of a suitable size. A cylinder is laid inside the angle such that lines can be drawn along its length and parallel to its axis.

What is wood chisel?

Noun. 1. wood chisel – a chisel for working wood; it is either struck with a mallet or pushed by hand. chisel – an edge tool with a flat steel blade with a cutting edge.
