A roof truss can span up to 80′ without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40′ are the most common in today’s homes.

Are trusses 2x4 or 2x6?

Trusses only use 2×4 lumber and are constructed using a “web” of 2x4s for strength. Rafters simply rely on a center ridge beam and the outside walls for support. While there are benefits to both, only rafters vary in the size of lumber that is used.

What is a standard truss pitch?

Conventional Pitch Roofs: Anything between 25 degrees and 47.5 degrees would be considered a conventional pitch truss. These are the easiest to construct and maintain. • High Pitched Roofs: Over 47.5 degrees would be considered a high pitched roof. Higher pitched roofs often need specialist tiles and fitting methods.

What sizes are roof trusses?

Standard trusses can be designed up to 11 metres in 35mm timber, and 15 metres in 47mm timber. Spans in excess of these can be designed but are often supplied as multiple trusses fixed together.

How much weight can a 2x4 truss hold?

The maximum weight capacity of a 2×4 stud is about 25,000 pounds to 30,000 pounds.

What size of wood is used for roof trusses?

Trusses for common structures like houses, carports, and gazebos are most often constructed using 2 in (5.1 cm) x 4 in (10 cm) wooden boards.

Is it cheaper to build or buy trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof.

What is the standard roof pitch for a house?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes. Roofs with a pitch exceeding 9/12 are called steep slope roofs.

What are the different types of roof trusses?

• Gable Trusses. A variety of the trusses shown above fit into the common or gable truss category, including the King Post, Queen Post, Howe, and Double Howe trusses. …
• Hip Truss. …

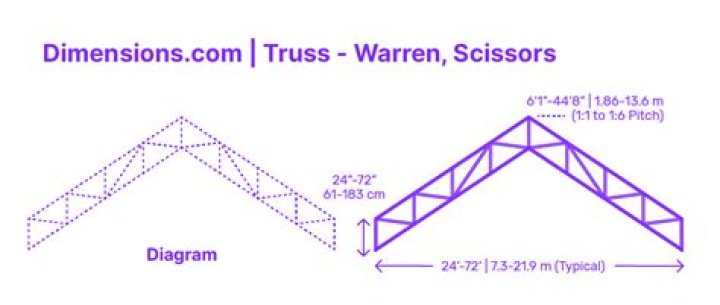

• Scissor Roof Truss. …
• Attic Truss. …
• Mono Truss. …
• North Light Roof Truss. …
• Flat Truss. …
• Gambrel Truss.

What pitch should a porch roof be?

The minimum pitch for a roof is 1/4:12, which translates to 1/4 inch rise to 12 inches of run.

Article first time published on

What should the roof pitch be for a shed?

Roof Pitch One thing you never want to do when designing your roof is build one with a pitch lower than 3-12. This means that for every horizontal run of 12″, you need at least 3″ of rise. When you see this detail below, it is referring to the pitch of the roof.

What type of wood is used for roof trusses?

Answer: Yes, species combinations like Hem-Fir and Spruce-Pine-Fir are used regularly in truss manufacturing as well as Southern Yellow Pine and, as you mention, Doug Fir-Larch.

How far apart are roof trusses?

Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.

Can roof trusses support a floor?

The reason trusses shouldn’t hold the weight of flooring or heavy boxes is because they are typically made from relatively small boards (2×4’s in some cases) and the bottom board is already carrying a significant roof load because of the design of the angled elements.

Can I walk on the bottom chord of a truss?

The bottom chord is one of three key components to any truss. Orienting the chord material in a 4×2 manner creates a very stable truss that allows installers the ability to walk easily across members without tipping the truss while installing additional members or floor deck sheathing. …

How much weight can hang from rafters in garage?

If you have another floor above your garage, the ceiling\floor structure can usually support up to 40 lbs/SqFt (including the weight of the floor above it). If you do not have another floor above, the ceiling trusses may only be able to hang a maximum of 10 lbs/SqFt.

What is the difference between a rafter and a truss?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

Do roof trusses need support in the middle?

Generally, you don’t need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

Are trusses or rafters stronger?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

What is the average cost of a roof truss?

Roof Truss Prices For a 2,000-square-foot home, roof truss installation typically costs between $7,200 and $12,000. You’ll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each.

What is the strongest roof truss?

There is no “strongest” truss, but rather, one that is most appropriate for a specific application. There are four basic types of truss design: dropped chord, raised chord, parallel chord and scissors. Dropped chord uses a beam on two load-bearing walls and can restrict interior space.

How do you measure roof trusses?

Truss count = ((roof length * 12) / 24) + 1 The simplest form of this equation is to take the length of your roof and divide it by 2. For example, if your roof is 40-feet long, it will need a total of 20 trusses.

How far should a roof overhang?

Overhangs can vary from a few inches to a few feet depending on preference; however, the suggested width of an overhang is between 12” and 18” for eaves and no more than 8” for rakes. That said, overhangs can extend as far as 2′ without the need for external supports.

What pitch Should a roof be UK?

A typical roof pitch in the UK for a traditional house will be 40°-50° but at the extreme can go up to 70° (above 70° would actually be called a wall!) Part of the choice of pitch is down to the architect and different period homes will have different pitches which are more “aesthetically pleasing” to the designer.

What is the smallest pitch for shingles?

The short, simple answer is 2:12 has traditionally been considered the absolute minimum acceptable roof slope suitable for asphalt shingles. Asphalt shingles continue to be the most widely installed roof covering option in North America.

Do roof pitches have to match?

Unless you’re absolutely sure of the effect you’re after, avoid combining different roof pitches. More often than not, varied pitches look disorganized or, worse, like a construction error. Stick to a uniform pitch, and rely on the size and arrangement of roof masses for effect.

How much overhang should a porch roof have?

Typically, a porch overhang should be at least 12-inches long. However, they can range from two feet to very minimal in length depending on the area’s climate, so be sure to account for the amount of rainfall you might expect. Drier climates require minimal overhang length and wetter climates require longer overhangs.

What does a 2 12 roof pitch look like?

A 2/12 roof slope means your roof has 2 inches of vertical drop for every 12 inches of horizontal distance. Simply put, it’s a shallow roof. … A roof this shallow is likely to be found on a ranch house, a shed dormer or a porch.

How much slope do I need for a 8 shed roof?

What is this? A ratio is the most common way of expressing roof pitch or roof slope, but degrees are also possible. A 4:12 pitch is around 18.5 degrees, but not exactly.

What is the cheapest way to roof a shed?

In most cases, MSR roll roofing is the cheapest shed roof material you can buy. Roll roofing is also the easiest shed roof to install because you can cover large areas quickly by simply rolling it out and nailing it down.

Can I use pressure treated wood for roof rafters?

Can you use pressure-treated wood for roof rafters? – Quora. Yes you can but you don’t need to and it would significantly increase your overall price!
